Class: 2-3 T
Width: 500
Adapter: S30/180

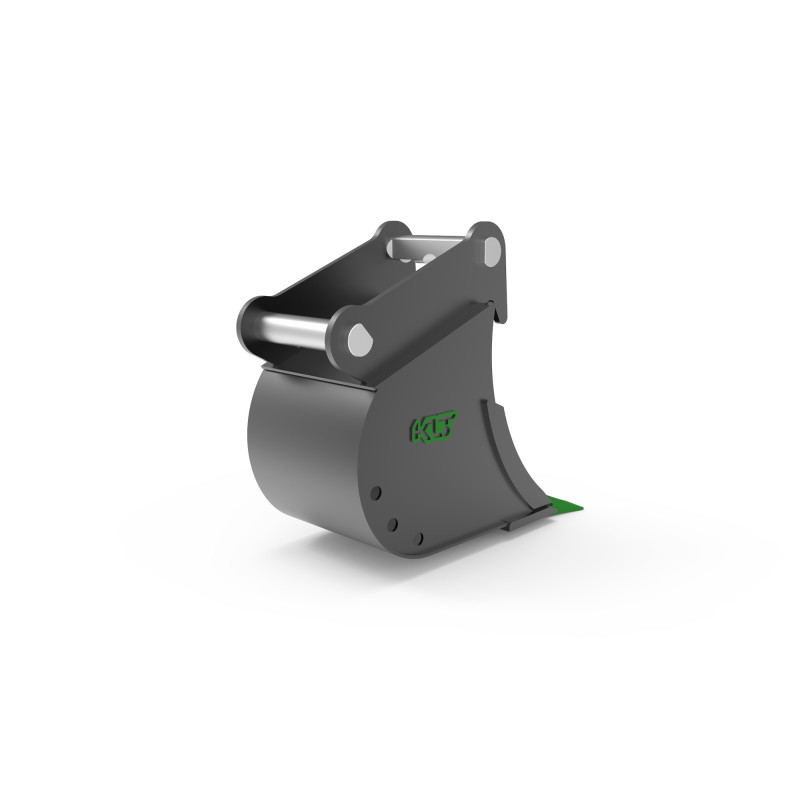

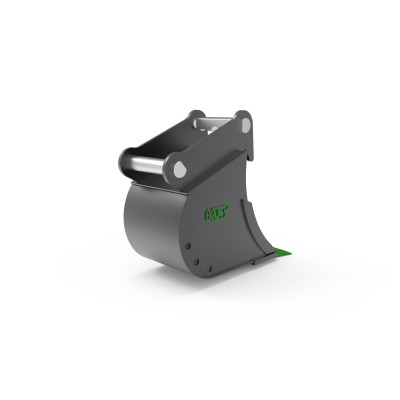

Digging bucket 500mm S30/180 class 2-3t

Name: Digging bucket 500mm S30/180 class 2-3t
Brand: Kalanto
SKU: DBS-S2-V1-500-S30/180
Price: 1649.43 PLN
Availability: InStock

1,649.43 zł

Tax included

In stock Lead time: up to 48 hours

Other models:

Width

Adapter

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	16 x 150 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
	Type
Teeth:	E11.4

DBS-S2-V1-500-S30/180 is a multi-purpose bucket suitable for most earthmoving operations performed by compact excavators. It works well in excavation, soil removal and construction preparation tasks.

Its strong structure and working capacity ensure long-lasting reliability.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S2-V1-500-S30/180

Data sheet

Lead time: up to 48 hours
For the machine: 2-3
Adapter: S30/180
Width: 500
Weight without adapter: 46
Capacity: 73
Side/rear plate: 5 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Cutting edge: 16x150 HB400
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: E11.4

Specific References

EAN13: 5908159220827
