Class: 4-6 T
Width: 300
Adapter: MS03SY

Digging bucket 300mm MS03SY without teeth class 4-6t

Digging bucket 300mm MS03SY without teeth class 4-6t

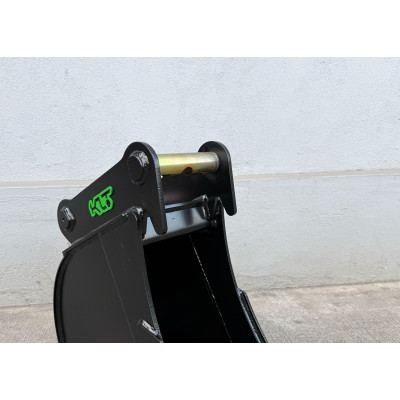

Name: Digging bucket 300mm MS03SY without teeth class 4-6t
Brand: Kalanto
SKU: DBS-S4-V1-300-MS03SY-WOT
Price: 1949.55 PLN
Availability: InStock

1,949.55 zł

Tax included

In stock Lead time: up to 48 hours

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Front side plate:	10 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	20x150 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	5 mm	S355
Roll sheet reinforcement:	5 mm	HB400

The DBS-S4-V1-300-MS03SY-WOT model is an exceptionally durable digging bucket designed for excavators weighing from 4 to 6 tons. Created for demanding working conditions, it performs excellently during deep excavations, foundation works, installation tasks and all types of earthmoving operations in road, residential and industrial construction. DBS-S4 combines large working capacity with precise control, providing efficient and comfortable operation.

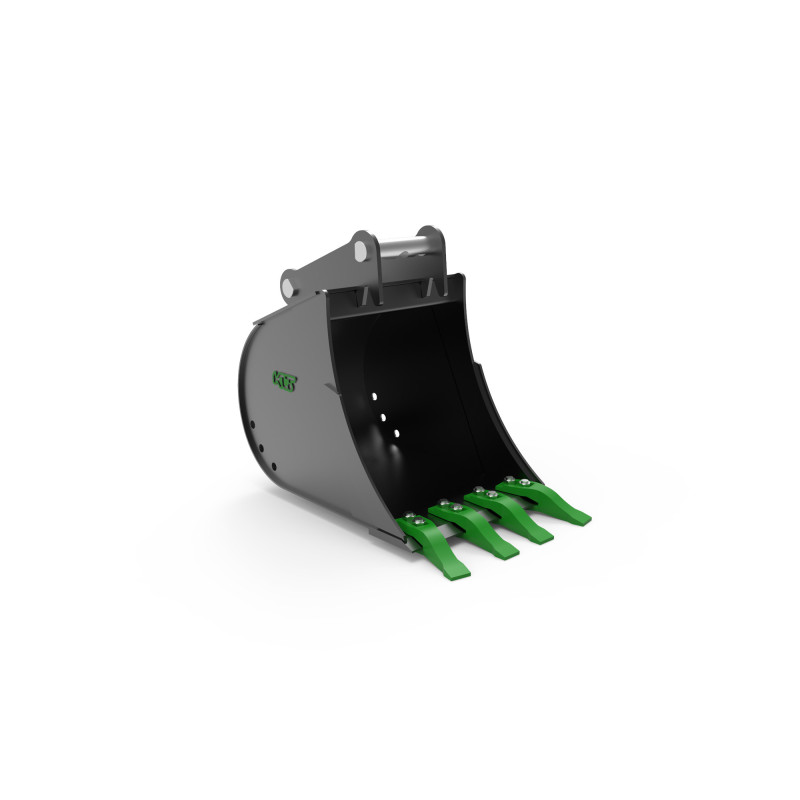

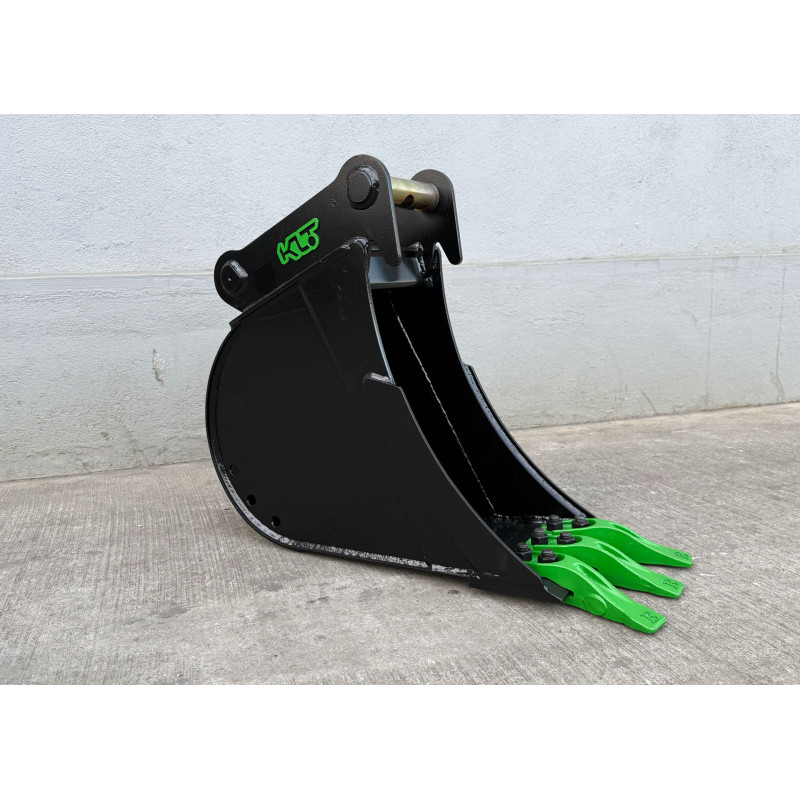

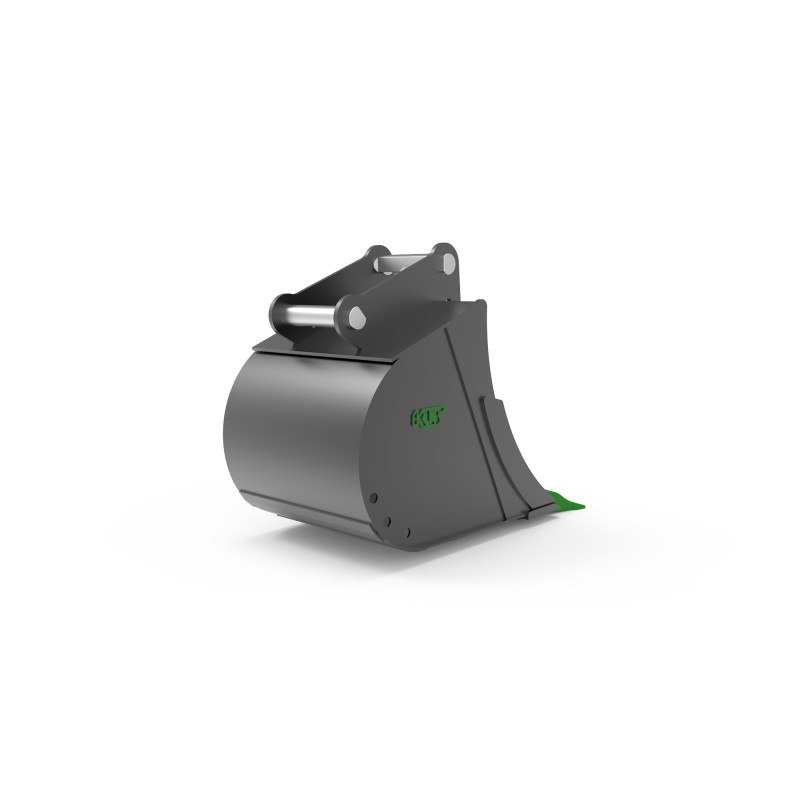

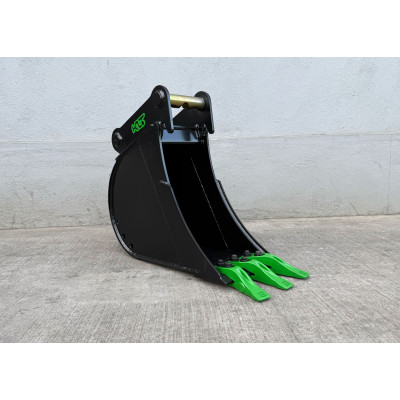

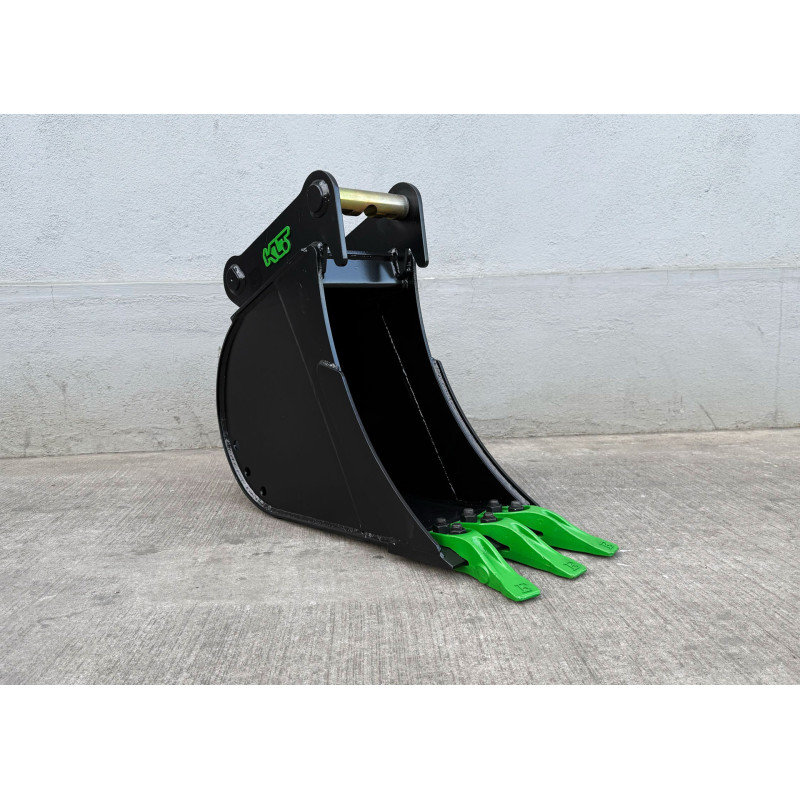

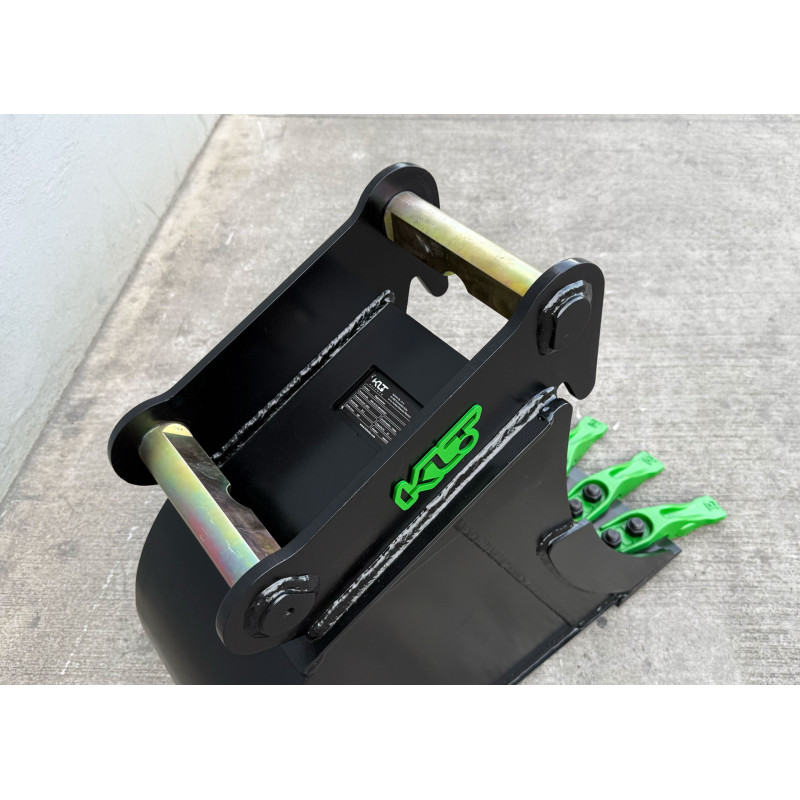

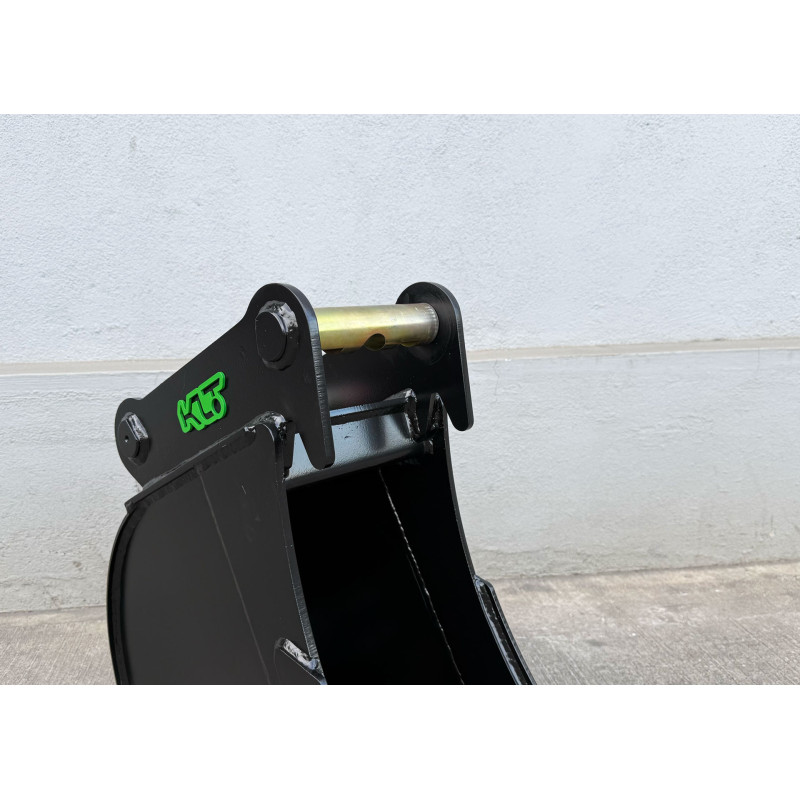

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S4-V1-300-MS03SY-WOT

Data sheet

Lead time: up to 48 hours
For the machine: 4-5
5-6
Adapter: MS03SY
Width: 300
Weight without adapter: 62
Capacity: 68
Side/rear plate: 5 S355
Front side plate: 10 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Rear wear strips: 5 HB400
Cutting edge: 20x150 HB400
Top plate: 8 S355
Bend plate: 5 S355
