Class: 2-3 T
Width: 700
Adapter: S40

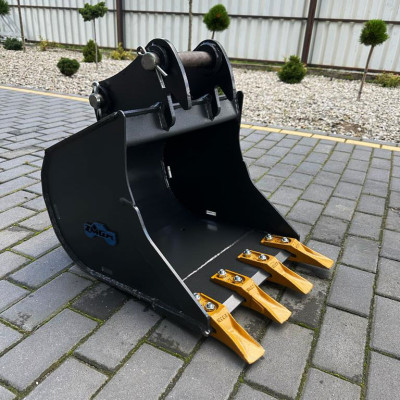

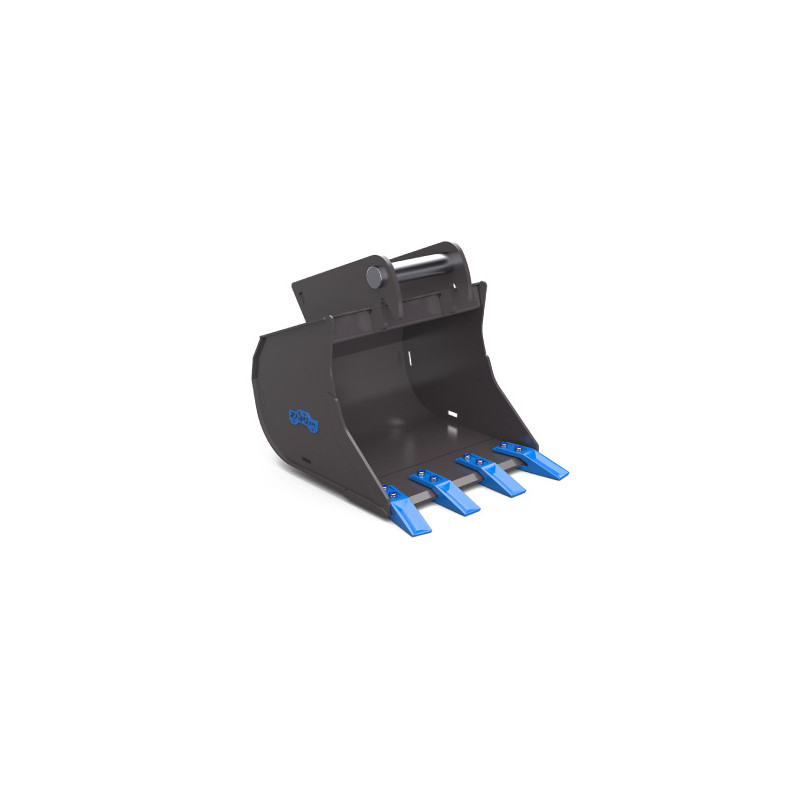

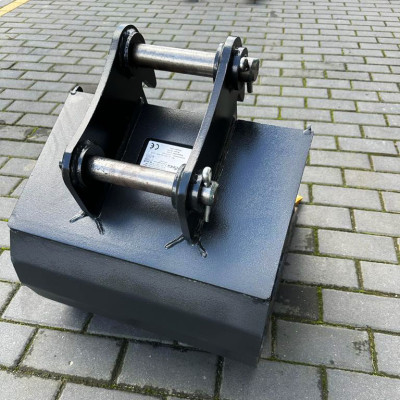

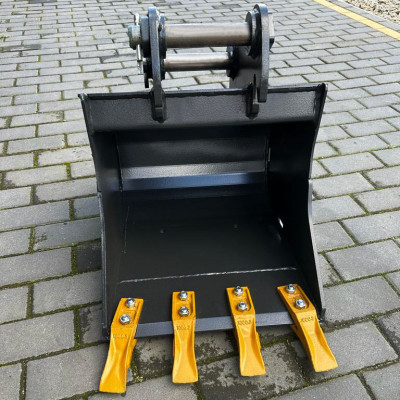

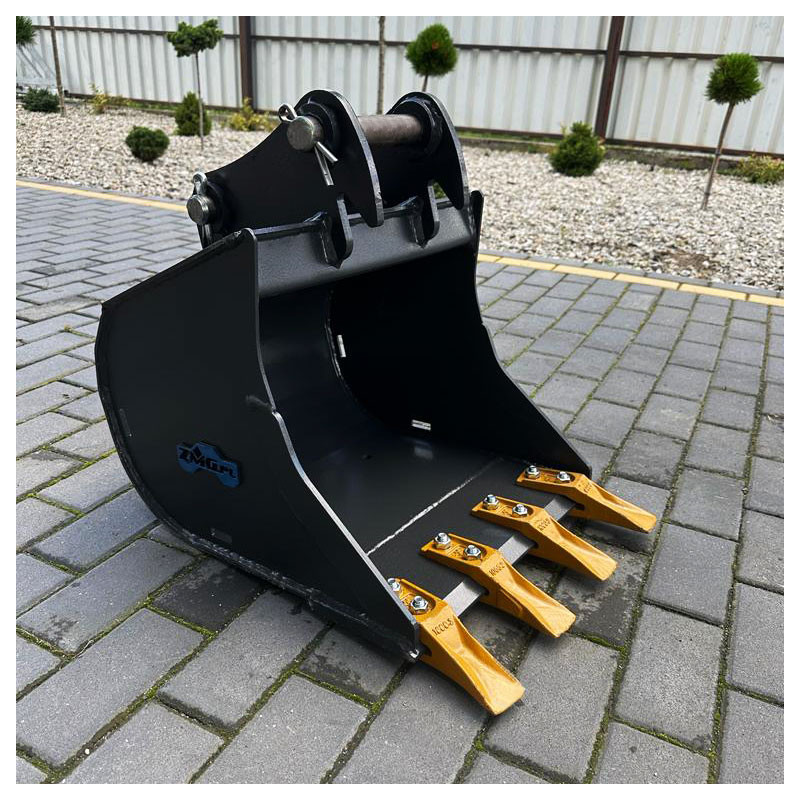

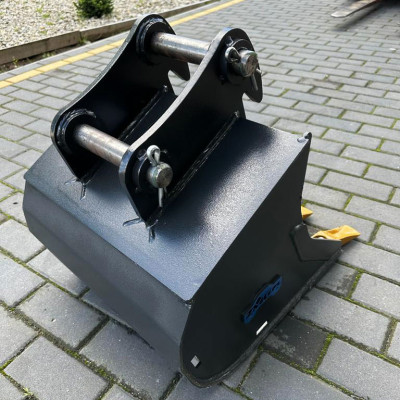

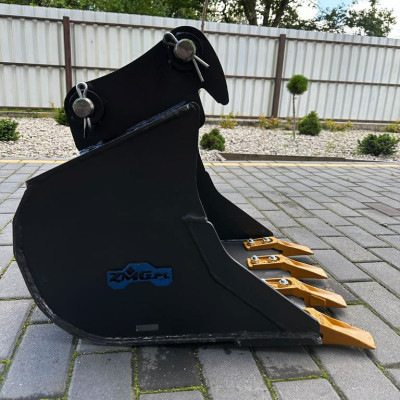

Digging bucket 700mm S40 class 2-3t

Name: Digging bucket 700mm S40 class 2-3t
Brand: ZMG
SKU: LK-ZMG2-700-S40
Price: 2110.68 PLN
Availability: InStock

2,110.68 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

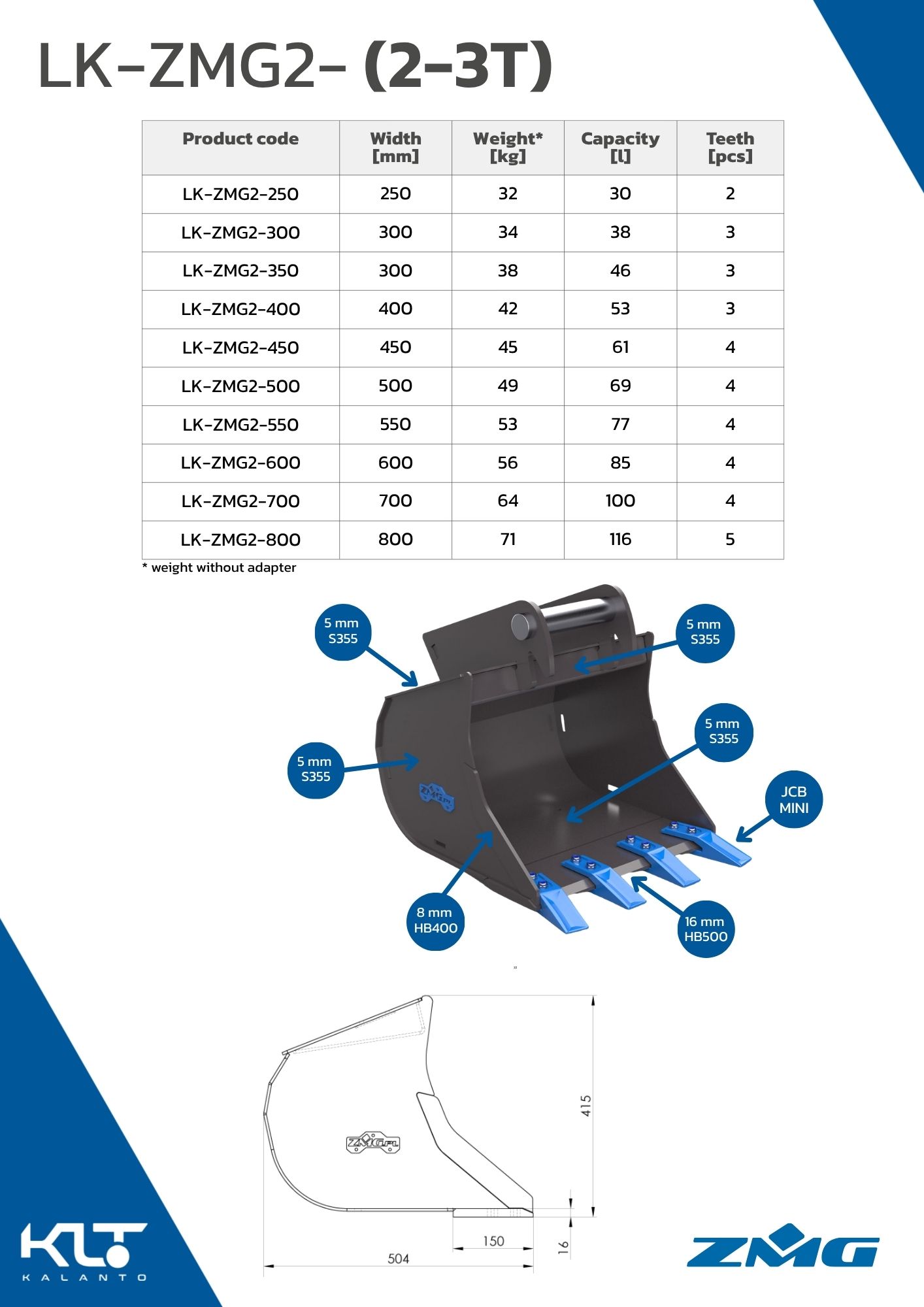

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
250	32	30	2
300	34	38	3
350	38	46	3
400	42	53	3
450	45	61	4
500	49	69	4
550	53	77	4
600	56	85	4
700	64	100	4
800	71	116	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355

	Type
Teeth:	JCB Mini

Alternative products with a different lead time:

up to 6 business weeks Solid Hitch 5,257.27 zł

Model LK-ZMG2-700-S40 is a professional 700 mm digging bucket intended for small excavators in the 2–3 t class. It excels in excavation work, soil removal, trenching, and all types of civil engineering operations on construction sites. The S40 adapter guarantees compatibility with machines equipped with the popular S40 standard, facilitating integration into existing machine fleets. Robust build and carefully selected materials make the bucket resistant to mechanical damage, maintaining geometry throughout the product's lifetime.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG2

Reference LK-ZMG2-700-S40

Data sheet

Lead time: up to 3 business weeks
For the machine: 2-3
Adapter: S40
Width: 700
Weight without adapter: 64
Capacity: 100
Side/rear plate: 5 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: JCB Mini
