- Class: 4-6 T
- Width: 300
- Adapter: CW10
Reference: AD-WOP-CW10
The AD-WOP-CW10 is a base-plate-free design fully compatible with the Verachtert CW10 standard. It ensures quick and secure connection of work tools and maintains durability even under intensive use. A practical option for operators who prefer a lighter and more flexible setup.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] |
Pin spacing [mm] |
|
|---|---|---|---|
| CW05 | 40 | 180 | 200 |
| CW10 | 50 | 320 | 300 |
| CW20/30/40 | 60 | 560 | 475 |
The main components are made of the following materials and thicknesses:
| CW05 | CW10 | CW20/30/40 | ||||
| Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 20mm | S355 | 20mm | S355 | 35mm | HB400 |
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
|---|---|---|---|
| 300 | 64 | 65 | 3 |
| 350 | 69 | 80 | 3 |
| 400 | 74 | 94 | 3 |
| 450 | 80 | 110 | 4 |
| 500 | 85 | 125 | 4 |
| 600 | 96 | 157 | 4 |
| 700 | 107 | 189 | 5 |
| 800 | 118 | 221 | 5 |
| 900 | 129 | 253 | 5 |
| 1000 | 139 | 285 | 5 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 20 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Roll sheet reinforcement: | 5 mm | S355 |
| Type | ||
| Teeth: | JCB |

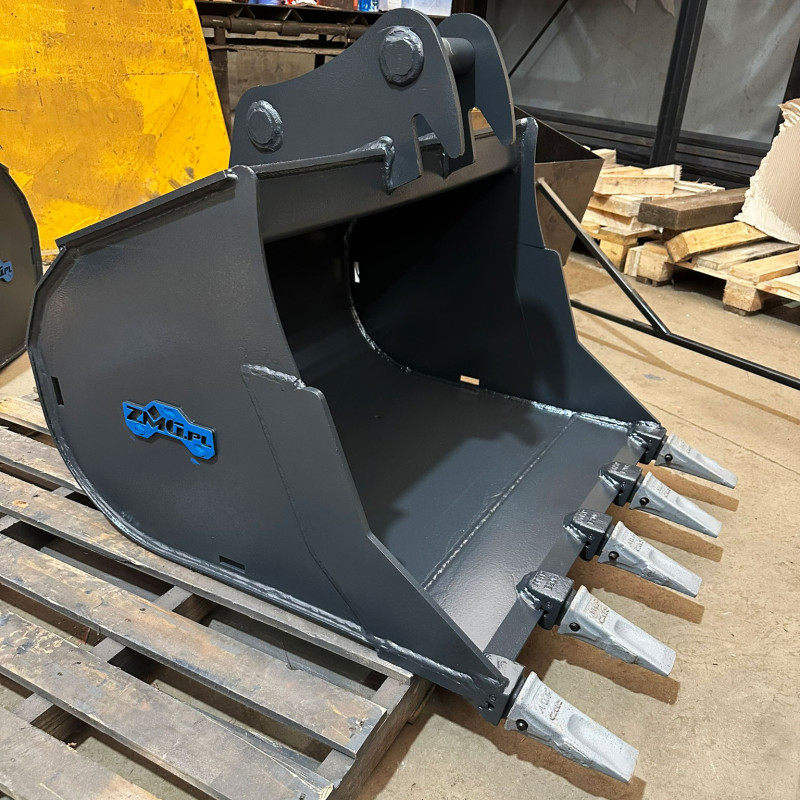

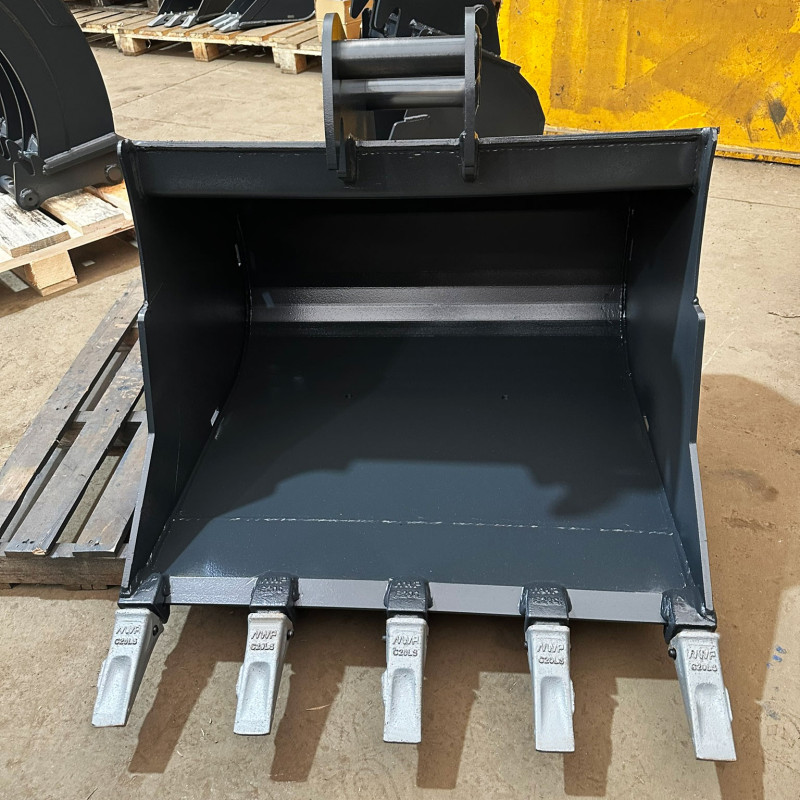

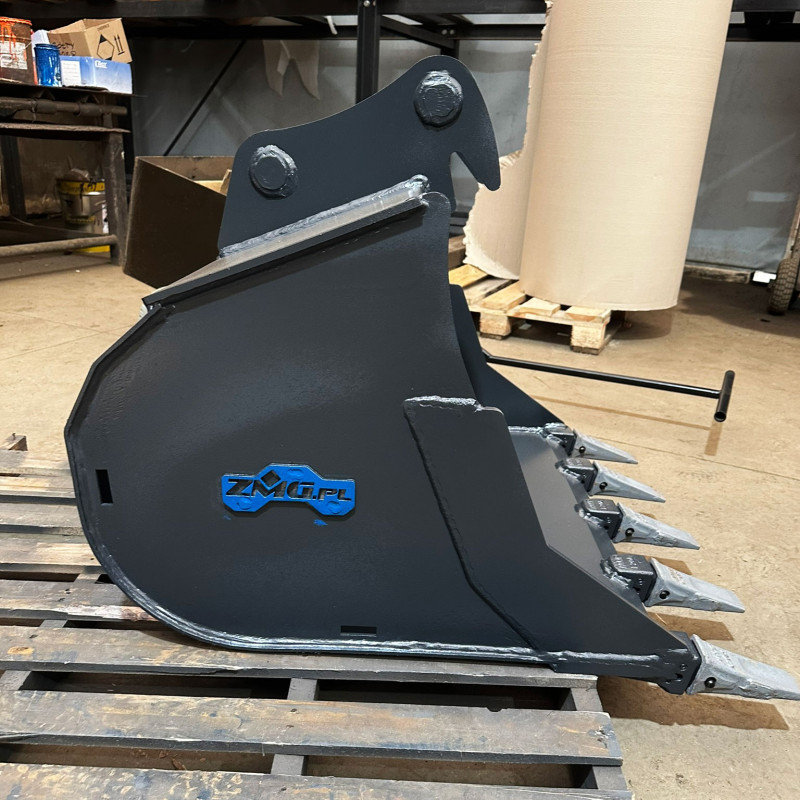

The LK-ZMG3-300-CW10 digging bucket, 300 mm wide, was developed specifically for medium-class excavators of 4–6 t. Its design allows efficient foundation trenching, earthmoving, and underground utility installation work. The Verachtert CW10 quick coupler system, designed for heavier applications, provides reliable and stable attachment-to-machine connection. High-grade S355 steel construction and precision welds ensure long bucket life even under intensive operating conditions.

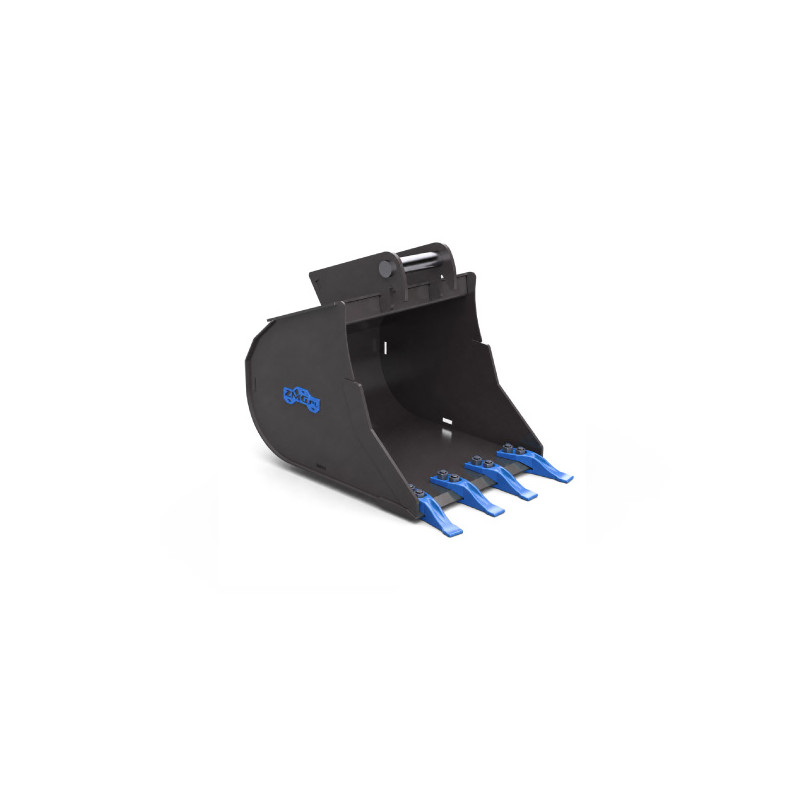

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Data sheet
