  • Class: 6-9 T
  • Width: 800
  • Adapter: Without adapter
Skeleton bucket 800mm without adapter class 6-9t
Skeleton bucket 800mm without adapter class 6-9t
Skeleton bucket 800mm without adapter class 6-9t
Skeleton bucket 800mm without adapter class 6-9t
Skeleton bucket 800mm without adapter class 6-9t
Skeleton bucket 800mm without adapter class 6-9t
Skeleton bucket 800mm without adapter class 6-9t
Skeleton bucket 800mm without adapter class 6-9t
Skeleton bucket 800mm without adapter class 6-9t
Skeleton bucket 800mm without adapter class 6-9t
    Skeleton bucket 800mm without adapter class 6-9t
    Skeleton bucket 800mm without adapter class 6-9t
    Skeleton bucket 800mm without adapter class 6-9t
    Skeleton bucket 800mm without adapter class 6-9t
    Skeleton bucket 800mm without adapter class 6-9t
    Skeleton bucket 800mm without adapter class 6-9t
    Skeleton bucket 800mm without adapter class 6-9t
    Skeleton bucket 800mm without adapter class 6-9t
    Skeleton bucket 800mm without adapter class 6-9t
    Skeleton bucket 800mm without adapter class 6-9t

Skeleton bucket 800mm without adapter class 6-9t

4,872.03 zł
Tax included
In stock Lead time: up to 48 hours

Other models:

Width
Adapter

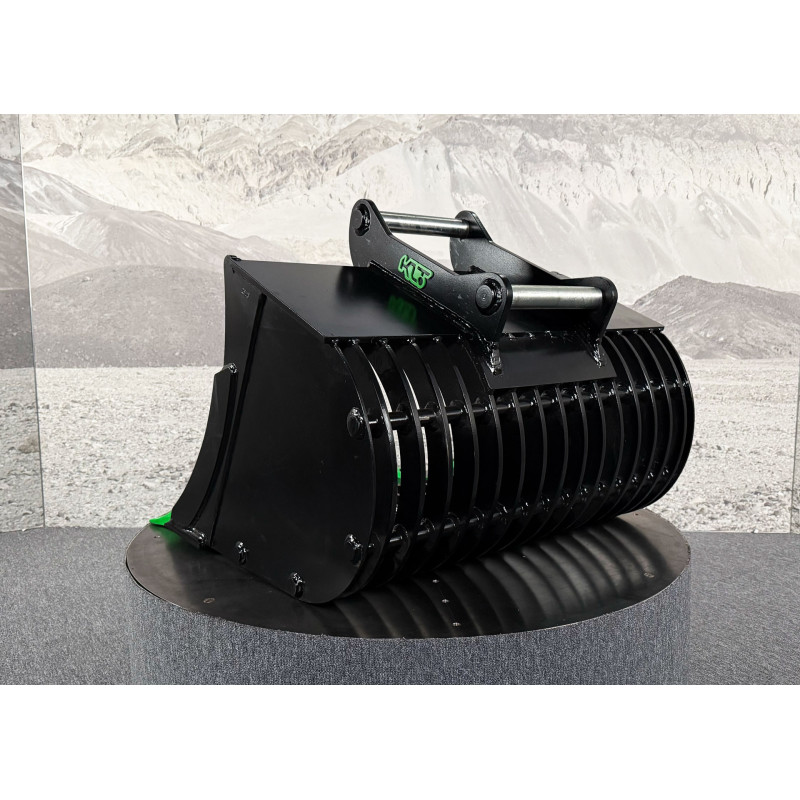

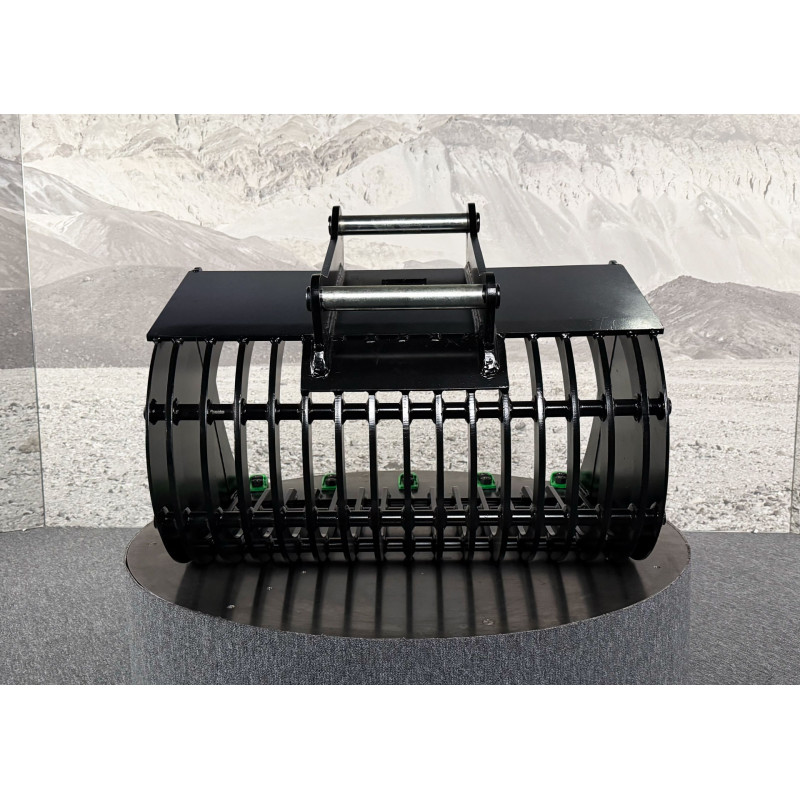

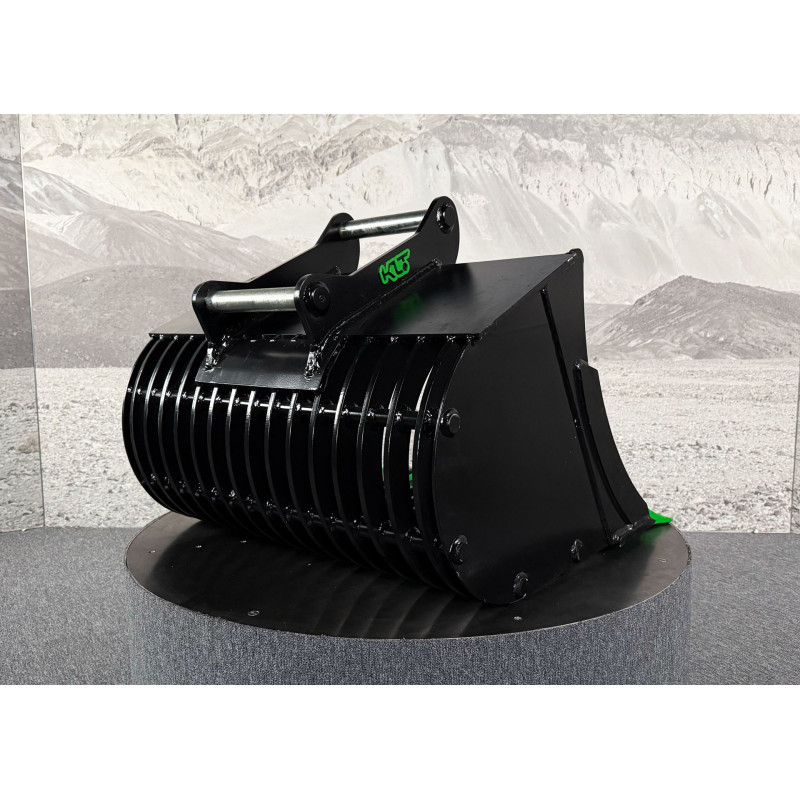

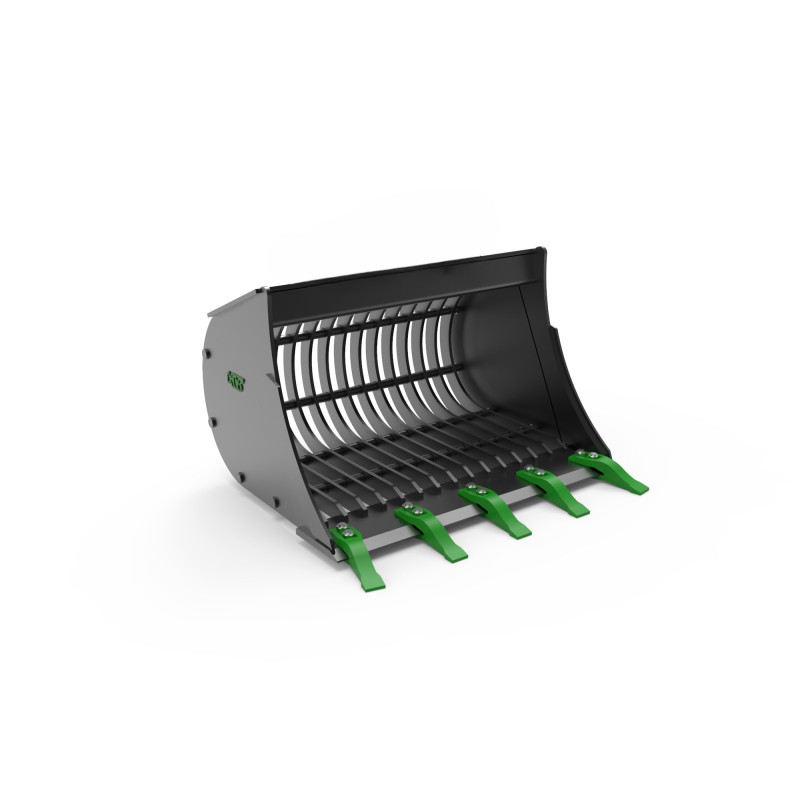

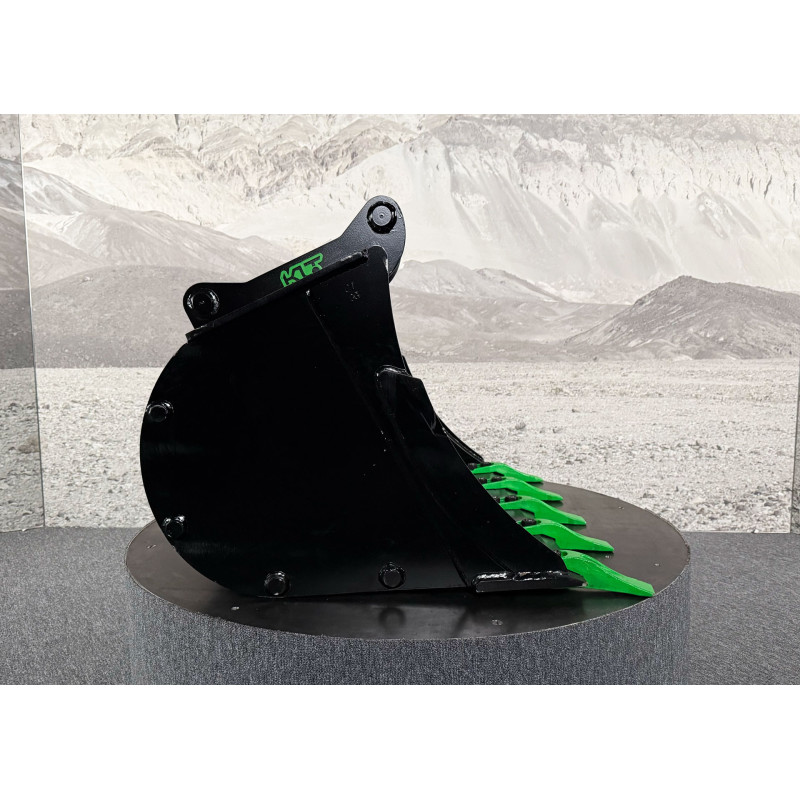

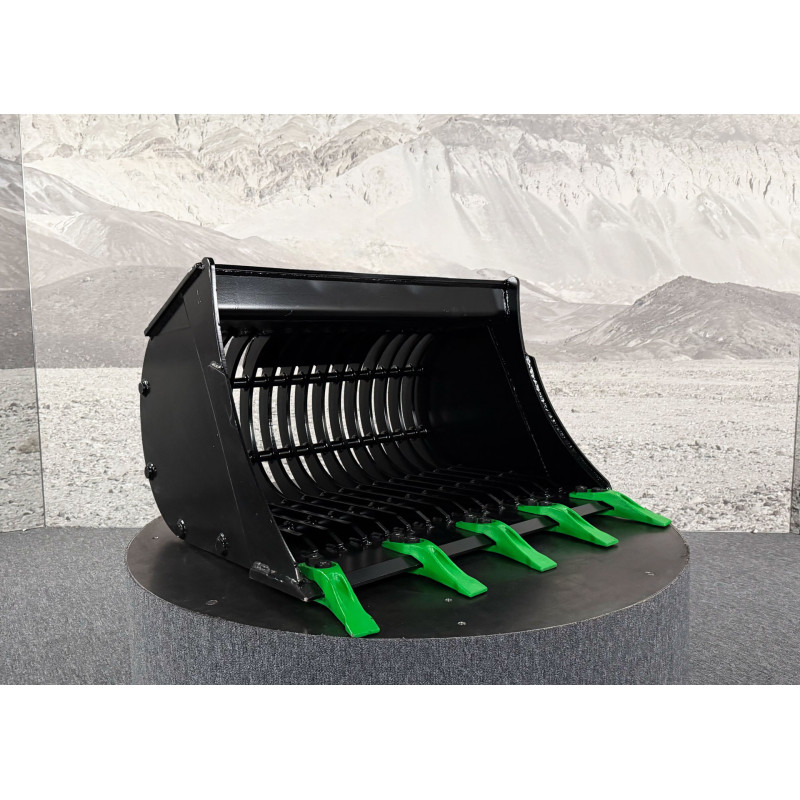

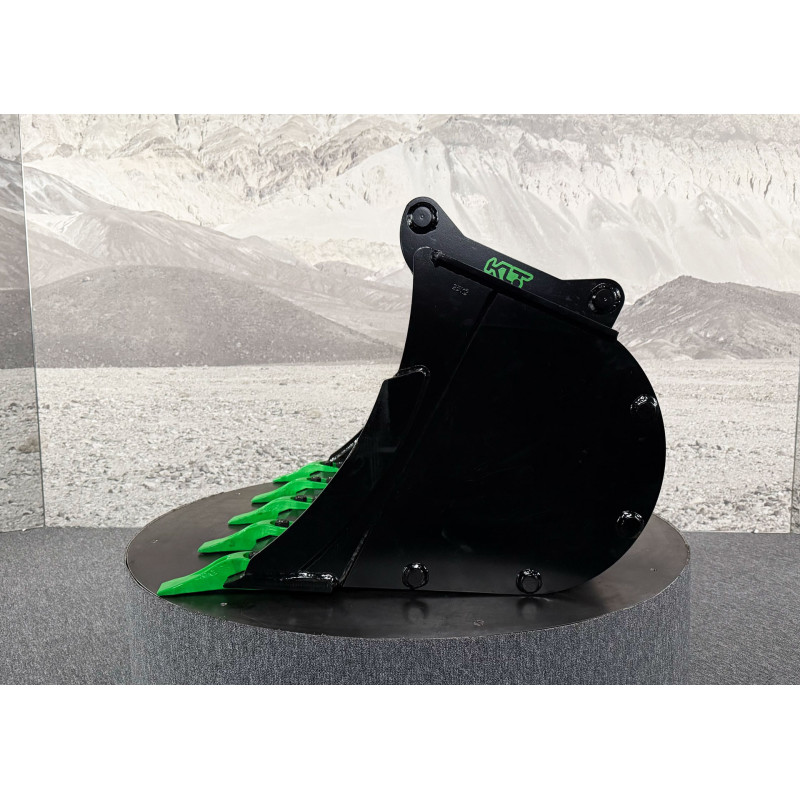

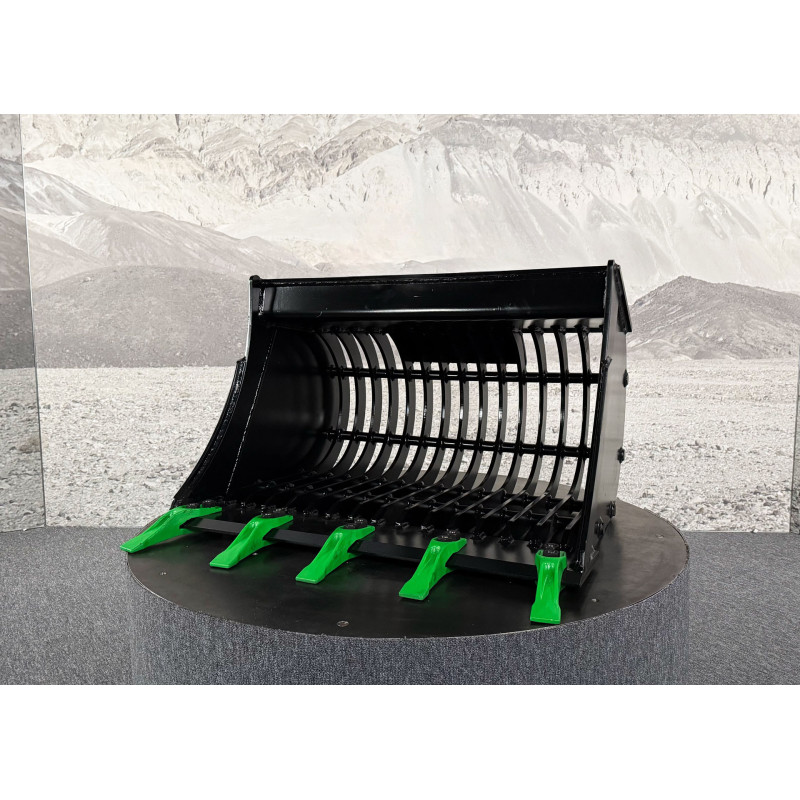

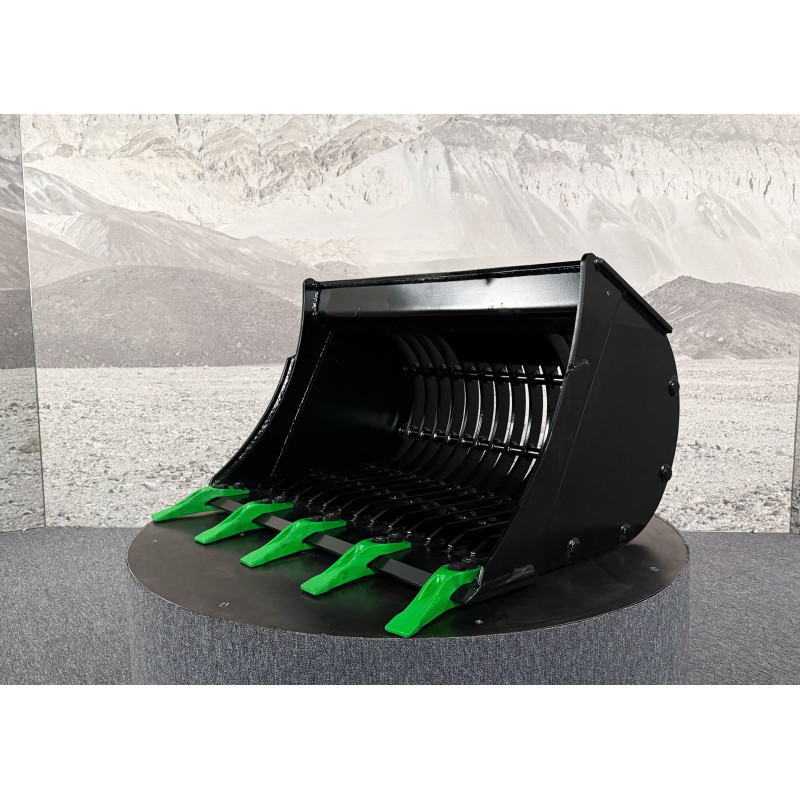

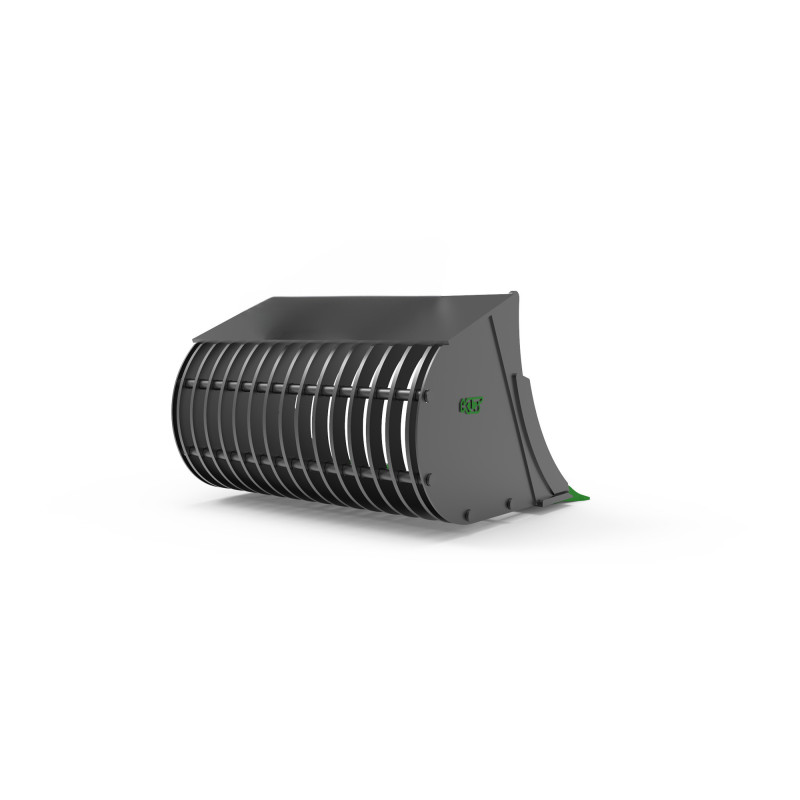

The SBS-S5-V1-800-WOA model is a robust skeleton bucket designed for 6–9-ton excavators and intended for demanding work environments. Its solid ribbed body enables efficient screening, material cleaning and separation without requiring additional sorting equipment. With high wear resistance, reinforced structural points and well-balanced geometry, the SBS-S5 ensures excellent reliability and comfortable operation during earthmoving, cleanup and sorting applications.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
Quantity
Add to wishlist

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

SBS-S5-V1-800-WOA

Data sheet

Lead time
up to 48 hours
For the machine
6-7
7-8
8-9
Adapter
Without adapter
Width
800
Weight without adapter
195
Capacity
246,9
Side/rear plate
6 S355
Front side plate
12 S355
Side cutters
8 HB400
Ribs
12 S355
Rib spacing
45
Cutting edge
20x200 HB400
Top plate
12 S355
Bend plate
10 S355
Number of teeth
5
Type of teeth
E25

Specific References

EAN13
5908159221985
