Skeleton bucket 800mm S30/180 class 2-3t
2,645.73 zł
Tax included
The SBS-S2-V1-800-S30/180 is a durable and functional skeleton screening bucket intended for machines weighing between 2 and 3 tons. Its ribbed bottom enables efficient separation of soil from larger materials, making it an invaluable tool for sorting excavated material, removing rubble, or screening organic matter. Thanks to its sturdy construction and the use of wear-resistant steels, the bucket offers high durability while maintaining low weight. It is an excellent choice for gardening, cleanup operations, and light construction applications.
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 600 | 61 | 82,1 | 4 |
| 800 | 79 | 113,8 | 5 |

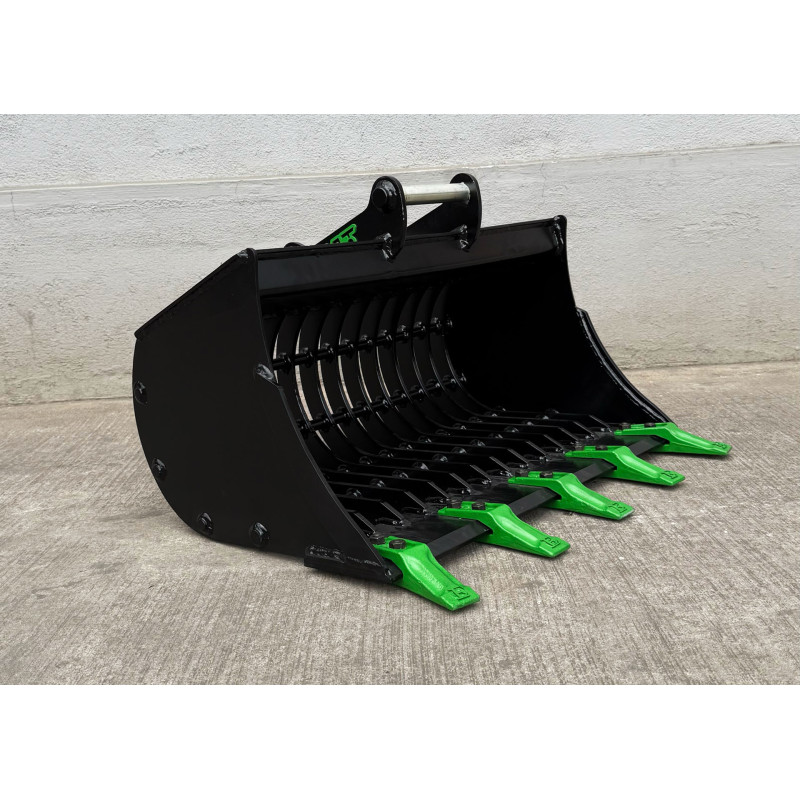

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Ribs: | 8 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Rib spacing: | 45mm | - |
| Type | ||
| Teeth: | E11.4 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
SBS-S2-V1-800-S30/180
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 2-3t
- Adapter
- S30/180
- Width
- 800mm
- Weight without adapter
- 79kg
- Capacity
- 113,8 l
- Side/rear plate
- 5mm S355
- Side cutters
- 8mm HB400
- Ribs
- 8mm S355
- Rib spacing
- 45mm
- Cutting edge
- 16x150mm HB400
- Top plate
- 5mm S355
- Bend plate
- 5mm S355
- Number of teeth
- 5pcs
- Type of teeth
- E11.4
