Class: 6-9 T
Width: 800
Adapter: MS08

Digging bucket 800mm MS08 class 6-8t

Digging bucket 800mm MS08 class 6-8t

Digging bucket 800mm MS08 class 6-8t

Digging bucket 800mm MS08 class 6-8t

Digging bucket 800mm MS08 class 6-8t

4,030.71 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
350	76	100	3
400	82	118	3
450	89	136	4
500	95	155	4
600	108	193	4
700	121	231	5
800	134	269	5
900	147	307	5
1000	160	345	6
1100	173	384	6

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	6 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	12 mm	HB400
Top plate:	12 mm	S355
Bend plate:	8 mm	S355
Roll sheet reinforcement:	5 mm	S355

	Type
Teeth:	JCB

The LK-ZMG4-800-MS08 digging bucket with a working width of 800 mm is a sturdy tool designed for excavators in the 6–8 t class. It is perfectly suited for foundation excavation, earthmoving, and general construction tasks requiring both precision and efficiency. The Lehnhoff MS08 quick coupler is designed for heavy machines, ensuring secure attachment and rapid tool changes on demanding job sites. Robust build and carefully selected materials make the bucket resistant to mechanical damage, maintaining geometry throughout the product's lifetime.

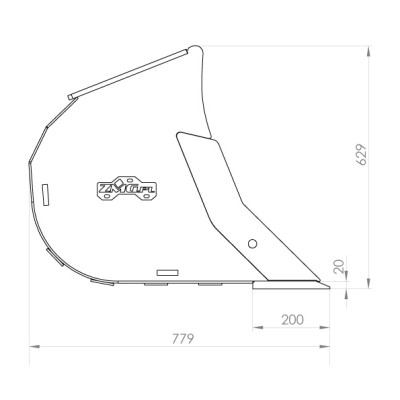

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG4

Reference LK-ZMG4-800-MS08

Data sheet

Lead time: up to 3 business weeks
For the machine: 6-7
7-8
Adapter: MS08
Width: 800
Weight without adapter: 134
Capacity: 269
Side/rear plate: 6 S355
Side cutters: 12 HB400
Roll sheet: 5 S355
Rear wear strips: 5 S355
Cutting edge: 20 HB500
Top plate: 12 S355
Bend plate: 8 S355
Number of teeth: 5
Type of teeth: JCB
