Class: 4-6 T
Width: 700
Adapter: Without adapter

Digging bucket 700mm without adapter class 4-6t

Digging bucket 700mm without adapter class 4-6t

Digging bucket 700mm without adapter class 4-6t

Digging bucket 700mm without adapter class 4-6t

Digging bucket 700mm without adapter class 4-6t

Digging bucket 700mm without adapter class 4-6t

Digging bucket 700mm without adapter class 4-6t

Digging bucket 700mm without adapter class 4-6t

Digging bucket 700mm without adapter class 4-6t

Digging bucket 700mm without adapter class 4-6t

Digging bucket 700mm without adapter class 4-6t

Digging bucket 700mm without adapter class 4-6t

Digging bucket 700mm without adapter class 4-6t

2,819.16 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
300	64	65	3
350	69	80	3
400	74	94	3
450	80	110	4
500	85	125	4
600	96	157	4
700	107	189	5
800	118	221	5
900	129	253	5
1000	139	285	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	5 mm	S355
Roll sheet reinforcement:	5 mm	S355

	Type
Teeth:	JCB

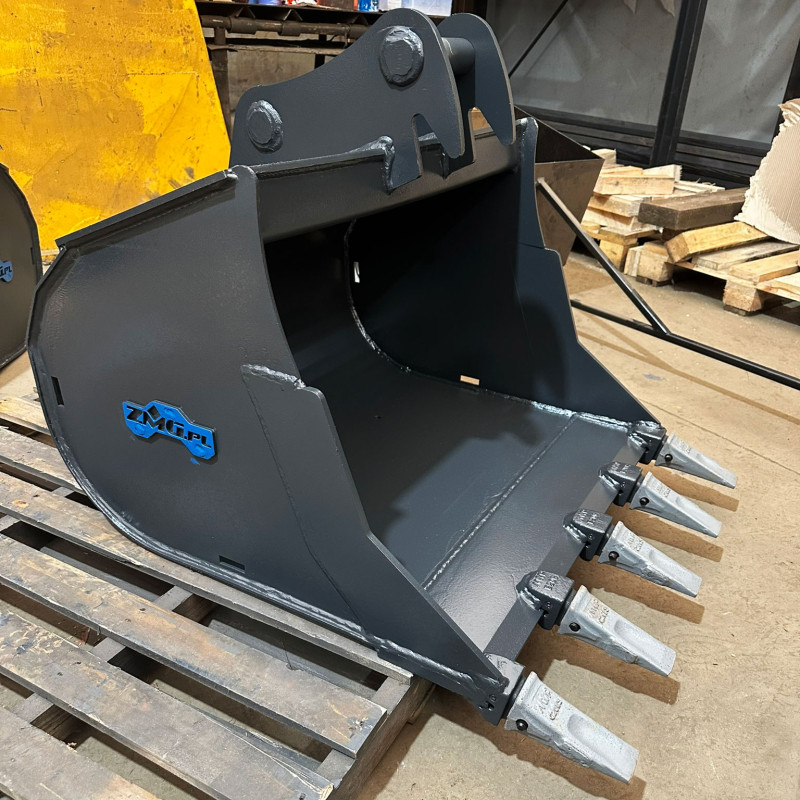

The LK-ZMG3-700-WOA digging bucket, 700 mm wide, was developed specifically for medium-class excavators of 4–6 t. Its design allows efficient foundation trenching, earthmoving, and underground utility installation work. The adapterless version is designed for direct mounting on the excavator arm, eliminating intermediate components and reducing total attachment weight. Robust build and carefully selected materials make the bucket resistant to mechanical damage, maintaining geometry throughout the product's lifetime.

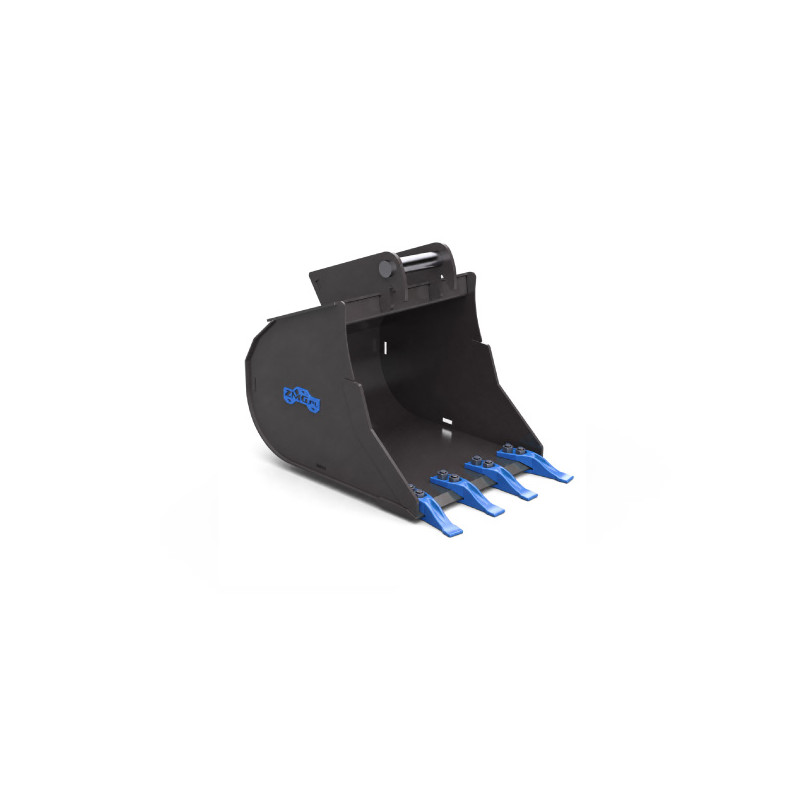

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG3

Reference LK-ZMG3-700-WOA

Data sheet

Lead time: up to 3 business weeks
For the machine: 4-5
5-6
Adapter: Without adapter
Width: 700
Weight without adapter: 107
Capacity: 189
Side/rear plate: 5 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Rear wear strips: 5 S355
Cutting edge: 20 HB500
Top plate: 8 S355
Bend plate: 5 S355
Number of teeth: 5
Type of teeth: JCB
