Class: 8-11 T
Width: 1100
Adapter: CW10

Digging bucket 1100mm CW10 class 8-11t

Name: Digging bucket 1100mm CW10 class 8-11t
Brand: ZMG
SKU: LK-ZMG5-1100-CW10
Price: 6226.26 PLN
Availability: InStock

6,226.26 zł Tax included

In stock Lead time up to 3 business weeks

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Verachtert system- CW10 without base plate

Reference: AD-WOP-CW10

The AD-WOP-CW10 is a base-plate-free design fully compatible with the Verachtert CW10 standard. It ensures quick and secure connection of work tools and maintains durability even under intensive use. A practical option for operators who prefer a lighter and more flexible setup.

*The image is for illustrative purposes only. The order refers to the product described in the offer.

Lead time: up to 48 hours
For the machine: 4-5, 5-6, 6-7, 7-8, 8-9, 9-10, 10-11
Adapter: CW10
Side plate: 20 S355
Pin diameter: 50
Inner width: 320
Pin spacing: 560
Weight: 16

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
CW05	40	180	200
CW10	50	320	300
CW20/30/40	60	560	475

Parameters

The main components are made of the following materials and thicknesses:

	CW05		CW10		CW20/30/40
	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	20mm	S355	20mm	S355	35mm	HB400

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
400	124	143	3
500	142	190	3
600	159	240	4
700	177	292	4
800	194	344	4
900	212	397	5
1000	230	450	5
1100	247	502	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	8 mm	S355
Front side plate:	12 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	20 mm	HB500
Top plate:	12 mm	S355
Bend plate:	8 mm	S355
Roll sheet reinforcement:	5 mm	S355

	Type
Teeth:	CAT J200

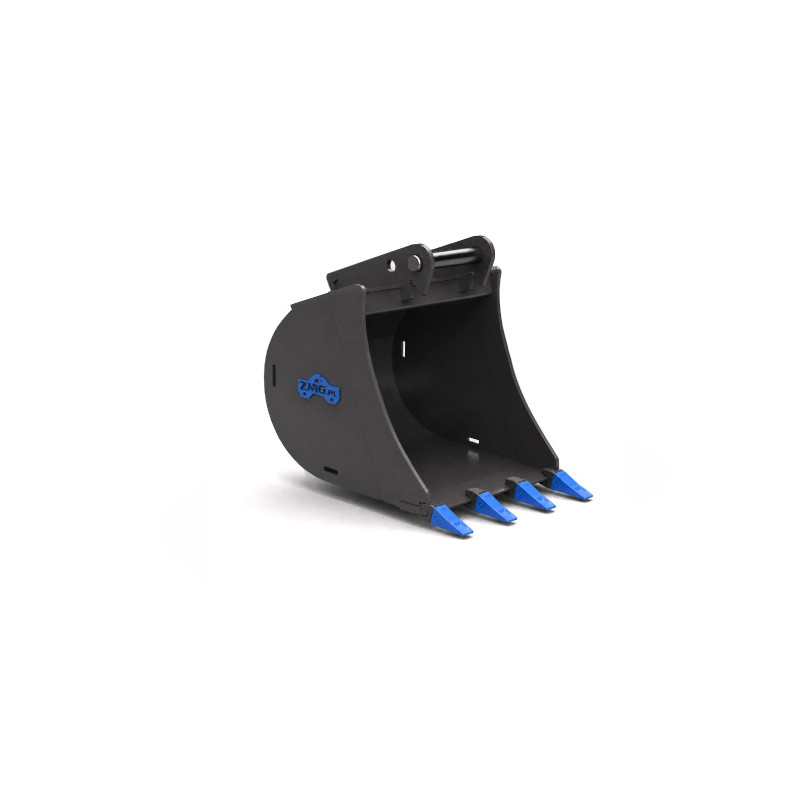

The LK-ZMG5-1100-CW10 digging bucket with a working width of 1100 mm is a sturdy tool designed for heavy excavators in the 8–11 t class. It is perfectly suited for foundation excavation, earthmoving, and general construction tasks requiring both precision and efficiency. The Verachtert CW10 quick coupler system, designed for heavier applications, provides reliable and stable attachment-to-machine connection. Robust build and carefully selected materials make the bucket resistant to mechanical damage, maintaining geometry throughout the product's lifetime.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG5

Reference LK-ZMG5-1100-CW10

Data sheet

Lead time: up to 3 business weeks
For the machine: 8-9
9-10
10-11
Adapter: CW10
Width: 1100
Weight without adapter: 247
Capacity: 502
Side/rear plate: 8 S355
Front side plate: 12 S355
Roll sheet: 5 S355
Rear wear strips: 5 S355
Cutting edge: 20 HB500
Top plate: 12 S355
Bend plate: 8 S355
Number of teeth: 5
Type of teeth: CAT J200
