Class: 0-2 T
Width: 400
Adapter: S30/180

HIT

Out of stock

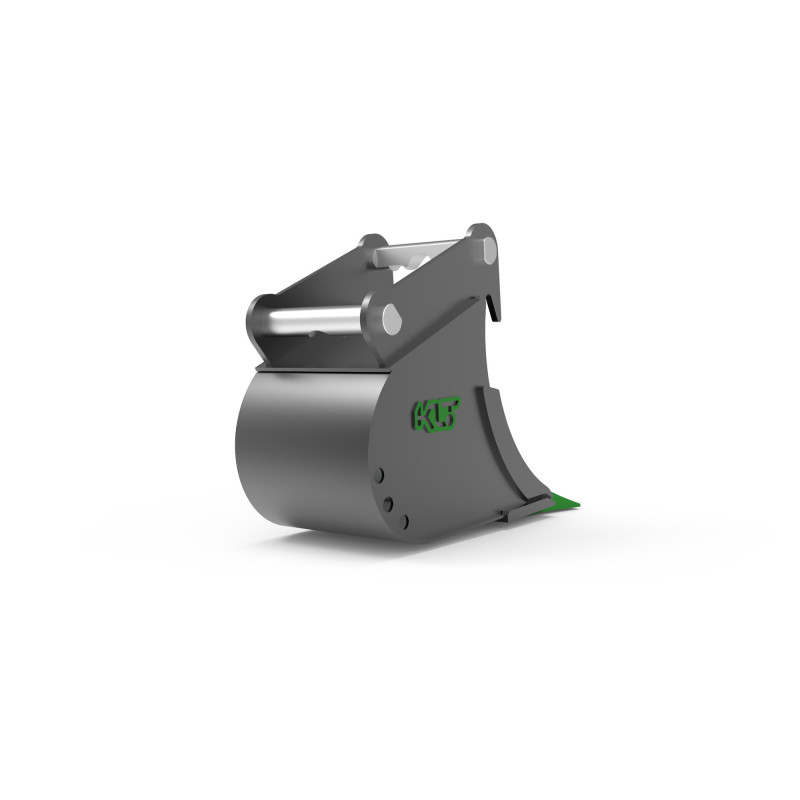

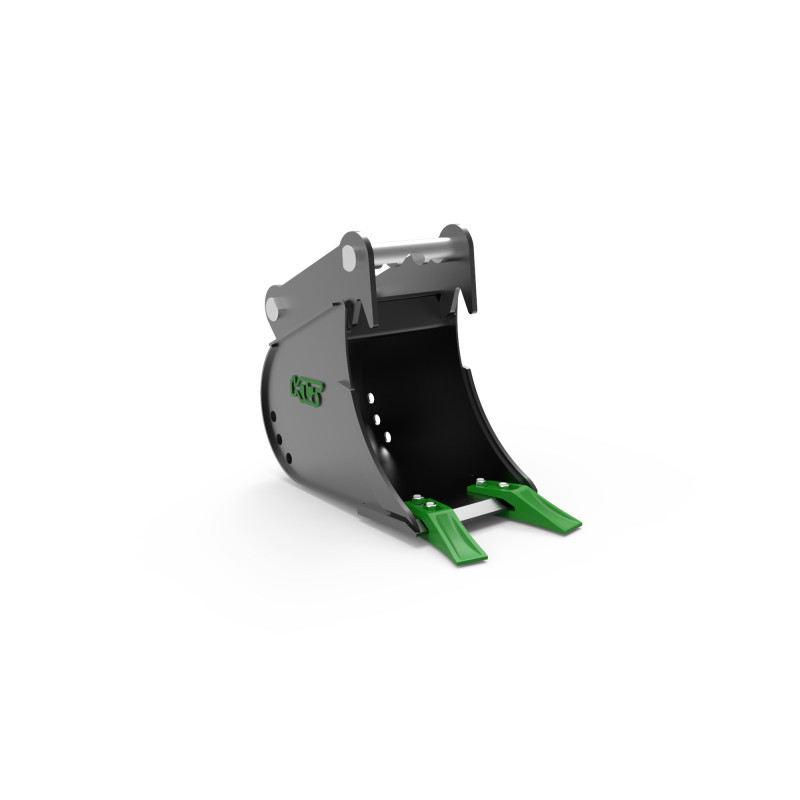

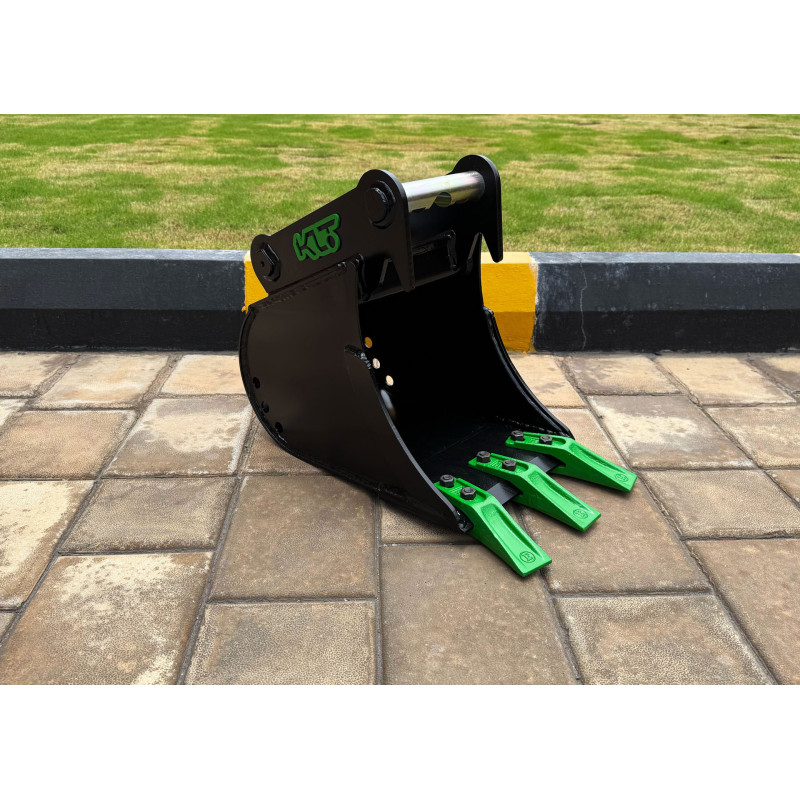

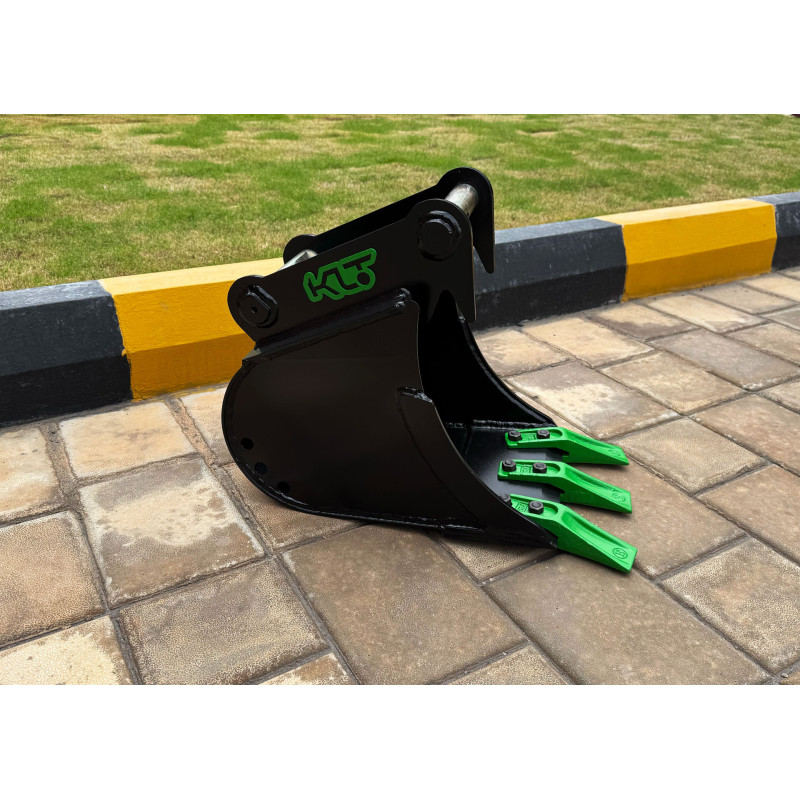

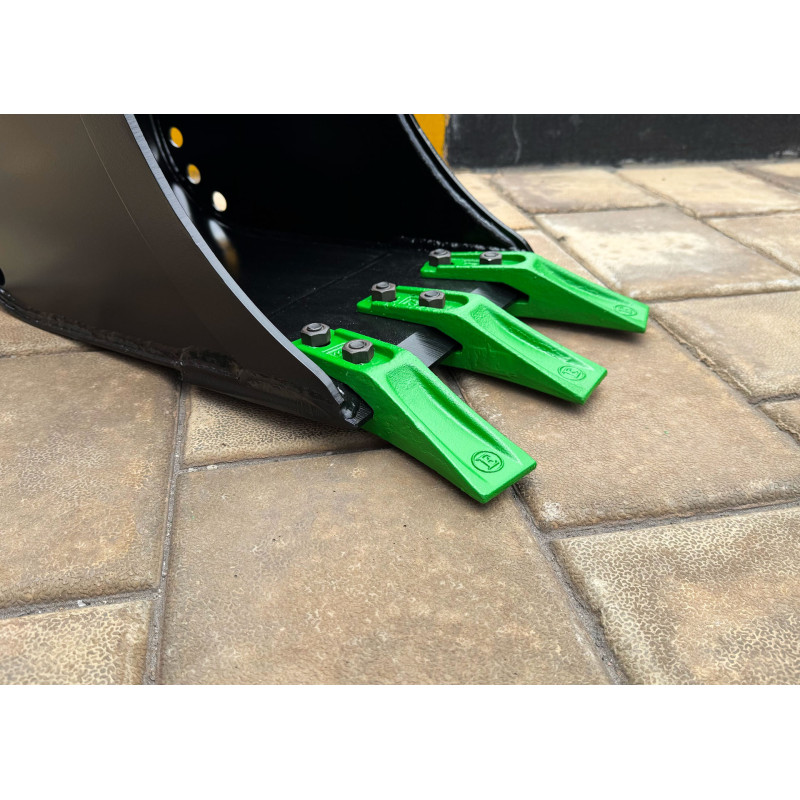

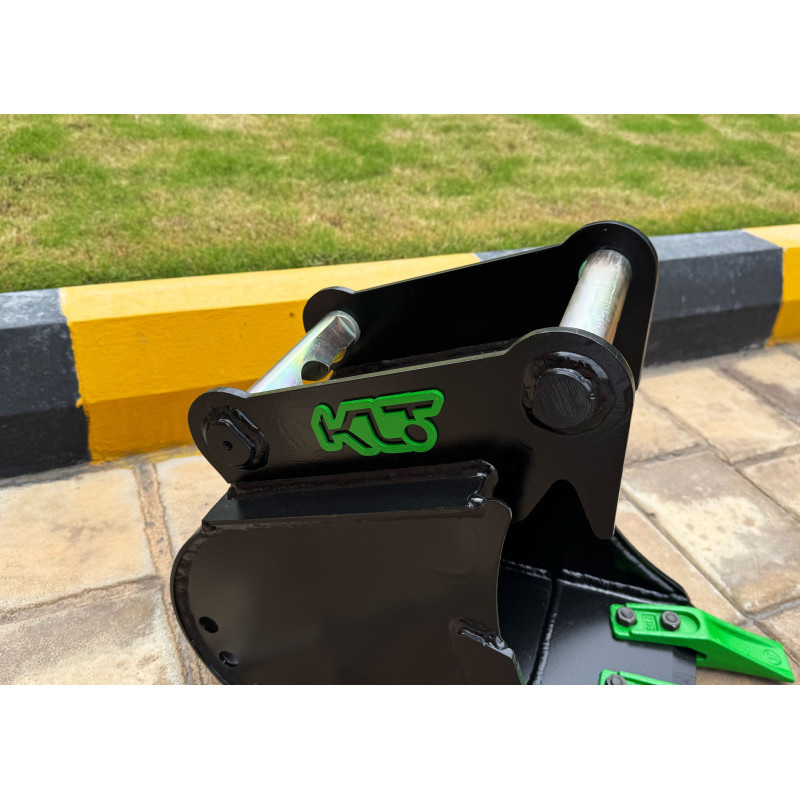

Digging bucket 400mm S30/180 class 0-2t

Name: Digging bucket 400mm S30/180 class 0-2t
Brand: Kalanto
SKU: DBS-S1-V1-400-S30/180
Price: 1034.43 PLN
Availability: OutOfStock

1,034.43 zł Tax included

Out of stock Lead time up to 48 hours

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Volvo system- S30/180 without base plate

Reference: AD-WOP-S30/180

AD-WOP-S30/180 is a lightweight, base-plate-free adapter fully compatible with the Volvo S30/180 system. Its solid build and fast tool mounting increase flexibility and productivity on the job site.

Lead time: up to 48 hours
For the machine: 0-1, 1-2
Adapter: S30/180
Side plate: 20 S355
Pin diameter: 30
Inner width: 182
Pin spacing: 230,5
Weight: 5

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
S30/150	30	152	200,5
S30/180	30	182	230,5
S40	40	202	300,5
S45	45	292	430,5
S50	50	272	430,5
S60	60	342	480,5
S70	70	452	600,5

*The image is for illustrative purposes only. The order refers to the product described in the offer.

Parameters

The main components are made of the following materials and thicknesses:

S30/150		S30/180		S40		S45		S50		S60		S70
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	20mm	S355	20mm	S355	20mm	S355	32mm	S355	32mm	S355	40mm	S355	50mm	S355

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
250	21	25	2
300	25	31	3
400	30	43	3
450	34	49	4
500	37	55	4
600	42	67	4
800	53	91	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Roll sheet:	4 mm	S355
Cutting edge:	16 x 150 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
	Type
Teeth:	E11.4

Watch video (2)

Alternative products with a different lead time:

DBS-S1-V1-400-S30/180 is a strong, compact digging bucket intended for 0–2 ton mini excavators. Ideal for precision earthworks in restricted locations, it works well for trenching, installation tasks, and gardening applications.

Made from durable, high-quality steel with reinforced areas, it offers long service life. The bucket’s improved design ensures smooth material handling, supporting effective work in tough terrain.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S1-V1-400-S30/180

Data sheet

Lead time: up to 48 hours
For the machine: 0-1
1-2
Adapter: S30/180
Width: 400
Weight without adapter: 30
Capacity: 43
Side/rear plate: 4 S355
Side cutters: 8 HB400
Roll sheet: 4 S355
Cutting edge: 16x150 HB400
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 3
Type of teeth: E11.4

Specific References

EAN13: 5908159220551

Watch the videos

16 other products in the same category:

Class: 6-8 T
Width: 1000
Adapter: MS08

ZMG

Digging bucket 1000mm MS08 class 6-8t

4,654.32 zł

In stock

The LK-ZMG4-1000-MS08 is a 1000 mm digging bucket created to meet the demands of excavators in the 6–8 t class. It performs well in earthmoving, excavation, grading, and breaking through soils of...

Class: 0-2 T
Width: 400
Adapter: S30/180

ZMG

Digging bucket 400mm S30/180 class 0-2t

1,068.87 zł

In stock

The LK-ZMG1-400-S30/180 series is a 400 mm digging bucket dedicated to mini and compact excavators up to 2 t. Its optimal working width enables efficient foundation work, linear trenching, road...

Class: 8-11 T
Width: 1100
Adapter: S50

ZMG

Digging bucket 1100mm S50 class 8-11t

6,226.26 zł

In stock

Model LK-ZMG5-1100-S50 is a professional 1100 mm digging bucket intended for heavy excavators in the 8–11 t class. It excels in excavation work, soil removal, trenching, and all types of civil...

Class: 6-9 T
Width: 800
Adapter: CW10

Kalanto

Digging bucket 800mm CW10 class 6-9t

4,257.03 zł

In stock

Strong and practical, the DBS-S5-V1-800-CW10 bucket is an ideal tool for heavy earthworks in demanding construction conditions. It supports foundation trenches, linear excavations and tasks...

Class: 4-6 T
Width: 500
Adapter: with pins

ZMG

Digging bucket 500mm with pins class 4-6t

2,798.25 zł

In stock

The LK-ZMG3-500-ZSW series is a 500 mm digging bucket dedicated to medium-class excavators of 4–6 t. Its optimal working width enables efficient foundation work, linear trenching, road...

Class: 8-11 T
Width: 400
Adapter: S45

ZMG

Digging bucket 400mm S45 class 8-11t

3,596.52 zł

In stock

The LK-ZMG5-400-S45 digging bucket with a working width of 400 mm is a sturdy tool designed for heavy excavators in the 8–11 t class. It is perfectly suited for foundation excavation, earthmoving,...

Class: 3-4 T
Width: 600
Adapter: MS03SY

Kalanto

Digging bucket 600mm MS03SY class 3-4t

2,211.54 zł

In stock

This robust DBS-S3-V1-600-MS03SY bucket enables professional excavation in construction, installation and infrastructure projects. Designed for 3–4 ton machines, it provides outstanding...

Class: 6-9 T
Width: 1000
Adapter: CW10

Kalanto

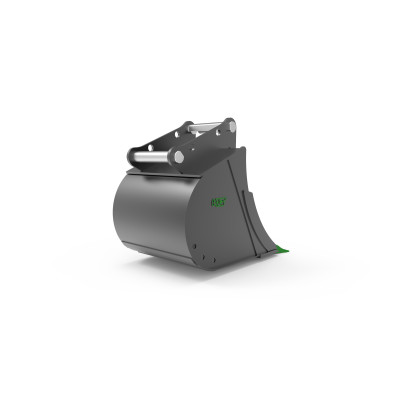

Digging bucket 1000mm CW10 class 6-9t
