Class: 6-9 T
Width: 1000
Adapter: CW10

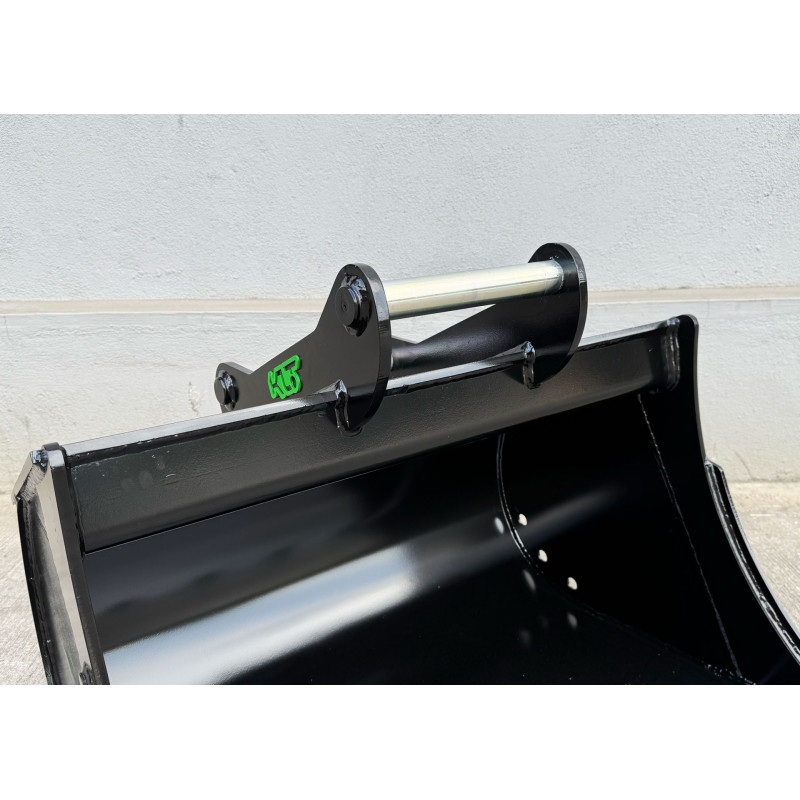

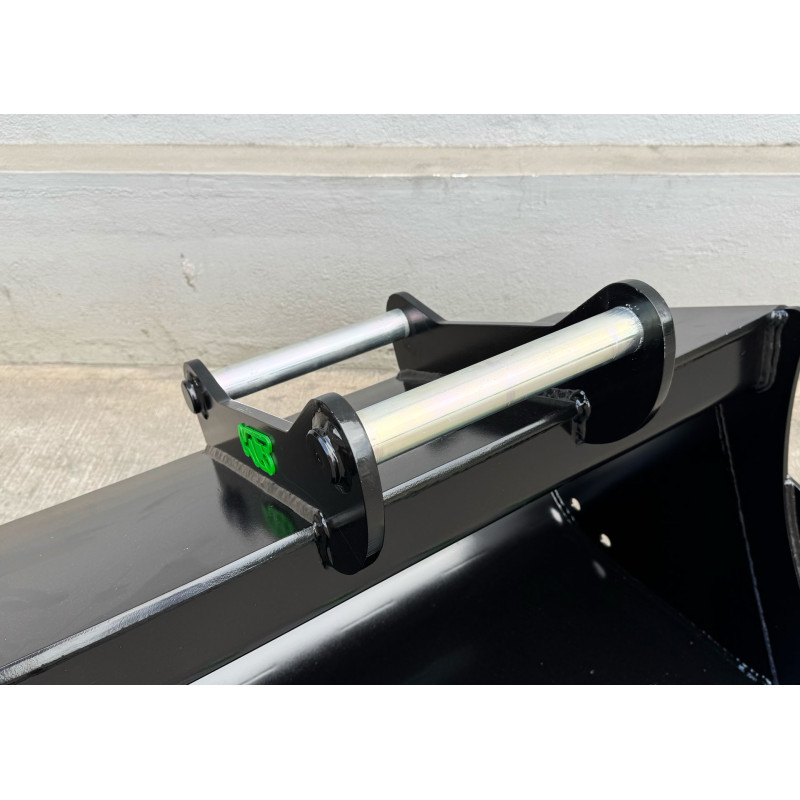

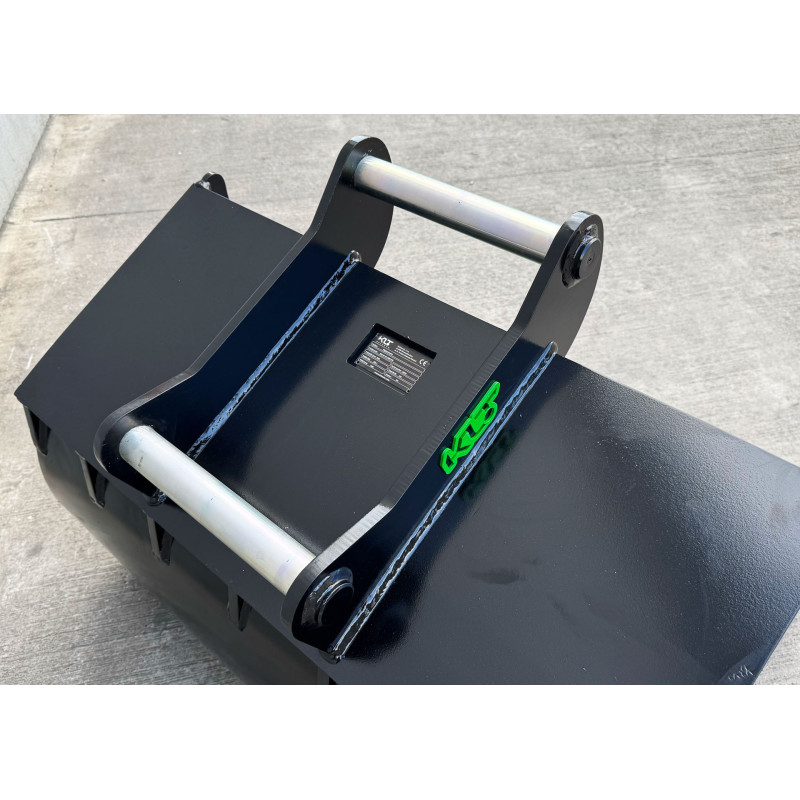

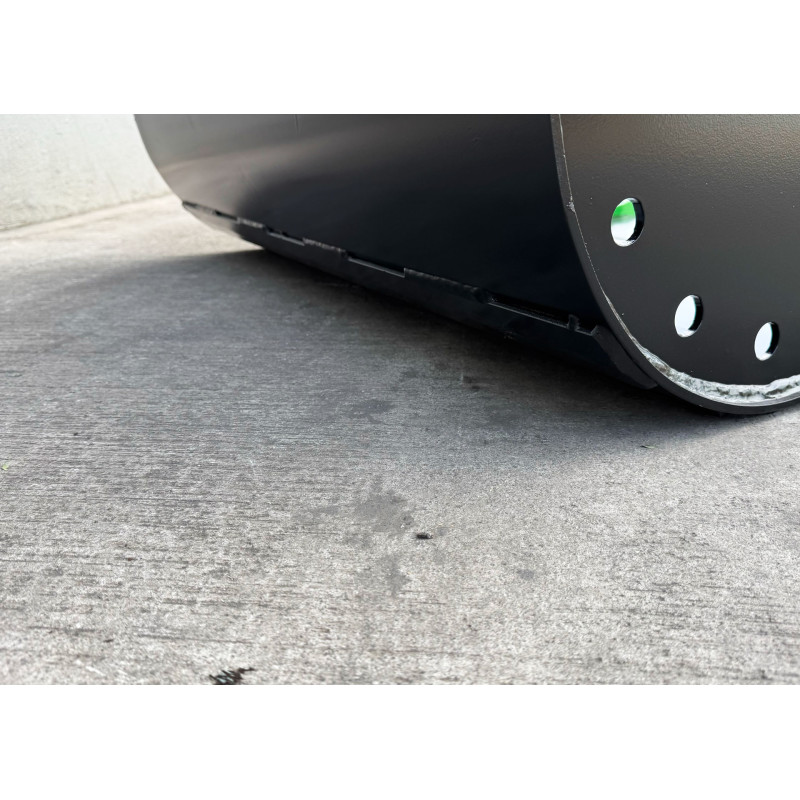

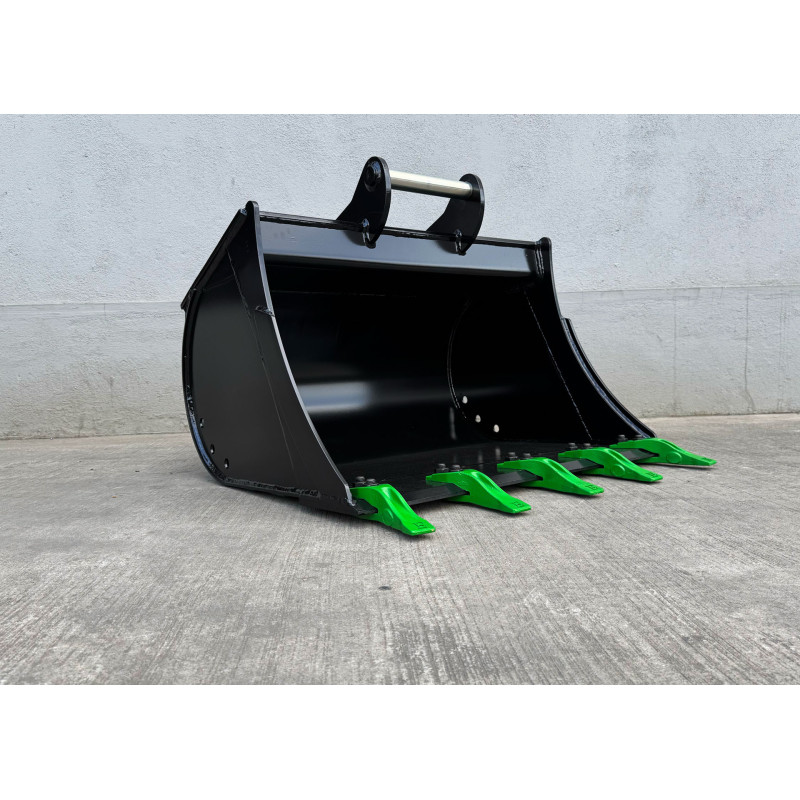

Digging bucket 1000mm CW10 class 6-9t

Name: Digging bucket 1000mm CW10 class 6-9t
Brand: Kalanto
SKU: DBS-S5-V1-1000-CW10
Price: 4926.15 PLN
Availability: InStock

4,926.15 zł Tax included

In stock Lead time up to 7 business days

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Verachtert system- CW10 without base plate

Reference: AD-WOP-CW10

The AD-WOP-CW10 is a base-plate-free design fully compatible with the Verachtert CW10 standard. It ensures quick and secure connection of work tools and maintains durability even under intensive use. A practical option for operators who prefer a lighter and more flexible setup.

*The image is for illustrative purposes only. The order refers to the product described in the offer.

Lead time: up to 48 hours
For the machine: 4-5, 5-6, 6-7, 7-8, 8-9, 9-10, 10-11
Adapter: CW10
Side plate: 20 S355
Pin diameter: 50
Inner width: 320
Pin spacing: 560
Weight: 16

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
CW05	40	180	200
CW10	50	320	300
CW20/30/40	60	560	475

Parameters

The main components are made of the following materials and thicknesses:

	CW05		CW10		CW20/30/40
	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	20mm	S355	20mm	S355	35mm	HB400

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Front side plate:	12mm	S355
Rear side plate:	6 mm	S355
Roll sheet:	6 mm	S355
Cutting edge:	20 x 200 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	12 mm	S355
Bend plate:	10 mm	S355
Rear wear strips:	5 mm	HB400
	Type
Teeth:	E25

Watch video (2)

Alternative products with a different lead time:

Strong and spacious, the DBS-S5-V1-1000-CW10 bucket is a professional tool designed for the most difficult excavation tasks. Its construction ensures full control over the digging process regardless of soil conditions.

It is ideal for large construction projects requiring maximum reliability and operational stability.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S5-V1-1000-CW10

Data sheet

Lead time: up to 7 business days
For the machine: 6-7
7-8
8-9
Adapter: CW10
Width: 1000
Weight without adapter: 195
Capacity: 356
Side/rear plate: 6 S355
Front side plate: 12 S355
Side cutters: 8 HB400
Roll sheet: 6 S355
Rear wear strips: 5 HB400
Cutting edge: 20x200 HB400
Top plate: 12 S355
Bend plate: 10 S355
Number of teeth: 5
Type of teeth: E25

Watch the videos
