  • Class: 6-9 T
  • Width: 500
  • Adapter: MS08
Digging bucket 500mm MS08 class 8-11t
Digging bucket 500mm MS08 class 8-11t
    Digging bucket 500mm MS08 class 8-11t
    Digging bucket 500mm MS08 class 8-11t

Digging bucket 500mm MS08 class 8-11t

3,940.92 zł
Tax included
In stock Lead time: up to 3 business weeks

Other models:

Width
Adapter

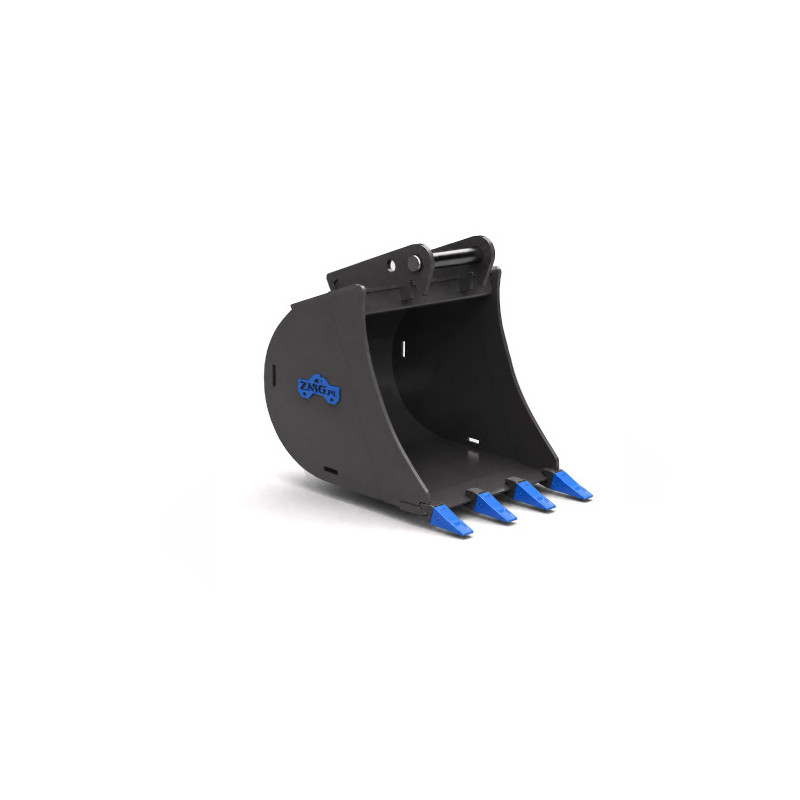

Model LK-ZMG5-500-MS08 is a professional 500 mm digging bucket intended for heavy excavators in the 8–11 t class. It excels in excavation work, soil removal, trenching, and all types of civil engineering operations on construction sites. The Lehnhoff MS08 quick coupler is designed for heavy machines, ensuring secure attachment and rapid tool changes on demanding job sites. Robust build and carefully selected materials make the bucket resistant to mechanical damage, maintaining geometry throughout the product's lifetime.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Quantity
Add to wishlist

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG5

LK-ZMG5-500-MS08

Data sheet

Lead time
up to 3 business weeks
For the machine
8-9
9-10
10-11
Adapter
MS08
Width
500
Weight without adapter
142
Capacity
190
Side/rear plate
8 S355
Front side plate
12 S355
Roll sheet
5 S355
Rear wear strips
5 S355
Cutting edge
20 HB500
Top plate
12 S355
Bend plate
8 S355
Number of teeth
3
Type of teeth
CAT J200
