Class: 3-4 T
Width: 300
Adapter: S40

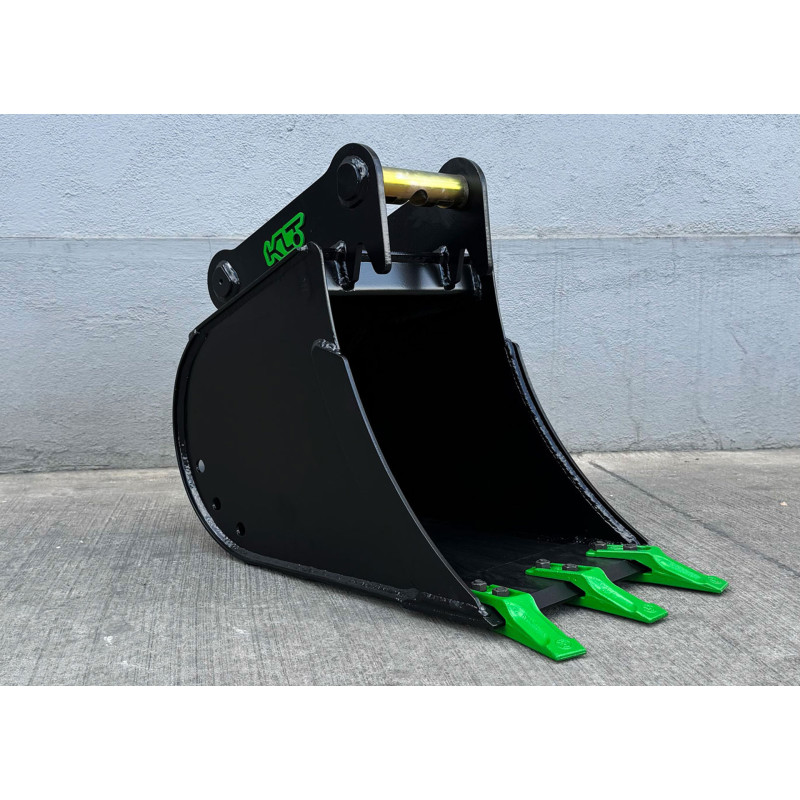

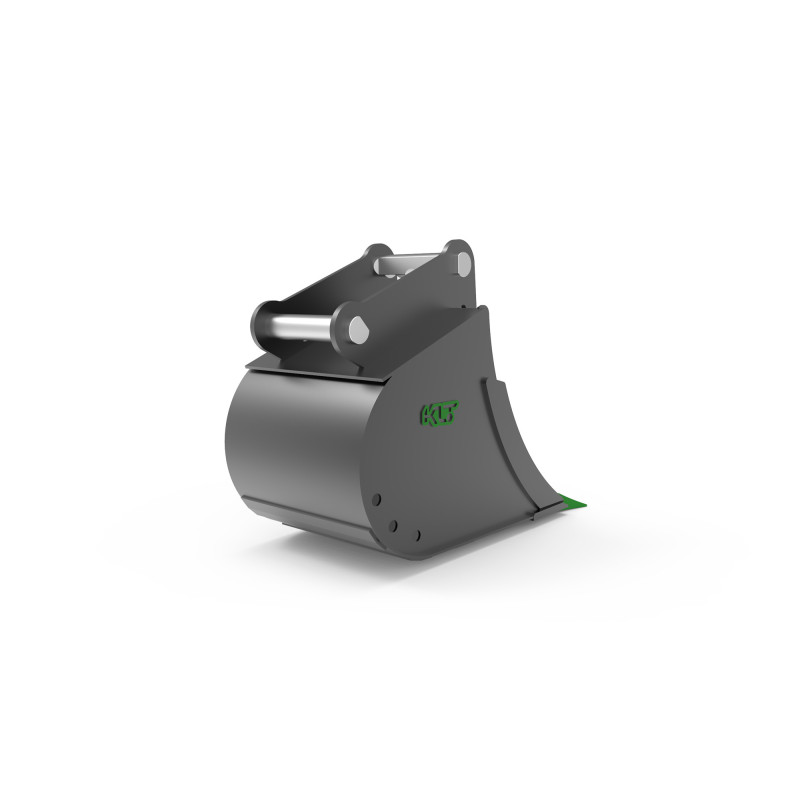

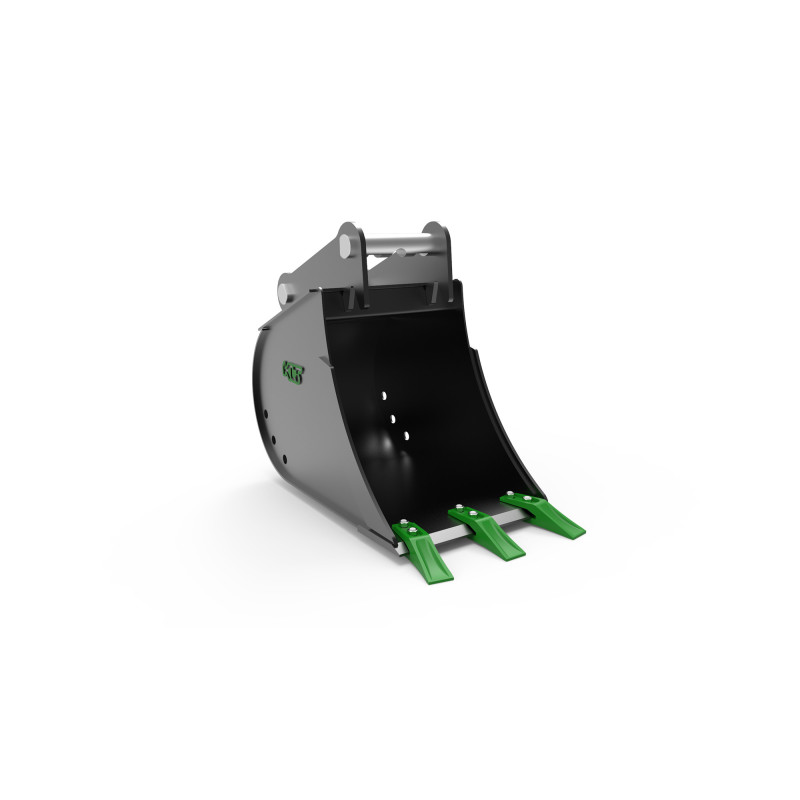

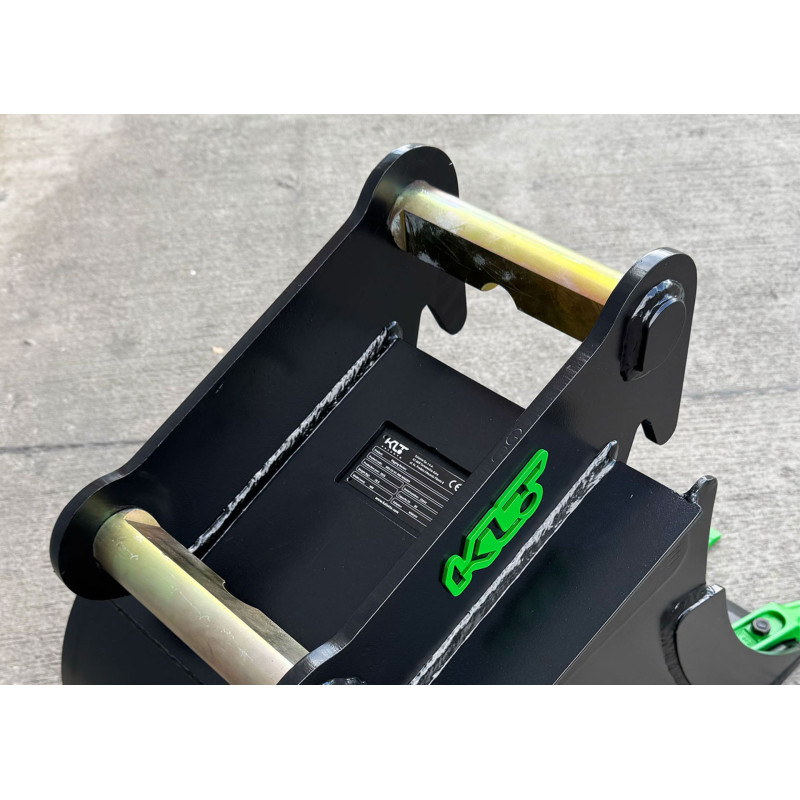

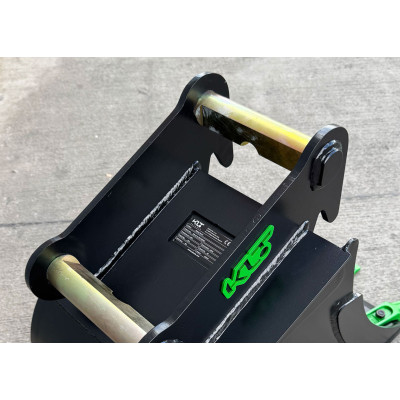

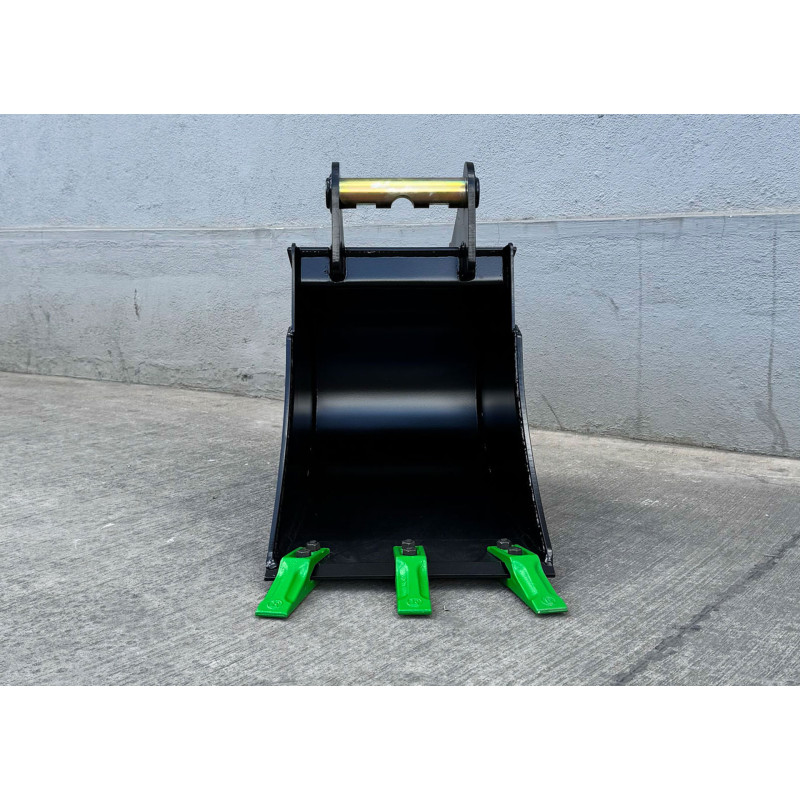

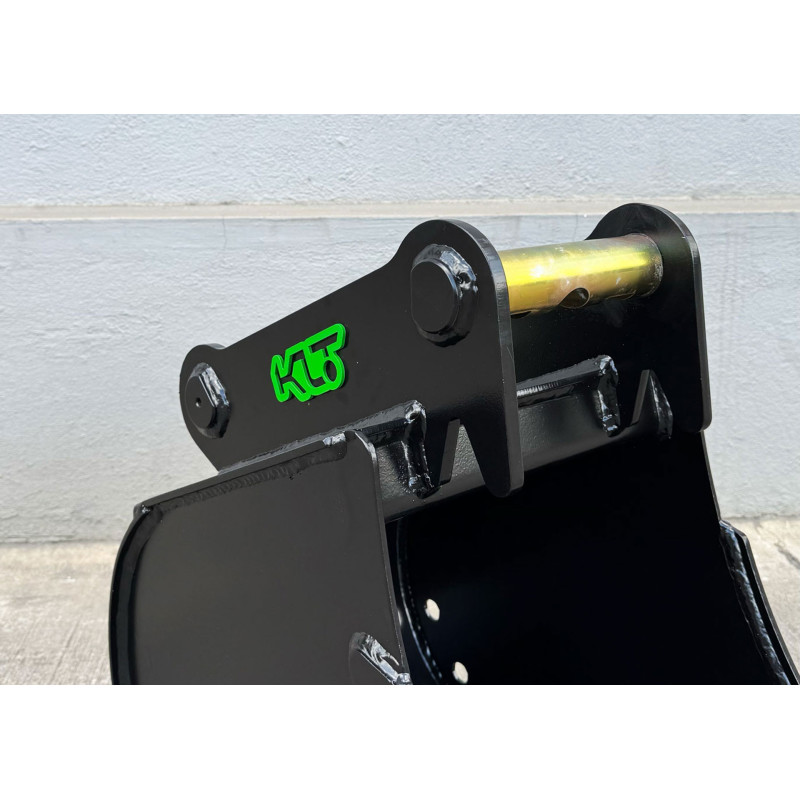

Digging bucket 300mm S40 class 3-4t

Name: Digging bucket 300mm S40 class 3-4t
Brand: Kalanto
SKU: DBS-S3-V1-300-S40
Price: 1532.58 PLN
Availability: InStock

1,532.58 zł

Tax included

In stock Lead time: up to 48 hours

Other models:

Width

Adapter

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	16 x 150 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
Rear wear strips:	5 mm	HB400
	Type

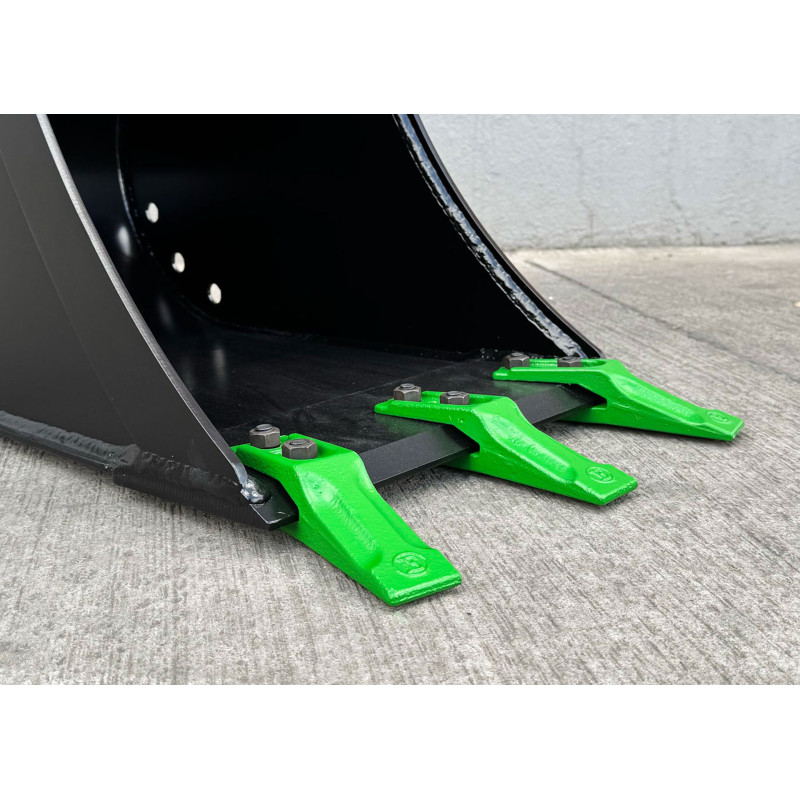

Teeth:	E11.4

Alternative products with a different lead time:

The DBS-S3-V1-300-S40 bucket is a solid and heavy-duty attachment dedicated to 3–4 ton excavators. Engineered for demanding ground conditions, it excels in foundation works, trenching for utilities, pipeline installations and preparing construction sites. Its carefully balanced structure provides smooth operation, high precision and excellent stability during intense workloads.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S3-V1-300-S40

Data sheet

Lead time: up to 48 hours
For the machine: 3-4
Adapter: S40
Width: 300
Weight without adapter: 45
Capacity: 56
Side/rear plate: 5 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Rear wear strips: 5 HB400
Cutting edge: 16x150 HB400
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 3
Type of teeth: E11.4

Specific References

EAN13: 5908159220971
