Class: 6-9 T
Width: 800
Adapter: S50

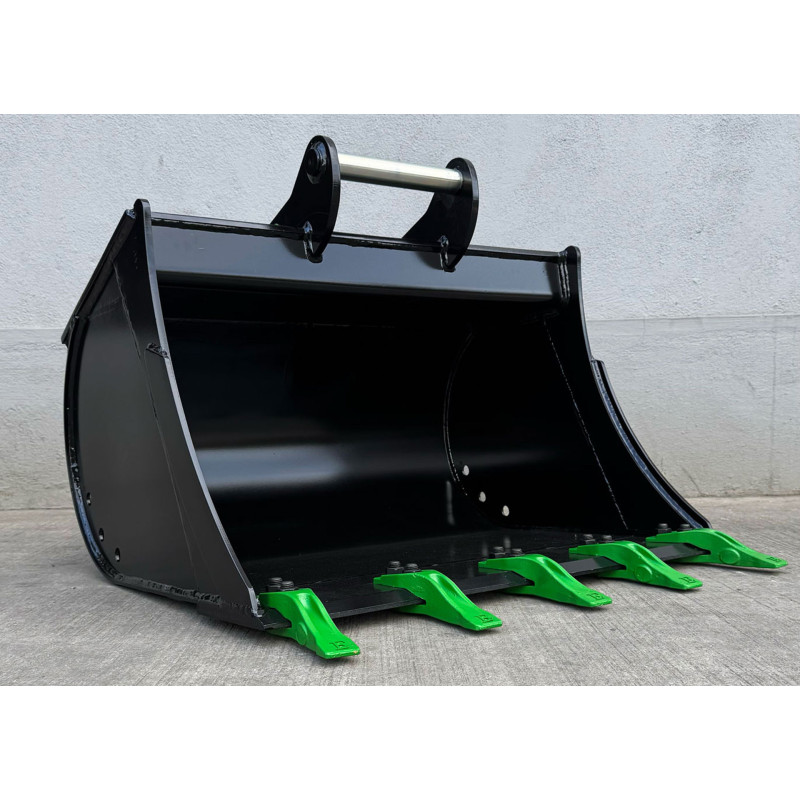

Digging bucket 800mm S50 class 6-9t

Name: Digging bucket 800mm S50 class 6-9t
Brand: Kalanto
SKU: DBS-S5-V1-800-S50
Price: 4257.03 PLN
Availability: InStock

4,257.03 zł Tax included

In stock Lead time up to 7 business days

Other models:

Width

Adapter

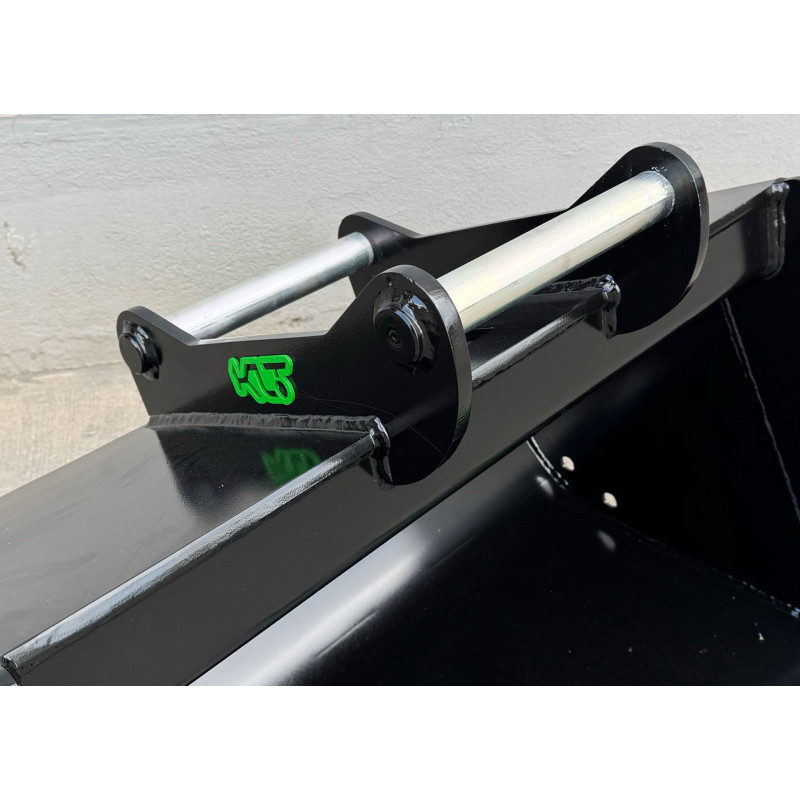

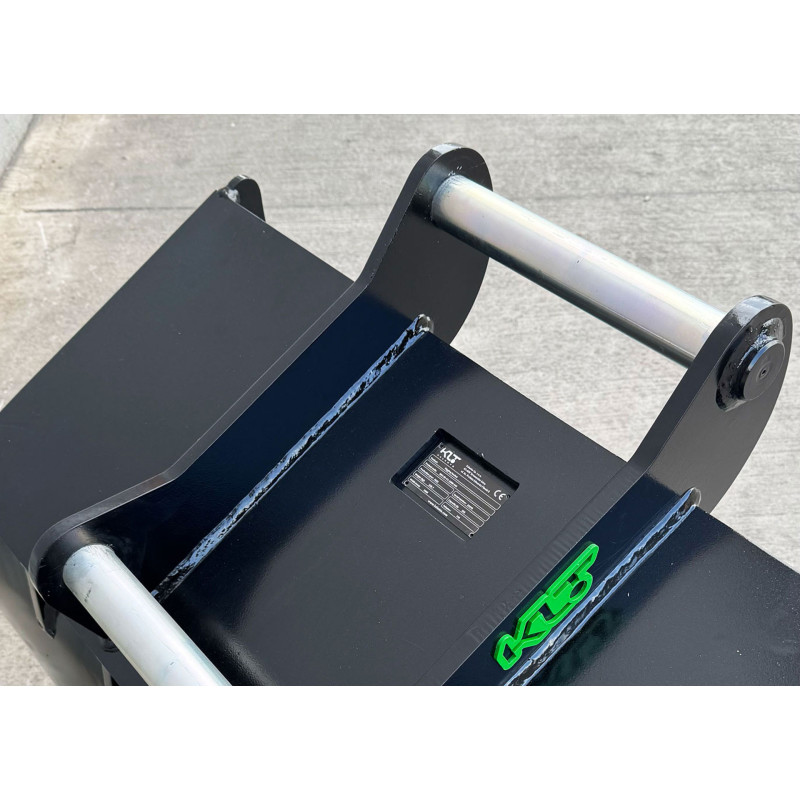

Adapter parameters

Adapter compatible with the Volvo system- S50 without base plate

Reference: AD-WOP-S50

AD-WOP-S50 is fully compatible with the Volvo S50 system and allows quick attachment of tools without a base plate. Strong and overload-resistant, it supports efficient machine retooling in varying terrain conditions.

Lead time: up to 48 hours
For the machine: 5-6, 6-7, 7-8, 8-9, 9-10, 10-11, 11-12
Adapter: S50
Side plate: 32 S355
Pin diameter: 50
Inner width: 272
Pin spacing: 430,5
Weight: 21

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
S30/150	30	152	200,5
S30/180	30	182	230,5
S40	40	202	300,5
S45	45	292	430,5
S50	50	272	430,5
S60	60	342	480,5
S70	70	452	600,5

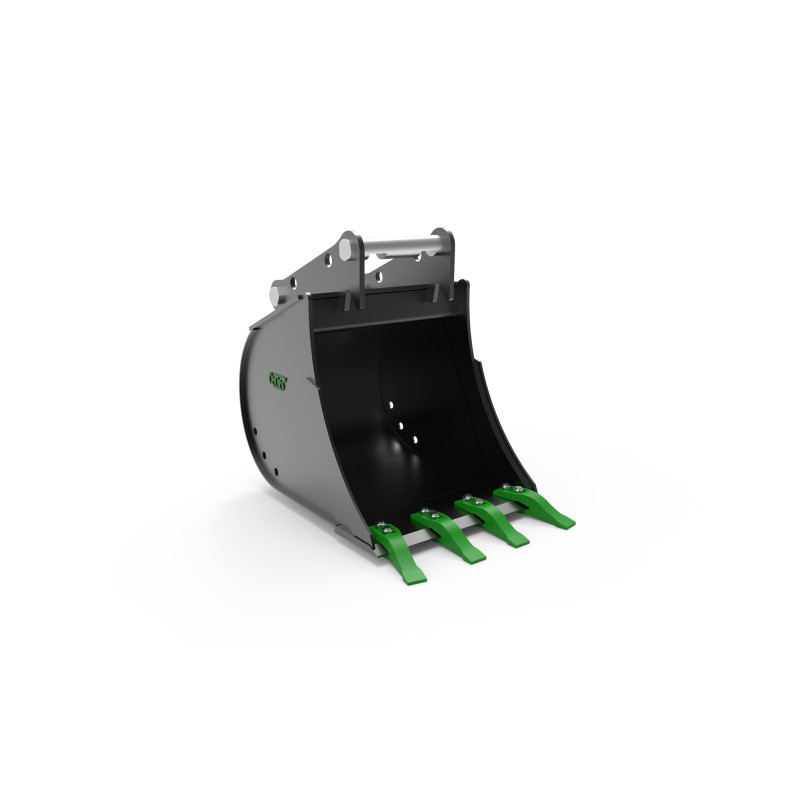

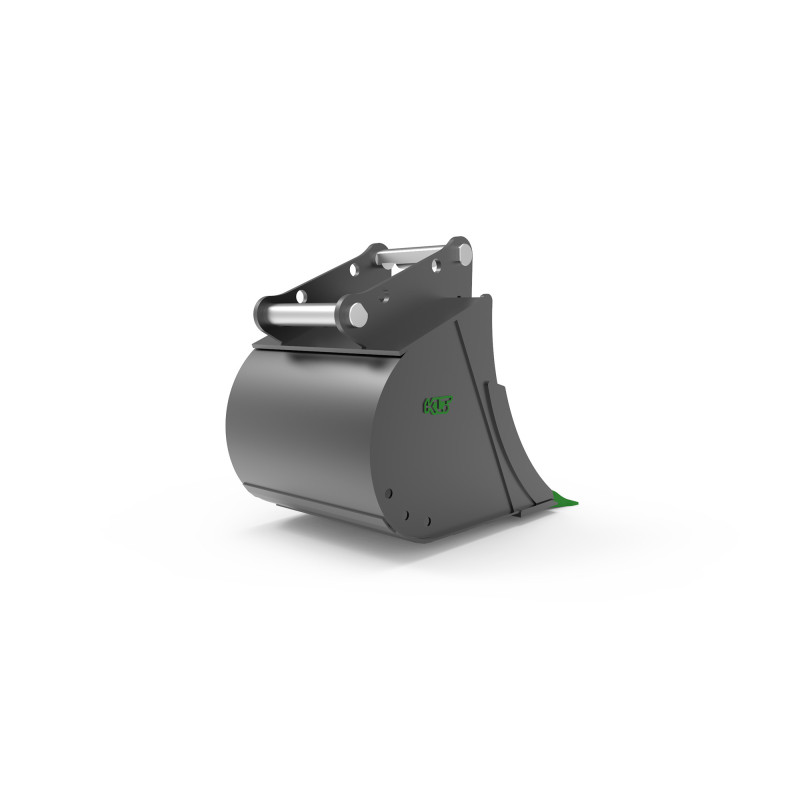

*The image is for illustrative purposes only. The order refers to the product described in the offer.

Parameters

The main components are made of the following materials and thicknesses:

	S30/150		S30/180		S40		S45		S50		S60		S70
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	20mm	S355	20mm	S355	20mm	S355	32mm	S355	32mm	S355	40mm	S355	50mm	S355

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Front side plate:	12mm	S355
Rear side plate:	6 mm	S355
Roll sheet:	6 mm	S355

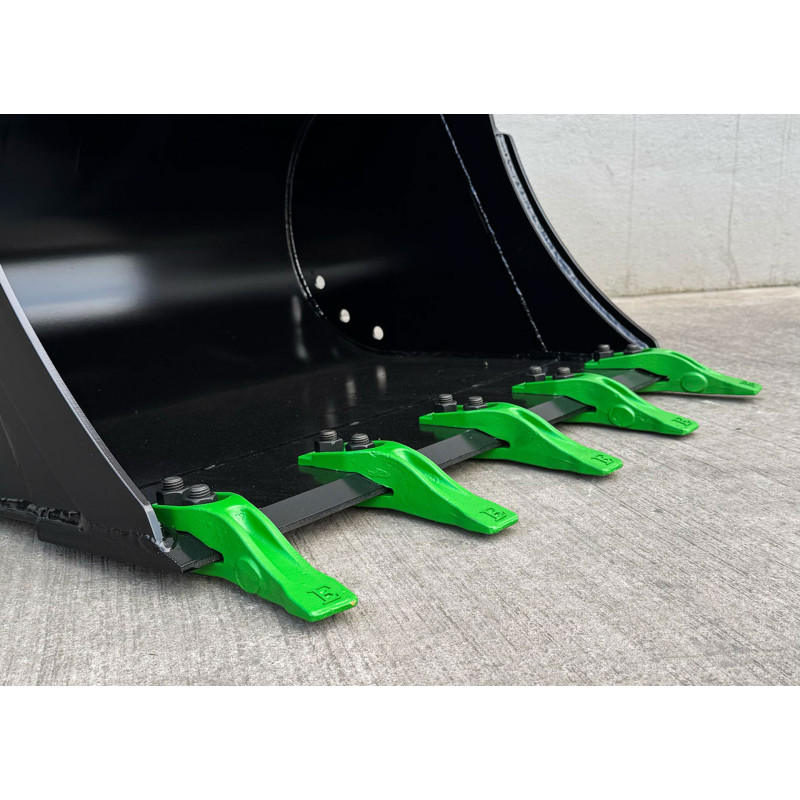

Cutting edge:	20 x 200 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	12 mm	S355
Bend plate:	10 mm	S355

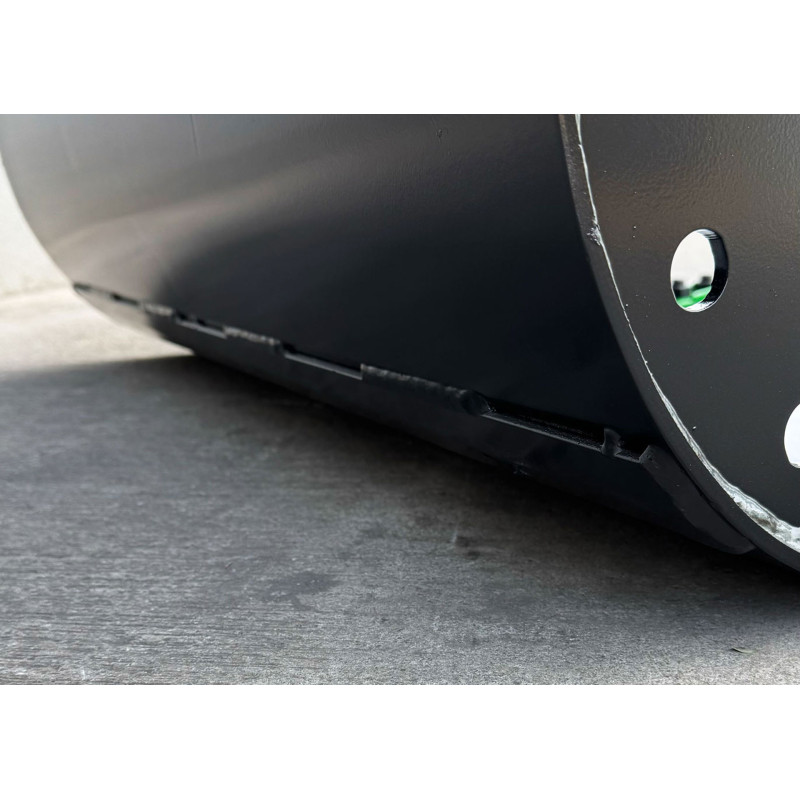

Rear wear strips:	5 mm	HB400
	Type
Teeth:	E25

Watch video (2)

Alternative products with a different lead time:

Strong and practical, the DBS-S5-V1-800-S50 bucket is an ideal tool for heavy earthworks in demanding construction conditions. It supports foundation trenches, linear excavations and tasks related to industrial and road construction. Its precise handling improves safety and operator comfort.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S5-V1-800-S50

Data sheet

Lead time: up to 7 business days
For the machine: 6-7
7-8
8-9
Adapter: S50
Width: 800
Weight without adapter: 164
Capacity: 274
Side/rear plate: 6 S355
Front side plate: 12 S355
Side cutters: 8 HB400
Roll sheet: 6 S355
Rear wear strips: 5 HB400
Cutting edge: 20x200 HB400
Top plate: 12 S355
Bend plate: 10 S355
Number of teeth: 5
Type of teeth: E25

Watch the videos
