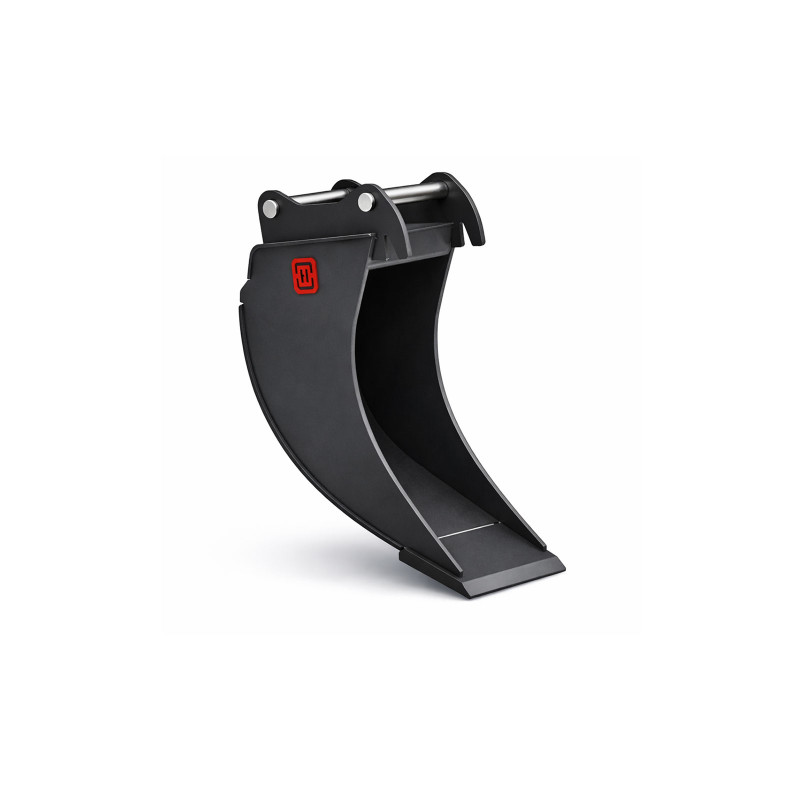

Attachments in the S45 standard offer high load resistance, making them suitable for intensive use. The precise fit to S45 quick couplers ensures a secure hold and smooth operation during digging, loading and grading.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 300 | 75 | 130 |
| 400 | 83 | 160 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Front side plate: | 12 mm | Hardox 500 Tuf |
| Rear side plate: | 5 mm | Hardox 500 Tuf |
| Roll sheet: | 6 mm | Hardox 500 Tuf |
| Cutting edge: | 20 mm | HB500 |
| Top plate: | 8 mm | Hardox 500 Tuf |
| Bend plate: | 6 mm | Hardox 500 Tuf |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
