Class: 6-9 T
Width: 300
Adapter: MS08SY

Cable bucket 300mm MS08SY class 6-9t

Name: Cable bucket 300mm MS08SY class 6-9t
Brand: Solid Hitch
SKU: CB-S5-SH1-300-MS08SY
Price: 6516.05 PLN
Availability: InStock

6,516.05 zł

Tax included

Made to order Lead time: up to 6 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]
300	75	130
400	83	160

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Front side plate:	12 mm	Hardox 500 Tuf
Rear side plate:	5 mm	Hardox 500 Tuf
Roll sheet:	6 mm	Hardox 500 Tuf
Cutting edge:	20 mm	HB500
Top plate:	8 mm	Hardox 500 Tuf
Bend plate:	6 mm	Hardox 500 Tuf

The MS03 mounting system used in these buckets ensures quick, secure and safe attachment to the excavator. The durable construction, designed for intensive work, provides excellent digging efficiency and long-lasting wear resistance.

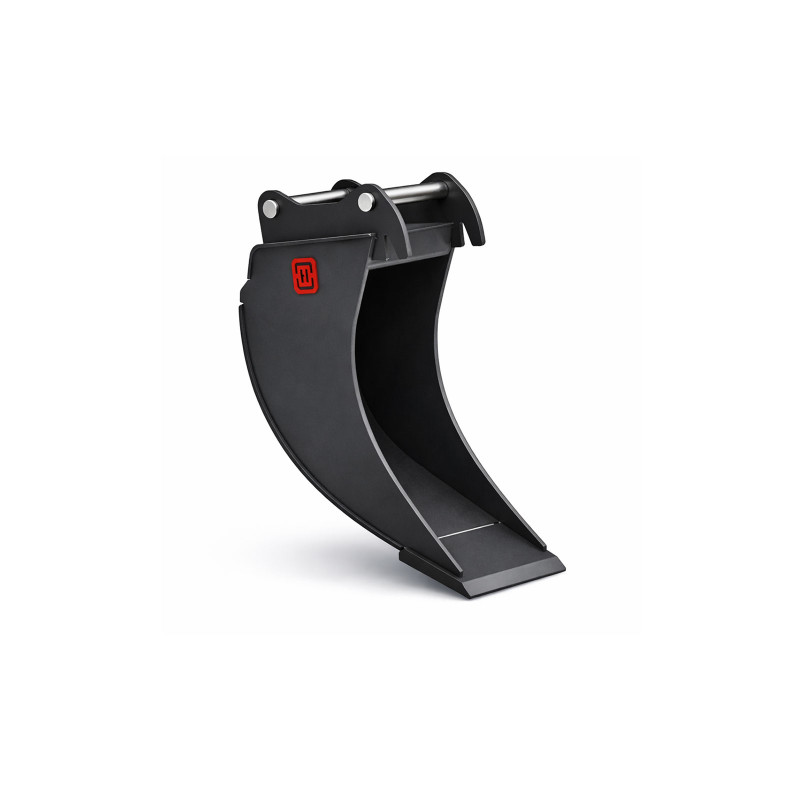

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference CB-S5-SH1-300-MS08SY

Data sheet

Lead time: up to 6 business weeks
For the machine: 6-7
7-8
8-9
Adapter: MS08SY
Width: 300
Weight without adapter: 75
Capacity: 130
Side/rear plate: 5 Hardox 500 Tuf
Front side plate: 12 Hardox 500 Tuf
Roll sheet: 6 Hardox 500 Tuf
Cutting edge: 20 HB 500
Top plate: 8 Hardox 500 Tuf
Bend plate: 6 Hardox 500 Tuf
