Cable bucket 300mm CW10 class 6-9t
6,516.05 zł
Tax included
Buckets compatible with CW10 are designed for operation in demanding ground conditions. Their optimized geometry and options for welded or bolt-on teeth improve digging performance and facilitate material handling.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 300 | 75 | 130 |
| 400 | 83 | 160 |
* The given bucket weight does not include the weight of the adapter.

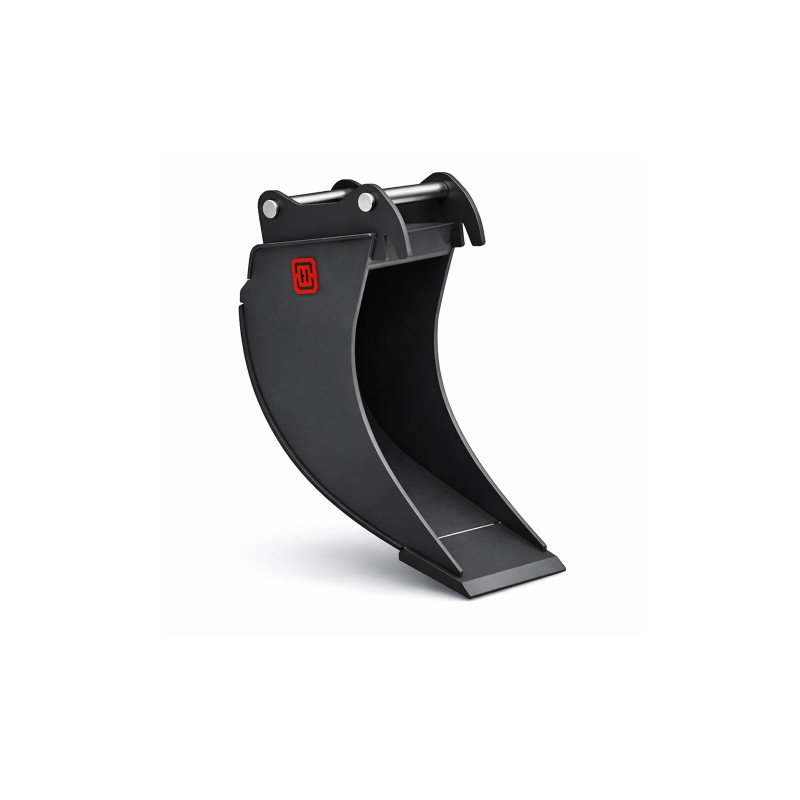

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Front side plate: | 12 mm | Hardox 500 Tuf |
| Rear side plate: | 5 mm | Hardox 500 Tuf |
| Roll sheet: | 6 mm | Hardox 500 Tuf |
| Cutting edge: | 20 mm | HB500 |
| Top plate: | 8 mm | Hardox 500 Tuf |
| Bend plate: | 6 mm | Hardox 500 Tuf |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
CB-S5-SH1-300-CW10
Data sheet
- Lead time
- up to 6 business days weeks
- For the machine
- 6-7t
7-8t
8-9t - Adapter
- CW10
- Width
- 300mm
- Weight without adapter
- 75kg
- Capacity
- 130 l
- Side/rear plate
- 5mm Hardox 500 Tuf
- Front side plate
- 12mm Hardox 500 Tuf
- Roll sheet
- 6mm Hardox 500 Tuf
- Cutting edge
- 20mm HB 500
- Top plate
- 8mm Hardox 500 Tuf
- Bend plate
- 6mm Hardox 500 Tuf
