Class: 6-9 T
Width: 400
Adapter: CW10

Cable bucket 400mm CW10 class 6-9t

Name: Cable bucket 400mm CW10 class 6-9t
Brand: Solid Hitch
SKU: CB-S5-SH1-400-CW10
Price: 7002.64 PLN
Availability: InStock

7,002.64 zł

Tax included

Made to order Lead time: up to 6 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]
300	75	130
400	83	160

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Front side plate:	12 mm	Hardox 500 Tuf
Rear side plate:	5 mm	Hardox 500 Tuf
Roll sheet:	6 mm	Hardox 500 Tuf
Cutting edge:	20 mm	HB500
Top plate:	8 mm	Hardox 500 Tuf
Bend plate:	6 mm	Hardox 500 Tuf

Buckets with CW10 mounting provide excellent stability and easy handling, ensuring operator comfort. Their sturdy construction and wide range of available widths allow them to be adapted to various construction applications.

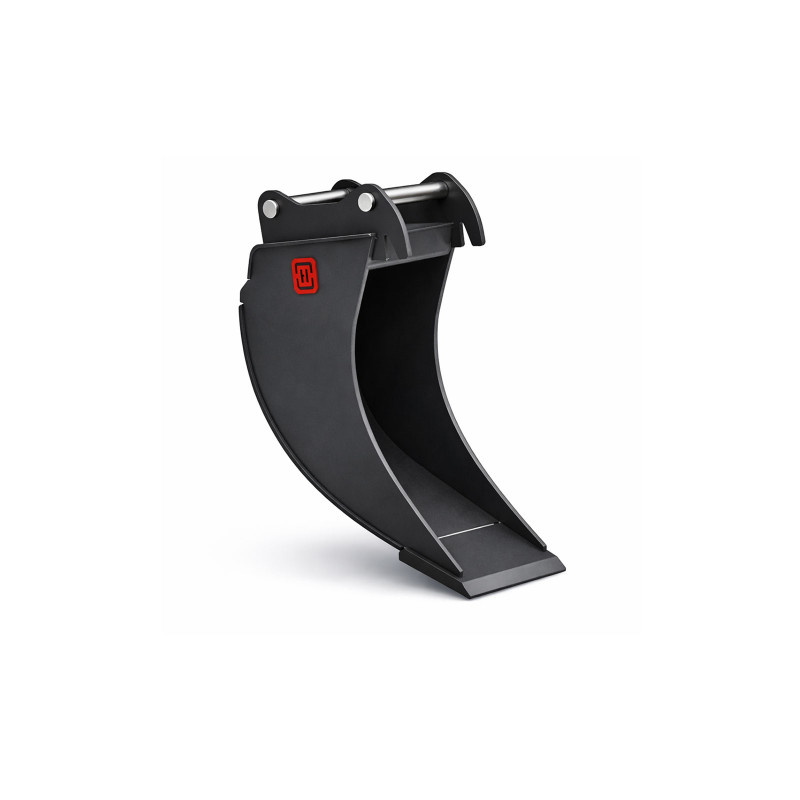

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference CB-S5-SH1-400-CW10

Data sheet

Lead time: up to 6 business weeks
For the machine: 6-7
7-8
8-9
Adapter: CW10
Width: 400
Weight without adapter: 83
Capacity: 160
Side/rear plate: 5 Hardox 500 Tuf
Front side plate: 12 Hardox 500 Tuf
Roll sheet: 6 Hardox 500 Tuf
Cutting edge: 20 HB 500
Top plate: 8 Hardox 500 Tuf
Bend plate: 6 Hardox 500 Tuf
