Digging bucket 400mm MS03SY class 3-4t
4,299.96 zł
Tax included
Thanks to the MS03SY mounting, 3–4 t buckets ensure quick and secure attachment, while HARDOX 500 TUF increases resistance to stress and cracking.
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
|---|---|---|---|
| 300 | 45 | 80 | 3 |
| 400 | 55 | 100 | 4 |
| 500 | 63 | 125 | 4 |
| 600 | 75 | 160 | 4 |
| 700 | 86 | 185 | 5 |
| 800 | 96 | 210 | 5 |
* The given bucket weight does not include the weight of the adapter.

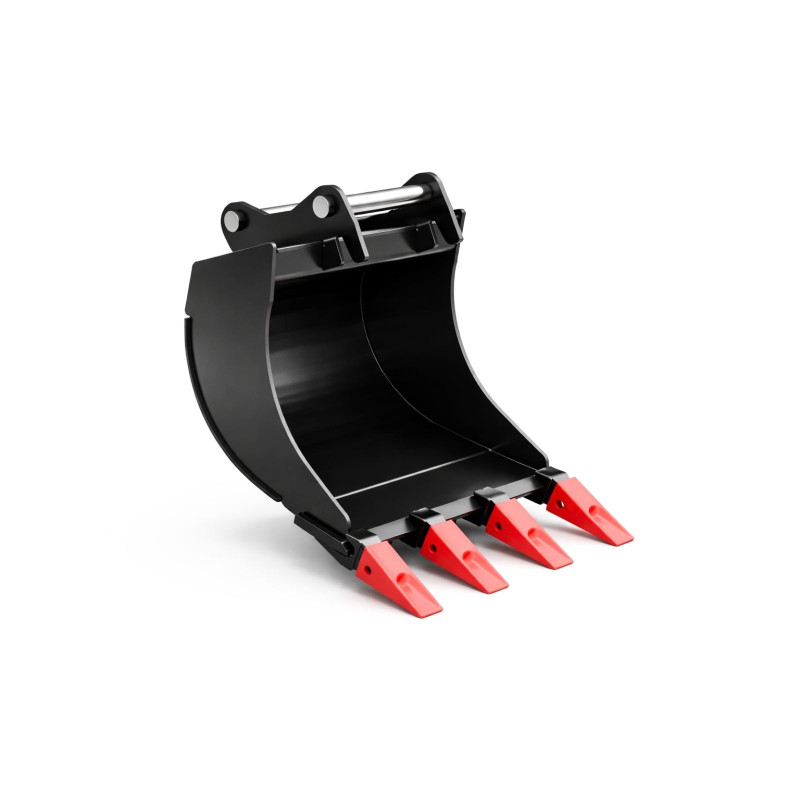

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Front side plate: | 10 mm | Hardox 500 Tuf |
| Rear side plate: | 4 mm | Hardox 500 Tuf |
| Roll sheet: | 5 mm | Hardox 500 Tuf |
| Cutting edge: | 16 mm | HB500 |
| Top plate: | 6 mm | Hardox 500 Tuf |
| Bend plate: | 4 mm | Hardox 500 Tuf |
| Type | ||
| Teeth: | CATJ200 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
DB-S3-SH1-400-MS03SY
Data sheet
- Lead time
- up to 6 business days weeks
- For the machine
- 3-4t
- Adapter
- MS03SY
- Width
- 400mm
- Weight without adapter
- 55kg
- Capacity
- 100 l
- Side/rear plate
- 4mm Hardox 500 Tuf
- Front side plate
- 10mm Hardox 500 Tuf
- Roll sheet
- 5mm Hardox 500 Tuf
- Cutting edge
- 16mm HB 500
- Top plate
- 6mm Hardox 500 Tuf
- Bend plate
- 4mm Hardox 500 Tuf
- Number of teeth
- 4pcs
- Type of teeth
- CATJ200
