Class: 3-4 T
Width: 400
Adapter: MS03SY

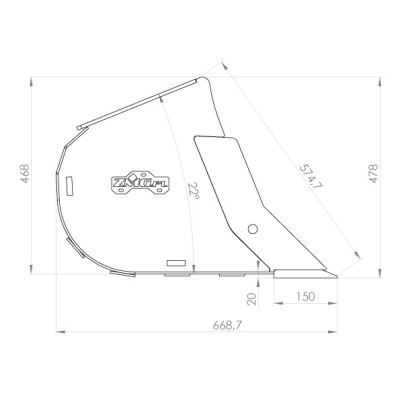

Digging bucket 400mm MS03SY class 3-4t

Name: Digging bucket 400mm MS03SY class 3-4t
Brand: ZMG
SKU: LK-ZMG2-5-400-MS03SY
Price: 2078.70 PLN
Availability: InStock

2,078.70 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
250	42	44	2
300	47	55	3
350	52	66	3
400	57	78	3
450	62	90	4
500	67	102	4
600	79	125	4
700	89	150	5
800	100	174	5
900	110	211	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	6 mm	S355
Bend plate:	5 mm	S355
Roll sheet reinforcement:	5 mm	S355

	Type
Teeth:	JCB

Alternative products with a different lead time:

Model LK-ZMG2-5-400-MS03SY is a professional 400 mm digging bucket intended for excavators in the 3–4 t class. It excels in excavation work, soil removal, trenching, and all types of civil engineering operations on construction sites. The hydraulic Lehnhoff MS03SY quick coupler lets the operator change attachments without leaving the cab, increasing productivity and safety. Robust build and carefully selected materials make the bucket resistant to mechanical damage, maintaining geometry throughout the product's lifetime.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG2-5

Reference LK-ZMG2-5-400-MS03SY

Data sheet

Lead time: up to 3 business weeks
For the machine: 3-4
Adapter: MS03SY
Width: 400
Weight without adapter: 57
Capacity: 78
Side/rear plate: 5 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Rear wear strips: 5 S355
Cutting edge: 20 HB500
Top plate: 6 S355
Bend plate: 5 S355
Number of teeth: 3
Type of teeth: JCB
