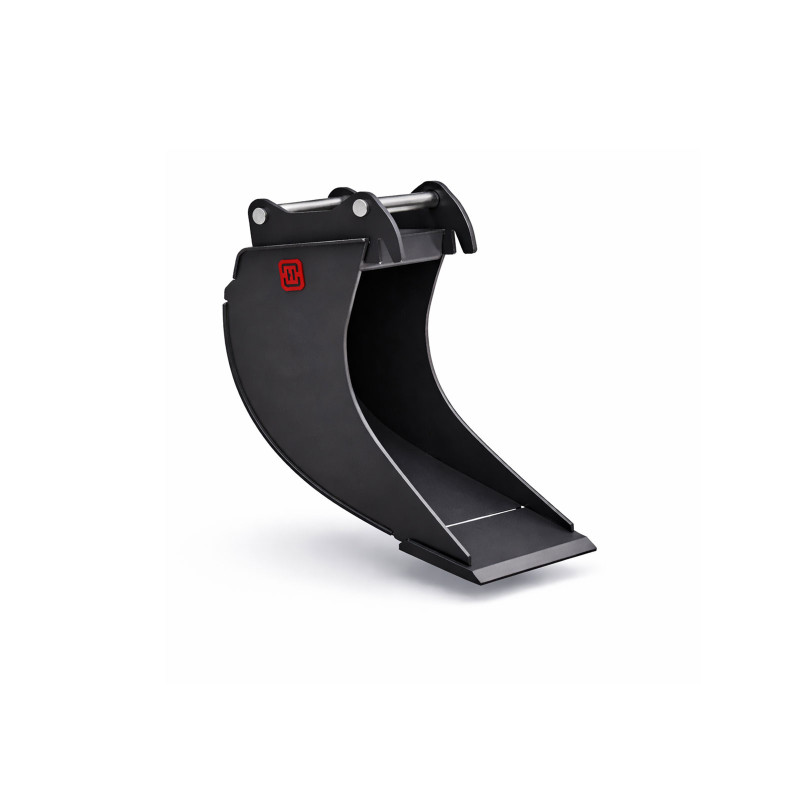

Cable bucket 300mm MS03SY P70 class 2-3t
3,353.23 zł
Tax included
Buckets designed for 2–3 ton mini excavators are highly wear-resistant and stable in operation. Carefully balanced proportions and shape improve digging performance and make material handling easier.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 300 | 29 | 55 |
| 300 | 32 | 70 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Front side plate: | 8 mm | Hardox 500 Tuf |
| Rear side plate: | 4 mm | Hardox 500 Tuf |
| Roll sheet: | 4 mm | Hardox 500 Tuf |
| Cutting edge: | 16 mm | HB500 |
| Top plate: | 4 mm | Hardox 500 Tuf |
| Bend plate: | 4 mm | Hardox 500 Tuf |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
CB-S2-SH1-300-70-S40
Data sheet
- Lead time
- up to 6 business days weeks
- For the machine
- 2-3t
- Adapter
- MS03SY
- Width
- 300mm
- Weight without adapter
- 32kg
- Capacity
- 70 l
- Side/rear plate
- 4mm Hardox 500 Tuf
- Front side plate
- 8mm Hardox 500 Tuf
- Roll sheet
- 4mm Hardox 500 Tuf
- Cutting edge
- 16mm HB 500
- Top plate
- 4mm Hardox 500 Tuf
- Bend plate
- 4mm Hardox 500 Tuf
