Class: 2-3 T
Width: 300
Adapter: CW05

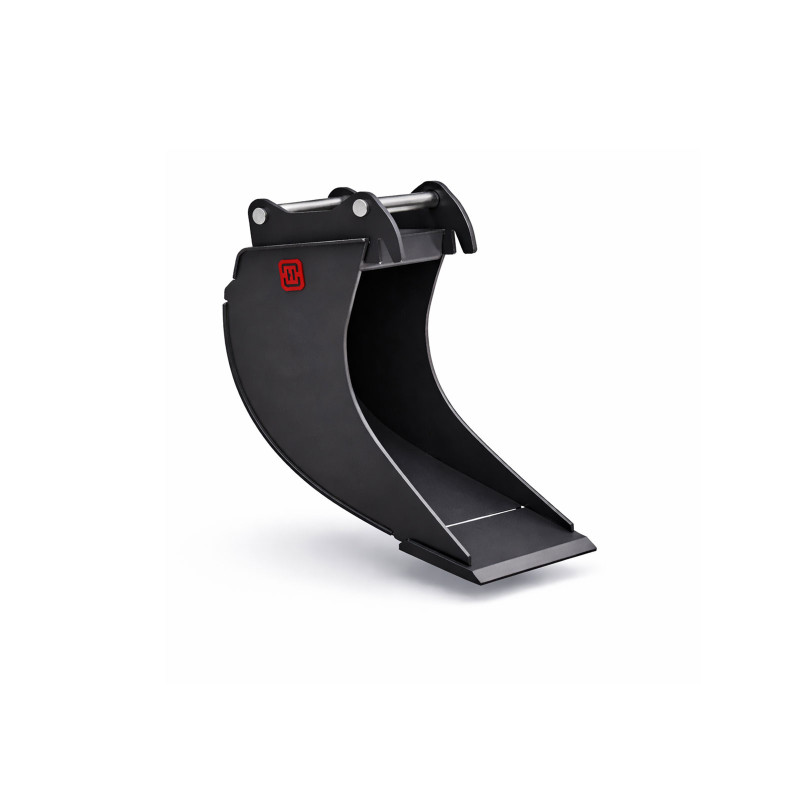

Cable bucket 300mm CW05 P70 class 2-3t

Name: Cable bucket 300mm CW05 P70 class 2-3t
Brand: Solid Hitch
SKU: CB-S2-SH1-300-70-CW05
Price: 3702.30 PLN
Availability: InStock

3,702.30 zł

Tax included

Made to order Lead time: up to 6 business weeks

Other models:

Adapter

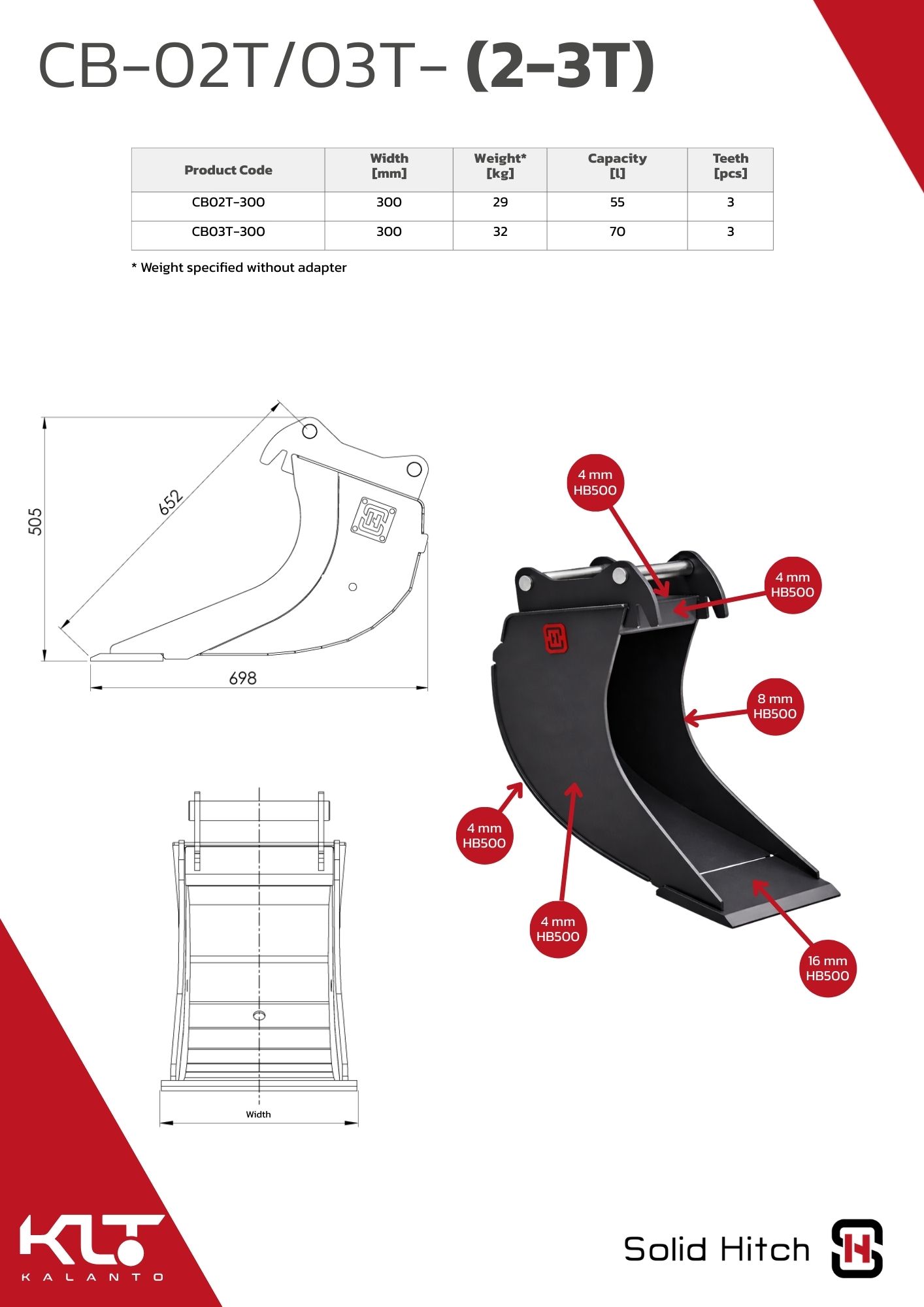

Specification

Width [mm]	Weight* [kg]	Capacity [l]
300	29	55
300	32	70

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Front side plate:	8 mm	Hardox 500 Tuf
Rear side plate:	4 mm	Hardox 500 Tuf
Roll sheet:	4 mm	Hardox 500 Tuf
Cutting edge:	16 mm	HB500
Top plate:	4 mm	Hardox 500 Tuf
Bend plate:	4 mm	Hardox 500 Tuf

Buckets for 2–3 ton excavators combine low weight with high strength. Their refined design ensures excellent performance in tasks such as trenching, foundation work or general site preparation.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference CB-S2-SH1-300-70-CW05

Data sheet

Lead time: up to 6 business weeks
For the machine: 2-3
Adapter: CW05
Width: 300
Weight without adapter: 32
Capacity: 70
Side/rear plate: 4 Hardox 500 Tuf
Front side plate: 8 Hardox 500 Tuf
Roll sheet: 4 Hardox 500 Tuf
Cutting edge: 16 HB 500
Top plate: 4 Hardox 500 Tuf
Bend plate: 4 Hardox 500 Tuf
