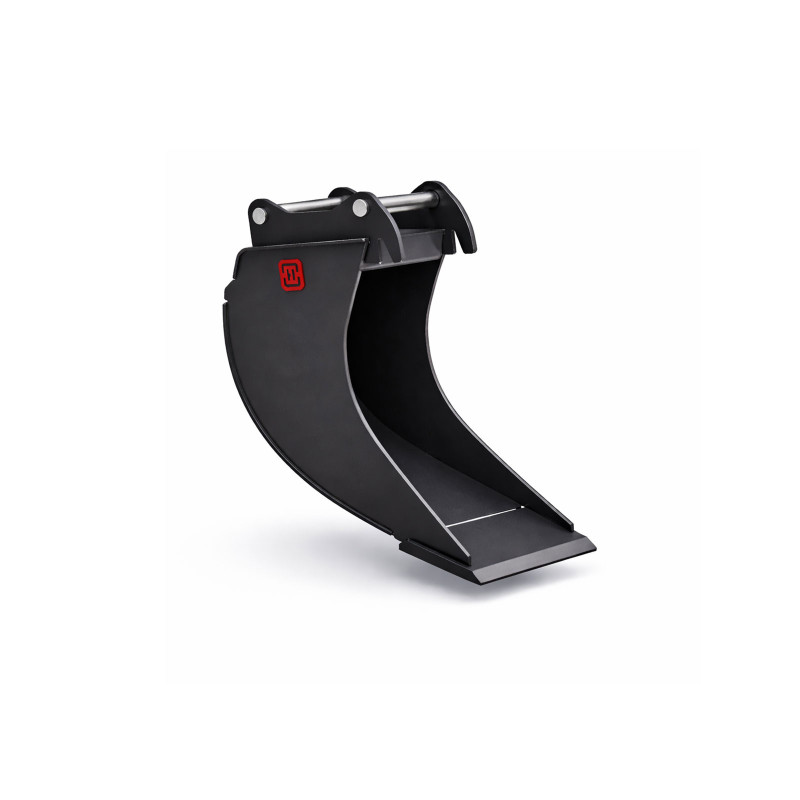

Cable bucket 300mm CW05 P55 class 2-3t
    Cable bucket 300mm CW05 P55 class 2-3t

Cable bucket 300mm CW05 P55 class 2-3t

3,855.68 zł
Tax included

Buckets compatible with 2–3 ton excavators offer excellent durability thanks to reinforced construction and high-quality materials. Their optimized shape improves digging efficiency and reduces machine wear during operation.

Width [mm] Weight* [kg] Capacity [l]
300 29 55
300 32 70

* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
Quantity
Add to wishlist
Made to order. Delivery time up to 6 weeks.

The main components are made of the following materials and thicknesses:

Thickness Material
Front side plate: 8 mm Hardox 500 Tuf
Rear side plate: 4 mm Hardox 500 Tuf
Roll sheet: 4 mm Hardox 500 Tuf
Cutting edge: 16 mm HB500
Top plate: 4 mm Hardox 500 Tuf
Bend plate: 4 mm Hardox 500 Tuf

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

CB-S2-SH1-300-55-CW05

Data sheet

Lead time
up to 6 business days weeks
For the machine
2-3t
Adapter
CW05
Width
300mm
Weight without adapter
29kg
Capacity
55 l
Side/rear plate
4mm Hardox 500 Tuf
Front side plate
8mm Hardox 500 Tuf
Roll sheet
4mm Hardox 500 Tuf
Cutting edge
16mm HB 500
Top plate
4mm Hardox 500 Tuf
Bend plate
4mm Hardox 500 Tuf
