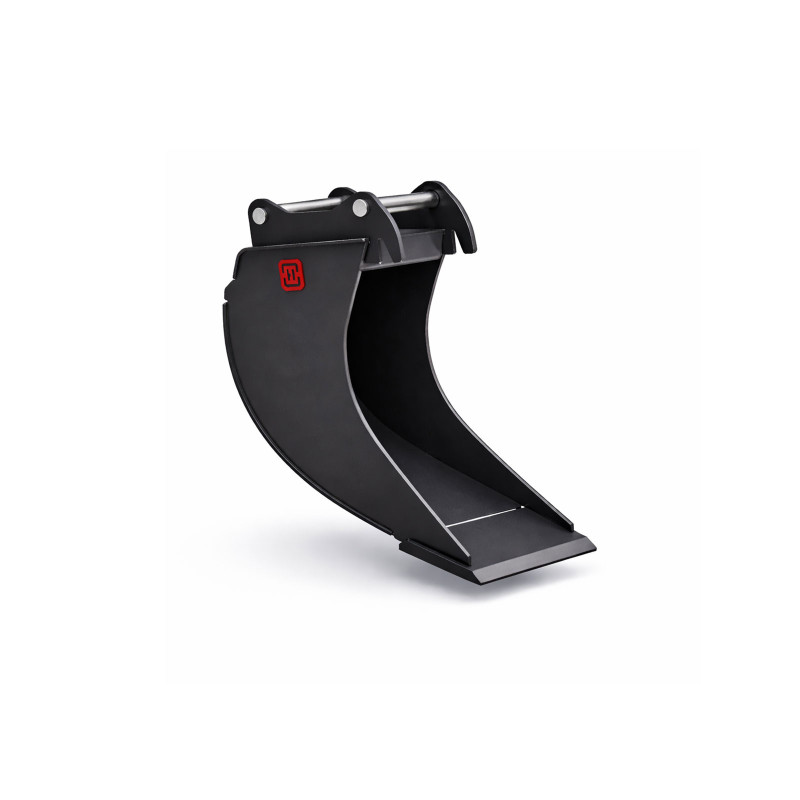

Cable bucket 300mm S40 P55 class 2-3t
3,125.80 zł
Tax included
Buckets for 2–3 ton excavators are designed for precise earthworks and high durability. Their solid construction ensures smooth digging, and the option to equip various types of teeth increases their versatility on construction sites.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 300 | 29 | 55 |
| 300 | 32 | 70 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Front side plate: | 8 mm | Hardox 500 Tuf |
| Rear side plate: | 4 mm | Hardox 500 Tuf |
| Roll sheet: | 4 mm | Hardox 500 Tuf |
| Cutting edge: | 16 mm | HB500 |
| Top plate: | 4 mm | Hardox 500 Tuf |
| Bend plate: | 4 mm | Hardox 500 Tuf |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
CB-S2-SH1-300-55-S40
Data sheet
- Lead time
- up to 6 business days weeks
- For the machine
- 2-3t
- Adapter
- S40
- Width
- 300mm
- Weight without adapter
- 29kg
- Capacity
- 55 l
- Side/rear plate
- 4mm Hardox 500 Tuf
- Front side plate
- 8mm Hardox 500 Tuf
- Roll sheet
- 4mm Hardox 500 Tuf
- Cutting edge
- 16mm HB 500
- Top plate
- 4mm Hardox 500 Tuf
- Bend plate
- 4mm Hardox 500 Tuf
