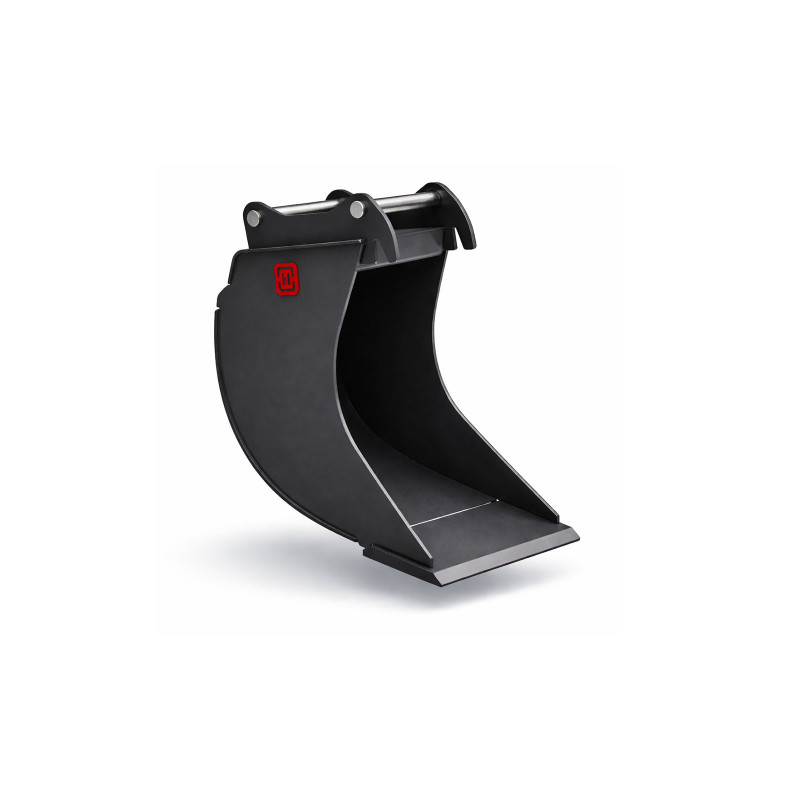

CB cable buckets equipped with a quick-coupler adapter are designed for efficient and fast operation. HARDOX 500 TUF used throughout the structure guarantees low weight and superior wear resistance compared to conventional buckets. They can be fitted with either welded or bolt-on teeth.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 250 | 16 | 30 |
| 300 | 30 | 44 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Front side plate: | 8 mm | Hardox 500 Tuf |
| Rear side plate: | 4 mm | Hardox 500 Tuf |
| Roll sheet: | 4 mm | Hardox 500 Tuf |
| Cutting edge: | 16 mm | HB500 |
| Top plate: | 4 mm | Hardox 500 Tuf |
| Bend plate: | 4 mm | Hardox 500 Tuf |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
