Class: 0-2 T
Width: 250
Adapter: CW05

Cable bucket 250mm CW05 class 0-2t

Name: Cable bucket 250mm CW05 class 0-2t
Brand: Solid Hitch
SKU: CB-S1-SH1-250-CW05
Price: 1840.57 PLN
Availability: InStock

1,840.57 zł

Tax included

Made to order Lead time: up to 6 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]
250	16	30
300	30	44

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Front side plate:	8 mm	Hardox 500 Tuf
Rear side plate:	4 mm	Hardox 500 Tuf
Roll sheet:	4 mm	Hardox 500 Tuf
Cutting edge:	16 mm	HB500
Top plate:	4 mm	Hardox 500 Tuf
Bend plate:	4 mm	Hardox 500 Tuf

CB cable buckets are designed for use with a quick-coupler adapter, enabling easy attachment and tool changes. The all-HARDOX 500 TUF design ensures reduced weight and increased wear resistance. Users can choose between welded or bolt-on teeth versions.

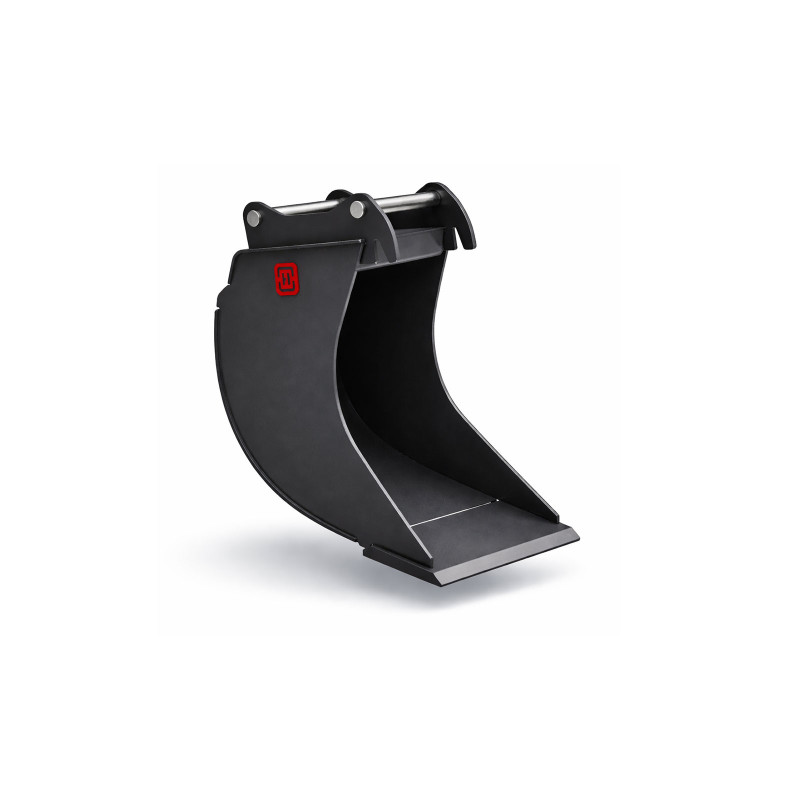

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference CB-S1-SH1-250-CW05

Data sheet

Lead time: up to 6 business weeks
For the machine: 0-1
1-2
Adapter: CW05
Width: 250
Weight without adapter: 16
Capacity: 30
Side/rear plate: 4 Hardox 500 Tuf
Front side plate: 8 Hardox 500 Tuf
Roll sheet: 4 Hardox 500 Tuf
Cutting edge: 16 HB 500
Top plate: 4 Hardox 500 Tuf
Bend plate: 4 Hardox 500 Tuf
