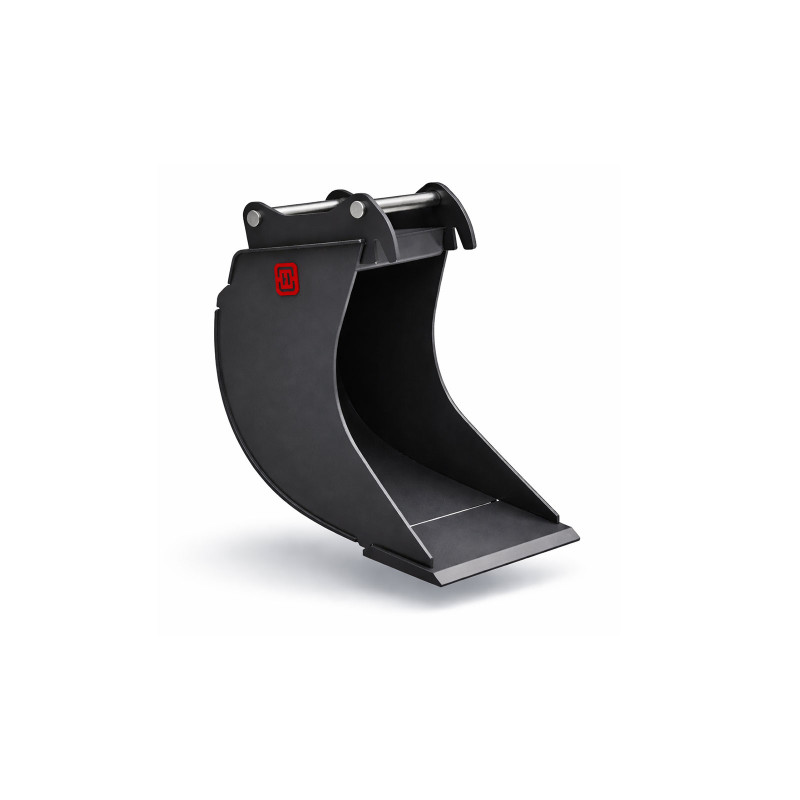

Cable bucket 250mm MS01SY class 0-2t
1,570.83 zł
Tax included
The offered cable buckets (CB) are designed for mounting via a quick-coupler adapter. Using HARDOX 500 TUF steel results in lower weight and greatly improved wear resistance compared to standard models. Depending on the application, they can be fitted with bolt-on or welded teeth.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 250 | 16 | 30 |
| 300 | 30 | 44 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Front side plate: | 8 mm | Hardox 500 Tuf |
| Rear side plate: | 4 mm | Hardox 500 Tuf |
| Roll sheet: | 4 mm | Hardox 500 Tuf |
| Cutting edge: | 16 mm | HB500 |
| Top plate: | 4 mm | Hardox 500 Tuf |
| Bend plate: | 4 mm | Hardox 500 Tuf |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
CB-S1-SH1-250-MS01SY
Data sheet
- Lead time
- up to 6 business days weeks
- For the machine
- 0-2t
3-4t - Adapter
- MS01SY
- Width
- 250mm
- Weight without adapter
- 16kg
- Capacity
- 30 l
- Side/rear plate
- 4mm Hardox 500 Tuf
- Front side plate
- 8mm Hardox 500 Tuf
- Roll sheet
- 4mm Hardox 500 Tuf
- Cutting edge
- 16mm HB 500
- Top plate
- 4mm Hardox 500 Tuf
- Bend plate
- 4mm Hardox 500 Tuf
