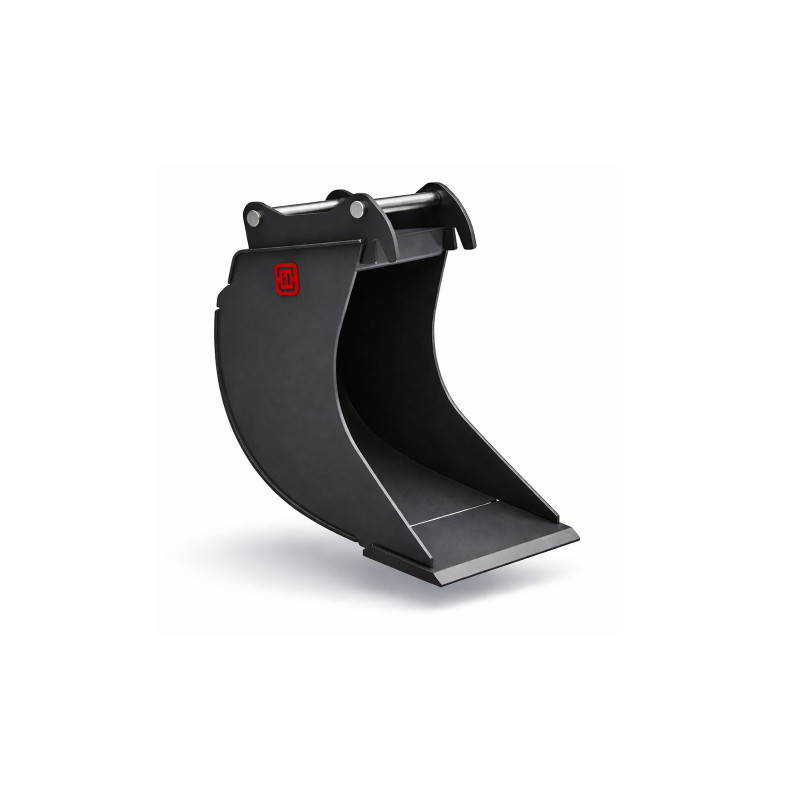

Cable bucket 250mm S30/180 class 0-2t
1,496.79 zł
Tax included
Cable buckets (CB) are available with a quick-coupler adapter, enabling fast and convenient mounting. The full HARDOX 500 TUF construction makes them lighter than competing buckets while significantly increasing wear resistance and durability. They can be equipped with welded or bolt-on teeth.

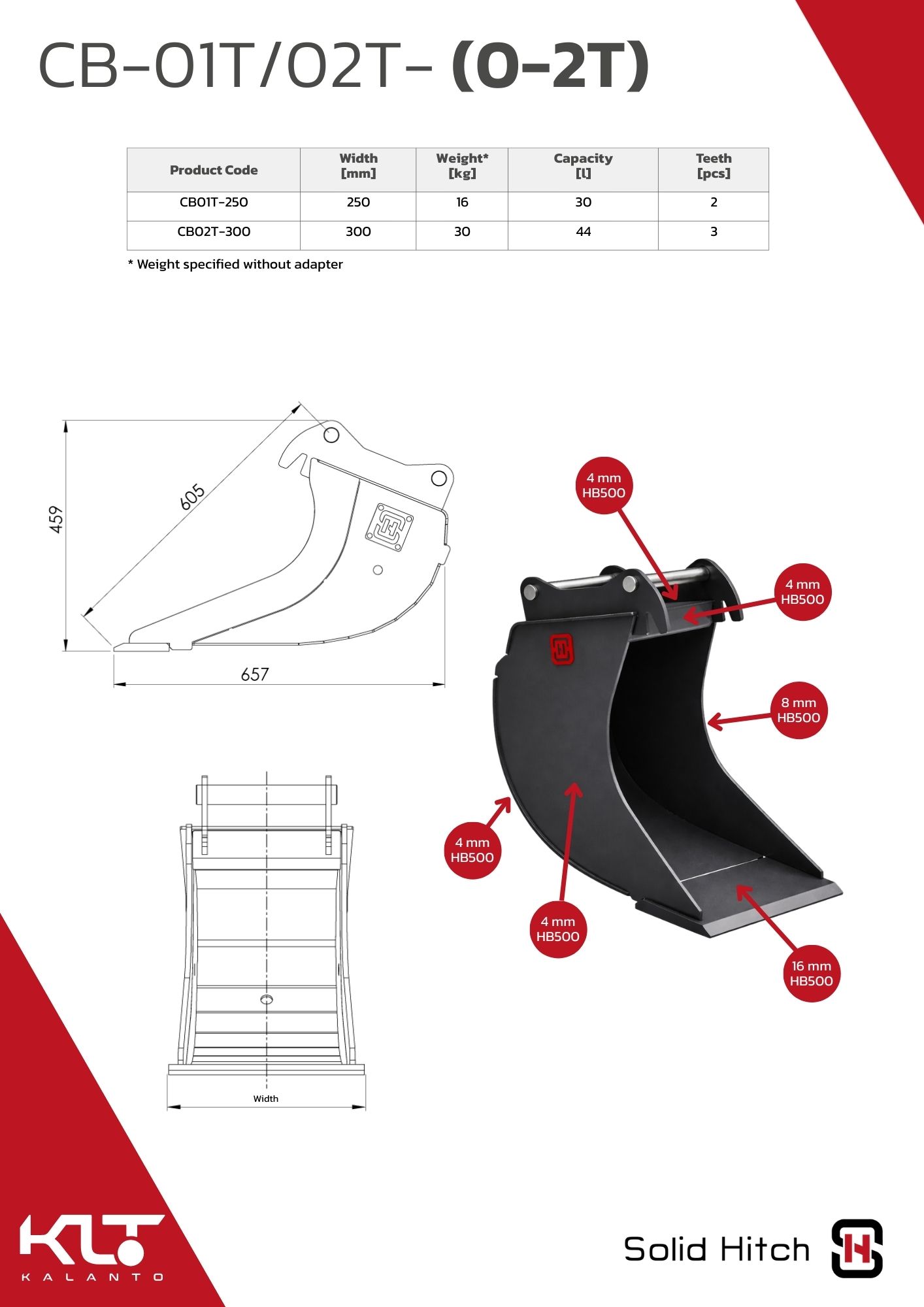

| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 250 | 16 | 30 |
| 300 | 30 | 44 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Front side plate: | 8 mm | Hardox 500 Tuf |
| Rear side plate: | 4 mm | Hardox 500 Tuf |
| Roll sheet: | 4 mm | Hardox 500 Tuf |
| Cutting edge: | 16 mm | HB500 |
| Top plate: | 4 mm | Hardox 500 Tuf |
| Bend plate: | 4 mm | Hardox 500 Tuf |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
CB-S1-SH1-250-S30/180
Data sheet
- Lead time
- up to 6 business days weeks
- For the machine
- 0-2t
3-4t - Adapter
- S30/180
- Width
- 250mm
- Weight without adapter
- 16kg
- Capacity
- 30 l
- Side/rear plate
- 4mm Hardox 500 Tuf
- Front side plate
- 8mm Hardox 500 Tuf
- Roll sheet
- 4mm Hardox 500 Tuf
- Cutting edge
- 16mm HB 500
- Top plate
- 4mm Hardox 500 Tuf
- Bend plate
- 4mm Hardox 500 Tuf
