Ditch cleaning bucket 1600mm S45 class 4-6t
3,915.09 zł
Tax included
The TBS-S4-V1-1600-S45-RB is a professional grading bucket designed for 4–6-ton excavators, suitable for advanced earthmoving, profiling and finishing work. The large working width allows rapid material handling on a broader scale, significantly reducing task completion times. Built from wear-resistant steel and reinforced in key stress areas, it delivers excellent durability even in harsh conditions. The ergonomic, smoothly curved bucket shell provides uniform material distribution and produces a clean, even finish without the need for additional corrections.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1400 | 136 | 221,5 |
| 1600 | 154 | 255,5 |
* The given bucket weight does not include the weight of the adapter.

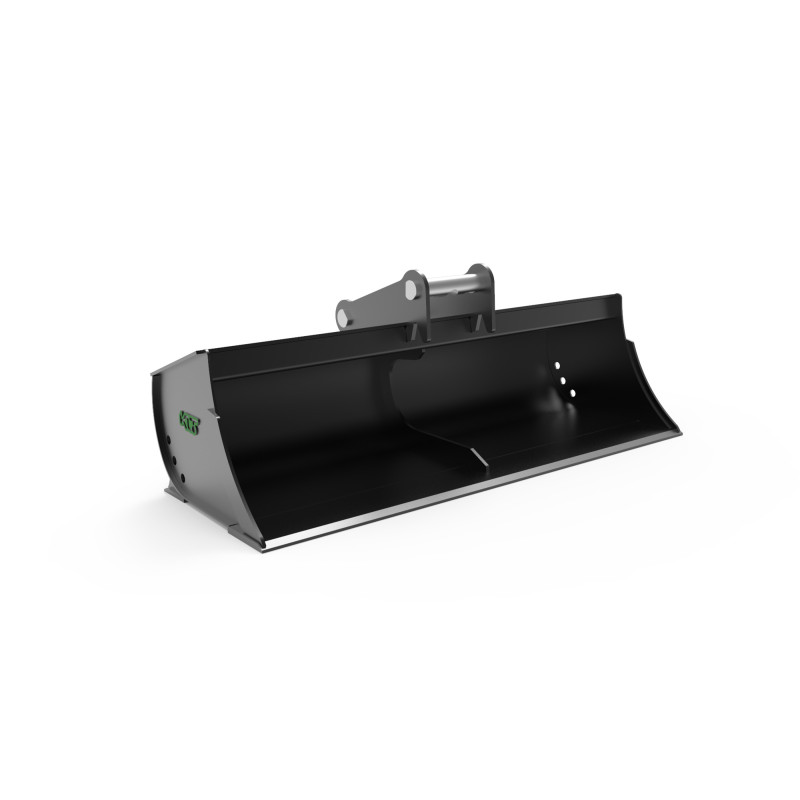

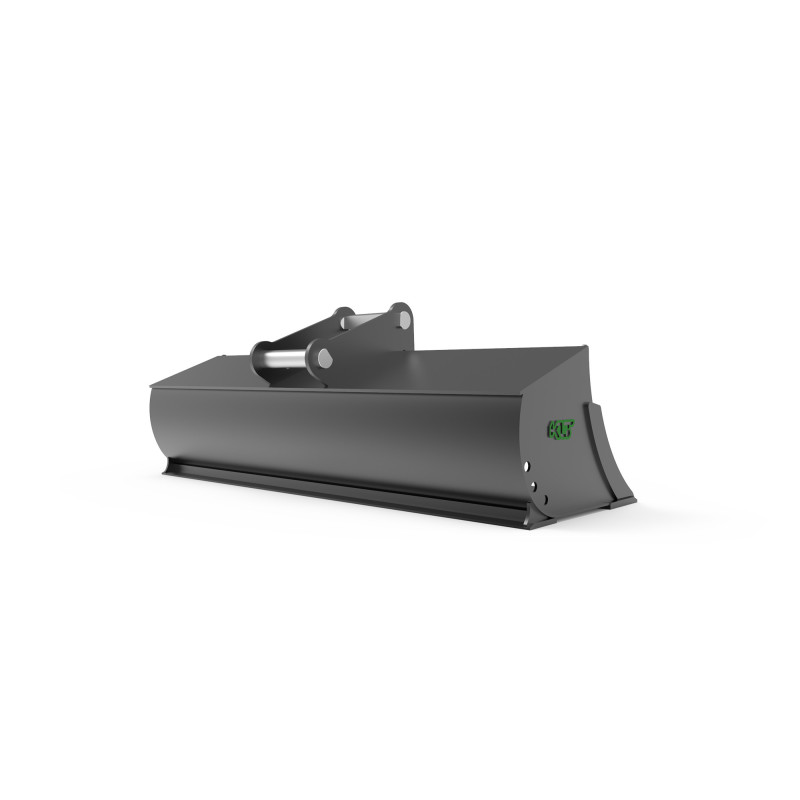

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Rear blade: | 12x110 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 6 mm | S355 |
| Internal reinforcement: | 10 mm | S355 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
TBS-S4-V1-1600-S45-RB
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 4-5t
5-6t - Adapter
- S45
- Width
- 1600mm
- Weight without adapter
- 154kg
- Capacity
- 255,5 l
- Side/rear plate
- 6mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Cutting edge
- 16x150mm HB400
- Rear blade
- 12x110mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 8mm S355
- Bend plate
- 6mm S355
