  • Class: 2-3 T
  • Width: 700
  • Adapter: with pins

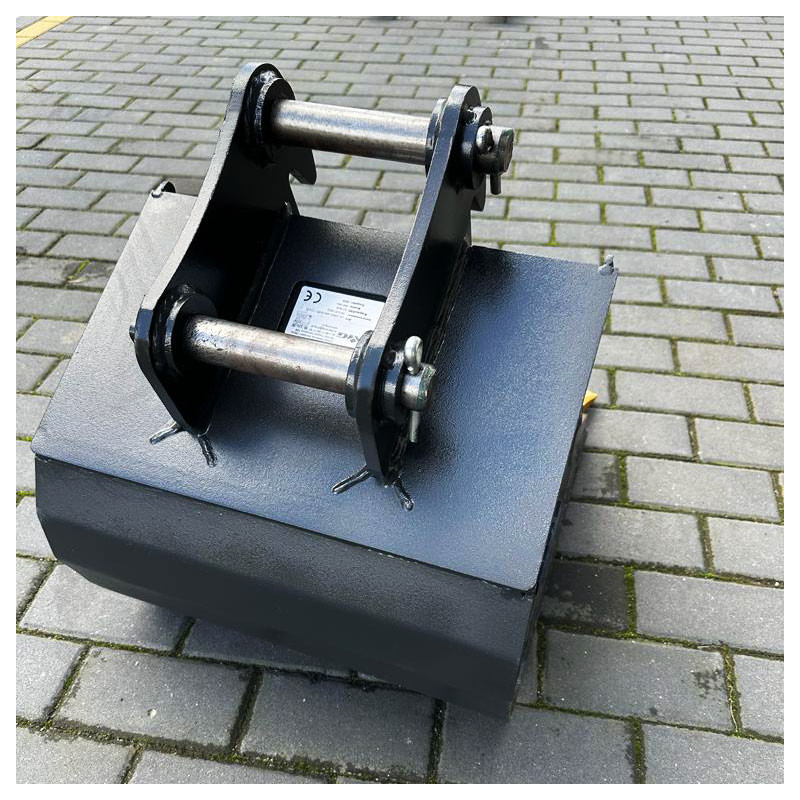

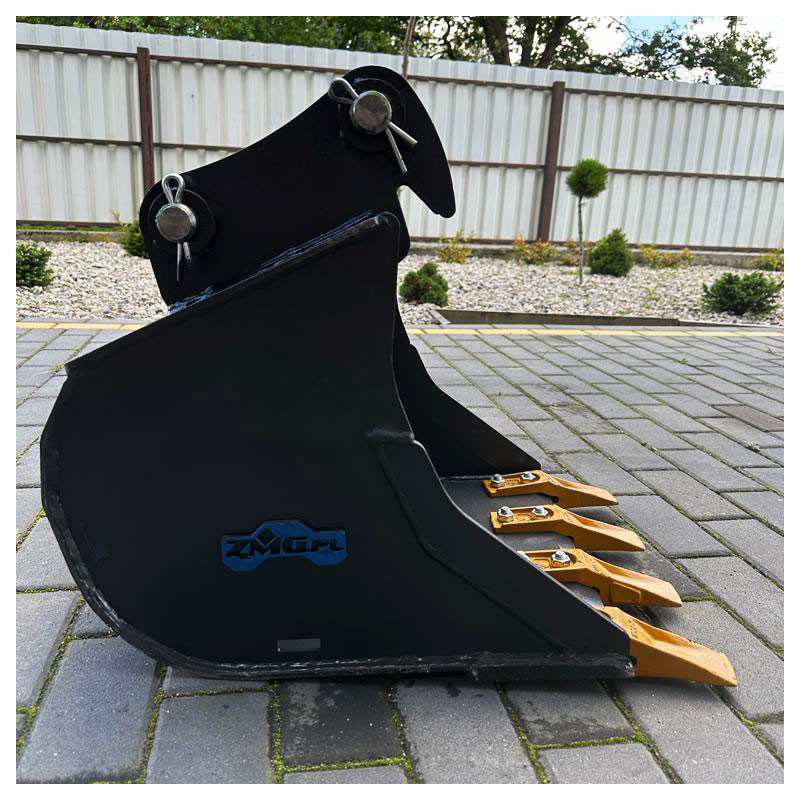

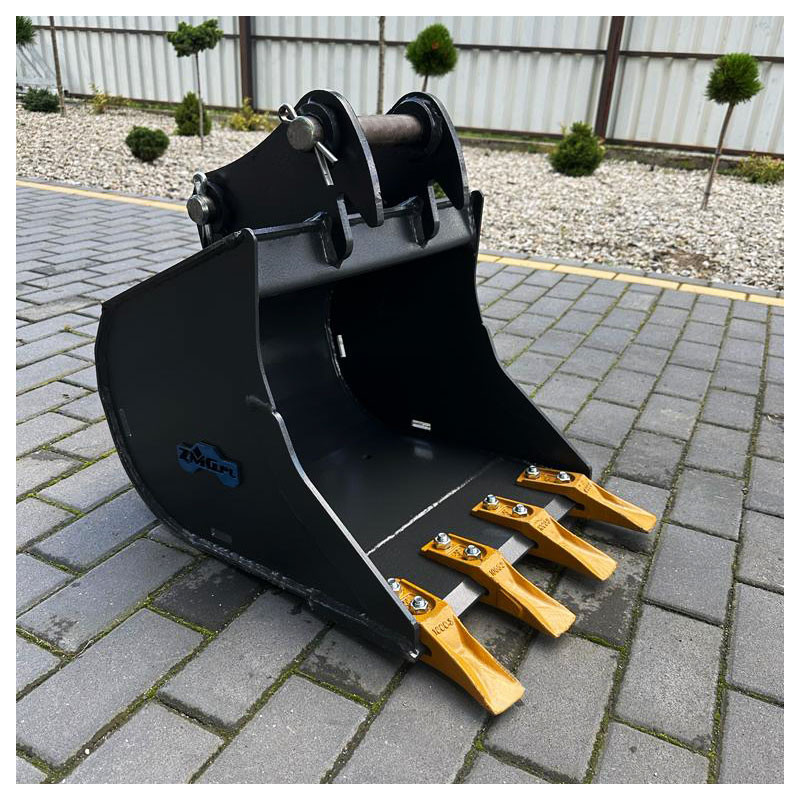

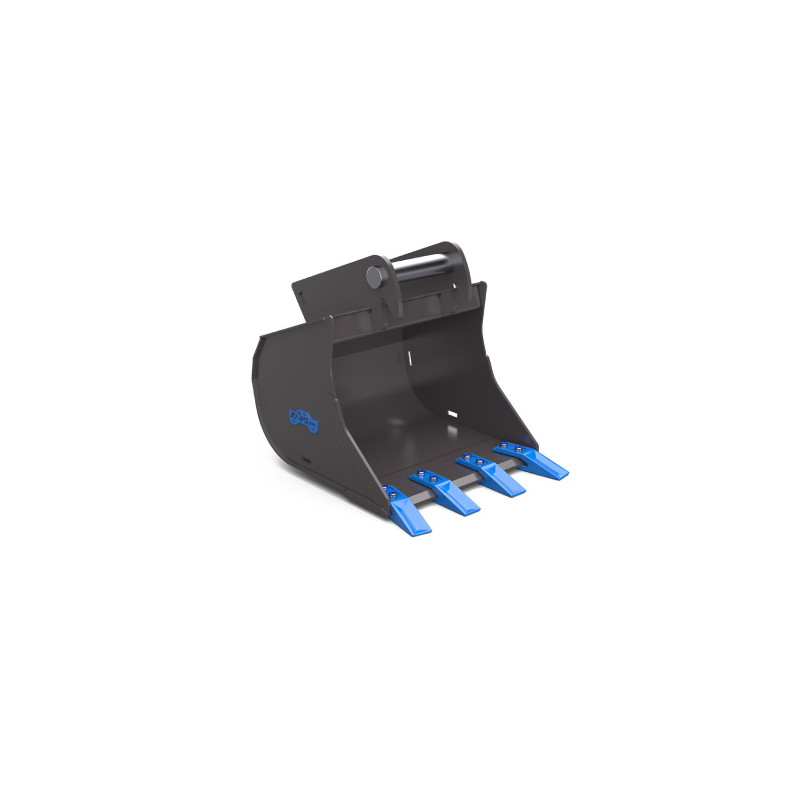

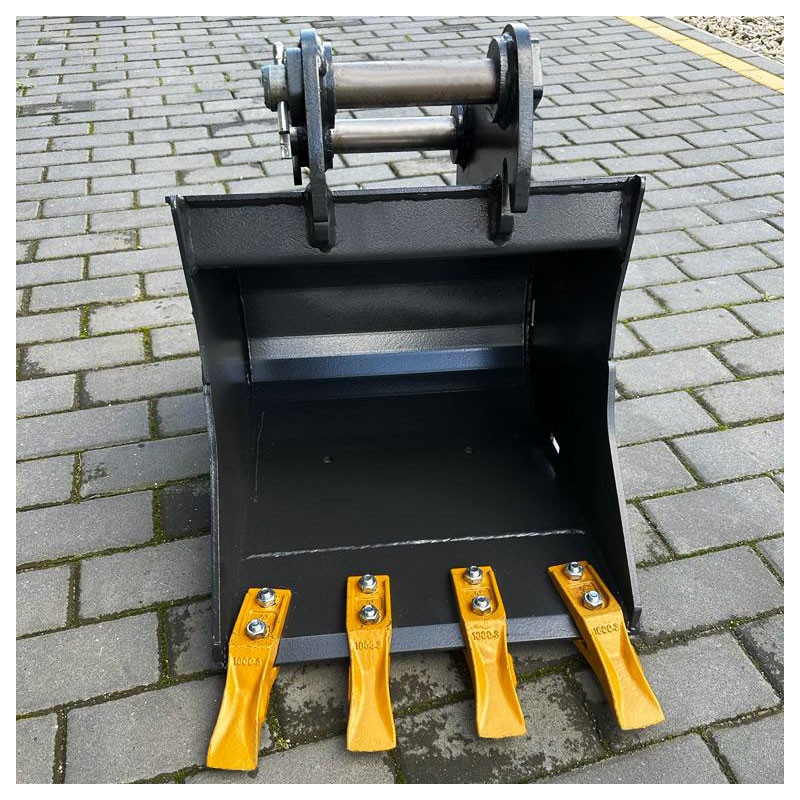

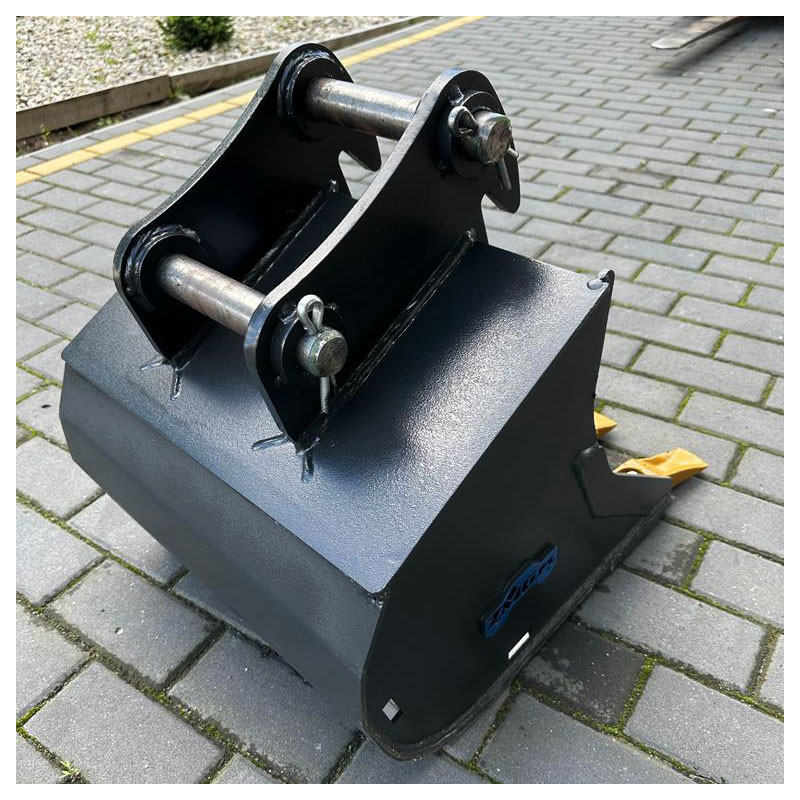

Digging bucket 700mm with pins class 2-3t
Digging bucket 700mm with pins class 2-3t
Digging bucket 700mm with pins class 2-3t
Digging bucket 700mm with pins class 2-3t
Digging bucket 700mm with pins class 2-3t
Digging bucket 700mm with pins class 2-3t
Digging bucket 700mm with pins class 2-3t
    Digging bucket 700mm with pins class 2-3t
    Digging bucket 700mm with pins class 2-3t
    Digging bucket 700mm with pins class 2-3t
    Digging bucket 700mm with pins class 2-3t
    Digging bucket 700mm with pins class 2-3t
    Digging bucket 700mm with pins class 2-3t
    Digging bucket 700mm with pins class 2-3t

Digging bucket 700mm with pins class 2-3t

2,296.41 zł
Tax included
In stock Lead time: up to 3 business weeks

The LK-ZMG2-700-ZSW is a 700 mm digging bucket created to meet the demands of small excavators in the 2–3 t class. It performs well in earthmoving, excavation, grading, and breaking through soils of varying hardness. Pin mounting provides a traditional, proven and robust connection between the attachment and the excavator arm, independent of any quick coupler system. Robust build and carefully selected materials make the bucket resistant to mechanical damage, maintaining geometry throughout the product's lifetime.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Quantity
Add to wishlist

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG2

LK-ZMG2-700-ZSW

Data sheet

Lead time
up to 3 business weeks
For the machine
2-3
Adapter
with pins
Width
700
Weight without adapter
64
Capacity
100
Side/rear plate
5 S355
Side cutters
8 HB400
Roll sheet
5 S355
Cutting edge
16 HB500
Top plate
5 S355
Bend plate
5 S355
Number of teeth
4
Type of teeth
JCB Mini
