Class: 2-3 T
Width: 800
Adapter: S40

Digging bucket 800mm S40 class 2-3t

Name: Digging bucket 800mm S40 class 2-3t
Brand: Kalanto
SKU: DBS-S2-V1-800-S40
Price: 2206.62 PLN
Availability: InStock

2,206.62 zł

Tax included

In stock Lead time: up to 48 hours

Other models:

Width

Adapter

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	16 x 150 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
	Type
Teeth:	E11.4

Alternative products with a different lead time:

up to 3 business weeks ZMG 2,322.24 zł

DBS-S2-V1-800-S40 offers a robust and practical solution for mini excavators performing trenching, foundation excavation and terrain preparation.

The bucket's optimized geometry ensures precision, performance and high operator comfort.

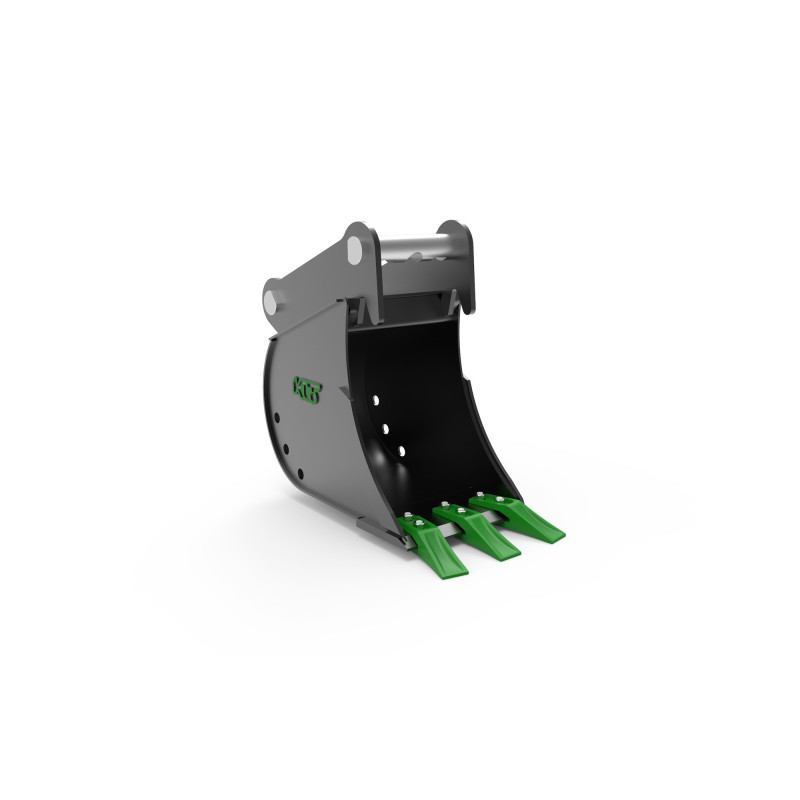

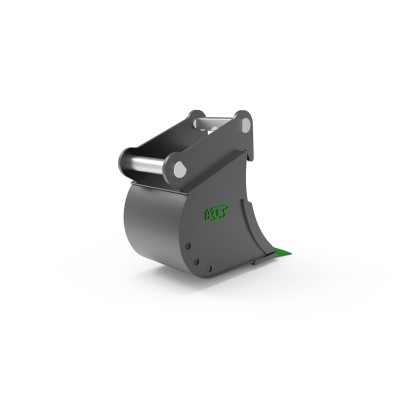

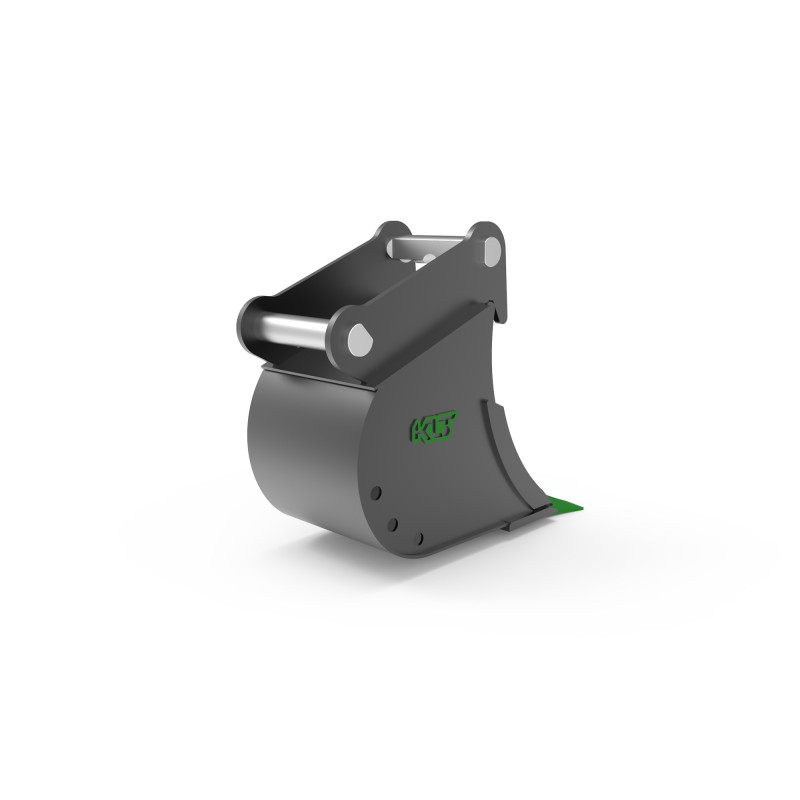

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S2-V1-800-S40

Data sheet

Lead time: up to 48 hours
For the machine: 2-3
Adapter: S40
Width: 800
Weight without adapter: 67
Side/rear plate: 5 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Cutting edge: 16x150 HB400
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 5
Type of teeth: E11.4

Specific References

EAN13: 5908159220933
