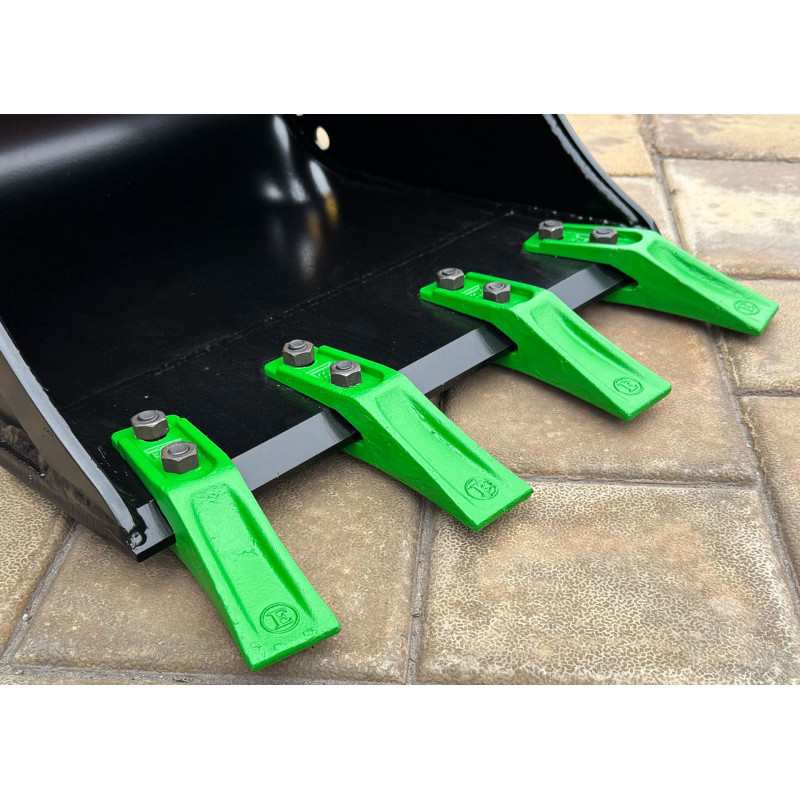

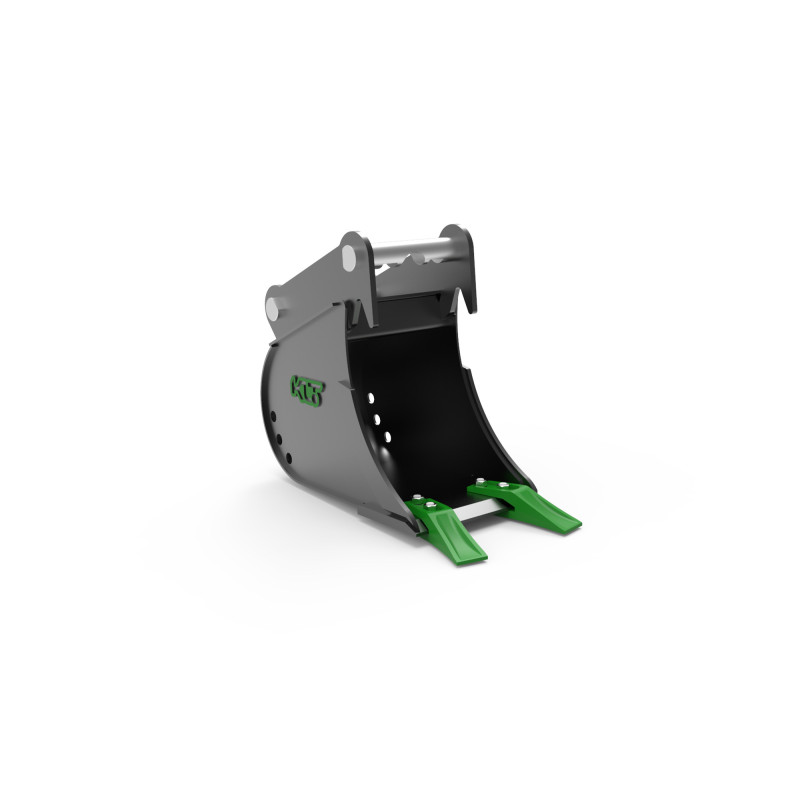

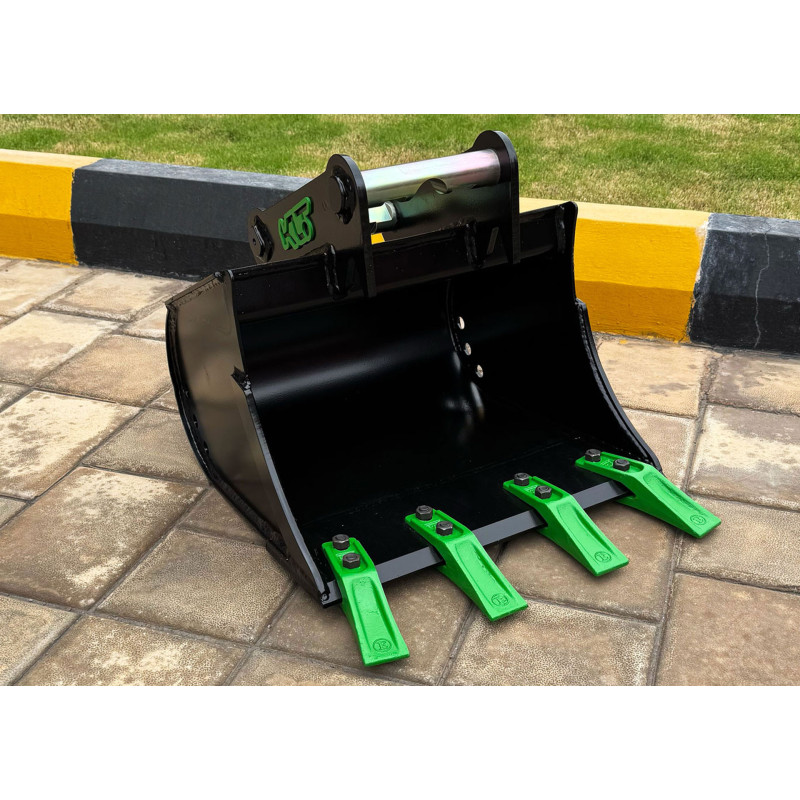

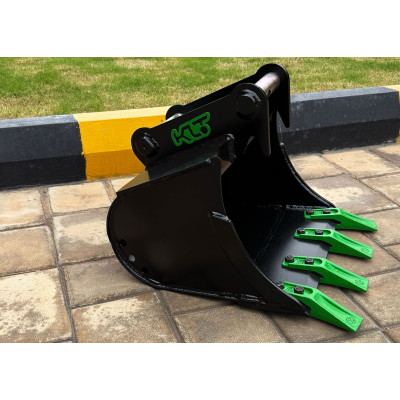

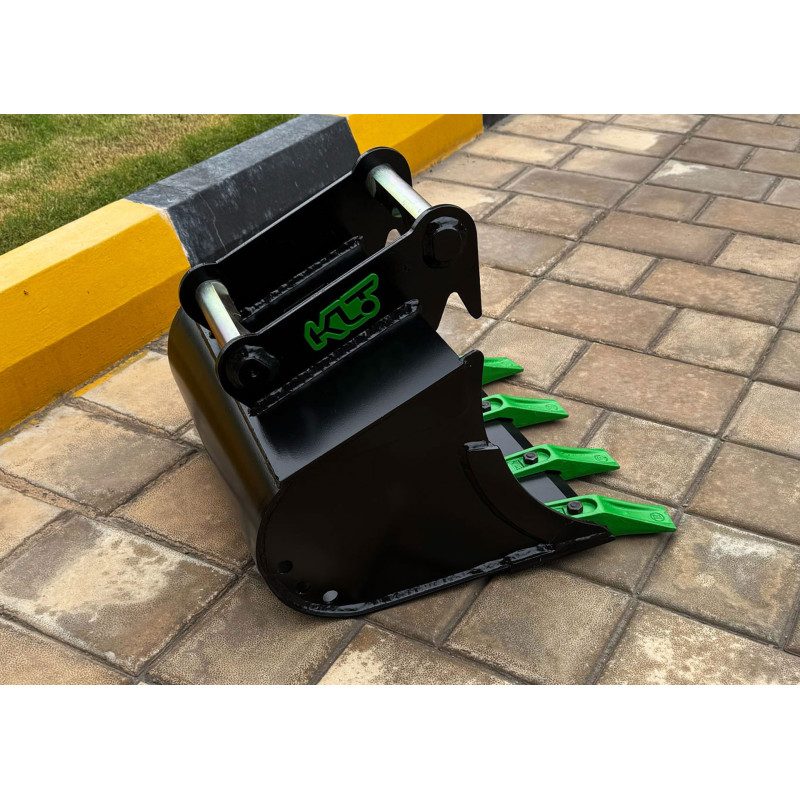

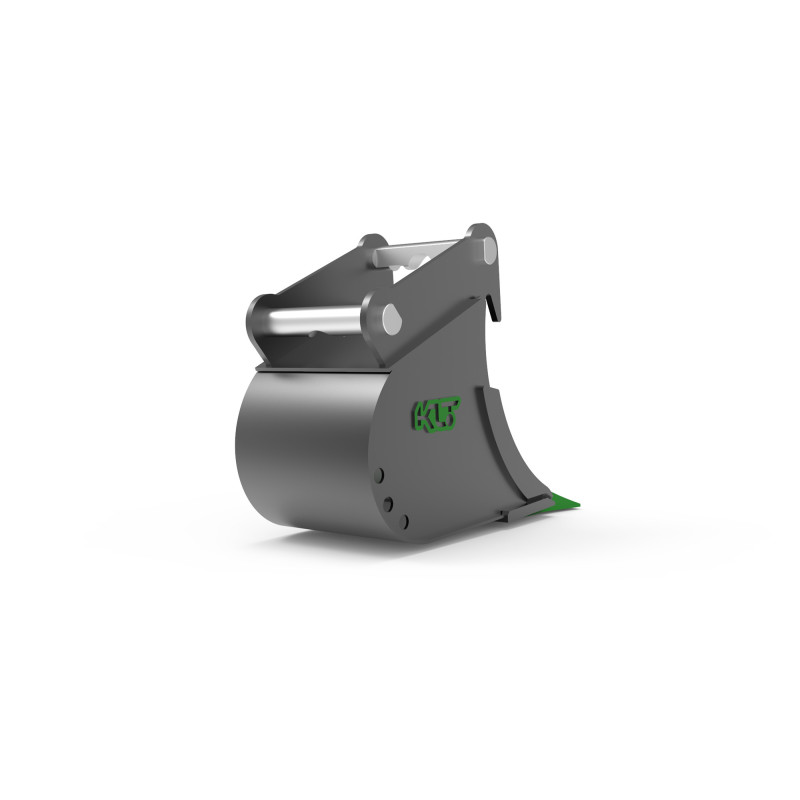

Digging bucket 600mm S30/150 class 0-2t
1,346.85 zł
Tax included
The DBS-S1-V1-600-S30/150 is a precision digging bucket made for mini excavators between 0 and 2 tons. Built for earthmoving tasks in confined environments, it excels in trenching, installation projects, and garden-related jobs.
With high-grade steel and strategically reinforced areas, it ensures superior durability. The optimized shape allows efficient material handling, speeding up work even in challenging soil conditions.
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
|---|---|---|---|
| 250 | 21 | 25 | 2 |
| 300 | 25 | 31 | 3 |
| 400 | 30 | 43 | 3 |
| 500 | 37 | 55 | 4 |
| 600 | 42 | 67 | 4 |
| 800 | 53 | 91 | 5 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 4 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Type | ||
| Teeth: | E11.4 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
DBS-S1-V1-600-S30/150
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 0-2t
3-4t - Adapter
- S30/150
- Width
- 600mm
- Weight without adapter
- 42kg
- Capacity
- 67 l
- Side/rear plate
- 4mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 4mm S355
- Cutting edge
- 16x150mm HB400
- Top plate
- 5mm S355
- Bend plate
- 5mm S355
- Number of teeth
- 4pcs
- Type of teeth
- E11.4
