Class: 4-6 T
Width: 500
Adapter: Without adapter

Digging bucket 500mm without adapter class 4-6t

Digging bucket 500mm without adapter class 4-6t

Name: Digging bucket 500mm without adapter class 4-6t
Brand: Kalanto
SKU: DBS-S4-V1-500-WOA
Price: 2391.12 PLN
Availability: InStock

2,391.12 zł

Tax included

In stock Lead time: up to 48 hours

Other models:

Width

Adapter

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Front side plate:	10mm	S355
Rear side plate:	5 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	20 x 150 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	5 mm	S355
Rear wear strips:	5 mm	HB400
	Type
Teeth:	E25

Alternative products with a different lead time:

up to 3 business weeks ZMG 2,243.52 zł

This heavy-duty DBS-S4-V1-500-WOA bucket is engineered to withstand intensive operation with 4–6 ton excavators. It performs strongly in road construction, infrastructure projects, foundations and general earthmoving applications. Ergonomic geometry ensures smooth operation, fast material collection and increased work speed.

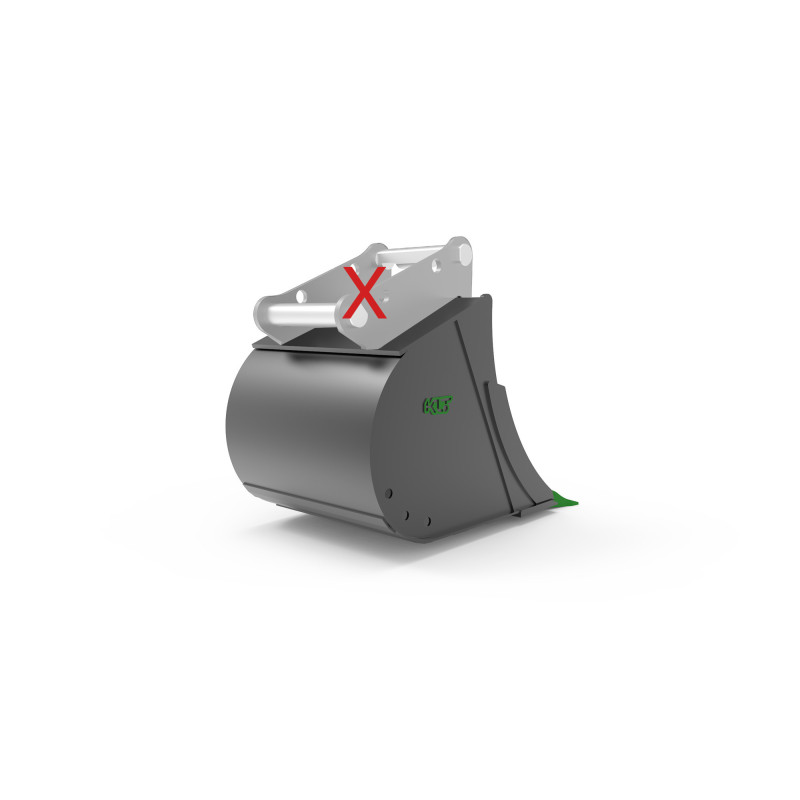

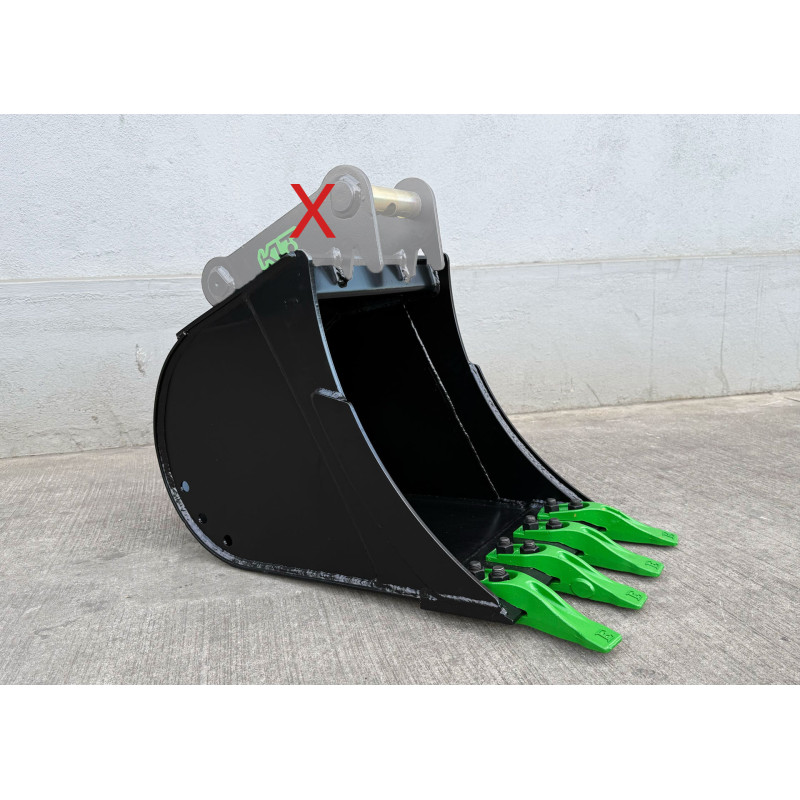

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S4-V1-500-WOA

Data sheet

Lead time: up to 48 hours
For the machine: 4-5
5-6
Adapter: Without adapter
Width: 500
Weight without adapter: 85
Capacity: 132
Side/rear plate: 5 S355
Front side plate: 10 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Rear wear strips: 5 HB400
Cutting edge: 20x150 HB400
Top plate: 8 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: E25

Specific References

EAN13: 5908159221251

16 other products in the same category:

Class: 0-2 T
Width: 500
Adapter: S30/180

Kalanto

Digging bucket 500mm S30/180 class 0-2t

1,215.24 zł

In stock

Designed with compact performance in mind, the DBS-S1-V1-500-S30/180 bucket fits mini excavators up to 2 tons. It is perfect for narrow-space excavation, including installation trenches, utility...

Class: 6-9 T
Width: 900
Adapter: CW10

ZMG

Digging bucket 900mm CW10 class 6-8t

4,300.08 zł

In stock

The LK-ZMG4-900-CW10 digging bucket with a working width of 900 mm is a sturdy tool designed for excavators in the 6–8 t class. It is perfectly suited for foundation excavation, earthmoving, and...

Class: 6-9 T
Width: 800
Adapter: MS08SY

ZMG

Digging bucket 800mm MS08SY class 8-11t

5,327.13 zł

In stock

The LK-ZMG5-800-MS08SY is a 800 mm digging bucket created to meet the demands of heavy excavators in the 8–11 t class. It performs well in earthmoving, excavation, grading, and breaking through...

Class: 4-6 T
Width: 300
Adapter: S40

Kalanto

Digging bucket 300mm S40 class 4-6t

1,949.55 zł

In stock

Thanks to its enhanced durability, the DBS-S4-V1-300-S40is ideal for challenging terrains. Compatible with 4–6 ton excavators, it handles trenching, deep excavation and installation digging...

Class: 4-6 T
Width: 700
Adapter: S40

Solid Hitch

Digging bucket 700mm S40 class 4-6t

6,584.80 zł

Made to order

Excavator buckets in the S40 system come with CAT J teeth—either welded or bolted. Thanks to HARDOX 500 TUF steel, they are more wear-resistant and lighter compared to typical buckets without this...

Class: 0-2 T
Width: 700
Adapter: M03

ZMG

Digging bucket 700mm M03 class 0-2t

1,539.96 zł

In stock

The LK-ZMG1-700-M03 digging bucket, 700 mm wide, was developed specifically for mini and compact excavators up to 2 t. Its design allows efficient foundation trenching, earthmoving, and...

Class: 4-6 T
Width: 1000
Adapter: S40

ZMG

Digging bucket 1000mm S40 class 4-6t

3,892.95 zł

In stock

The LK-ZMG3-1000-S40 digging bucket with a working width of 1000 mm is a sturdy tool designed for medium-class excavators of 4–6 t. It is perfectly suited for foundation excavation, earthmoving,...

Class: 0-2 T
Width: 500
Adapter: M03

ZMG

Digging bucket 500mm M03 class 0-2t

1,317.33 zł

In stock

Model LK-ZMG1-500-M03 is a professional 500 mm digging bucket intended for mini and compact excavators up to 2 t. It excels in excavation work, soil removal, trenching, and all types of civil...

Class: 0-2 T
Width: 600
Adapter: CW05

Solid Hitch

Digging bucket 600mm CW05 class 0-2t

4,453.34 zł

Made to order

Precision-made quick-coupler buckets and the use of HARDOX 500 TUF provide long-lasting reliability and resistance to deformation. **The image is for illustrative purposes only. The order...

Class: 2-3 T
Width: 350
Adapter: M03

ZMG

Digging bucket 350mm M03 class 2-3t

1,434.18 zł

In stock

Model LK-ZMG2-350-M03 is a professional 350 mm digging bucket intended for small excavators in the 2–3 t class. It excels in excavation work, soil removal, trenching, and all types of civil...

Digging bucket 800mm without adapter class 6-8t

Class: 6-9 T
Width: 800
Adapter: Without adapter

ZMG

Digging bucket 800mm without adapter class 6-8t

3,237.36 zł

In stock

Model LK-ZMG4-800-WOA is a professional 800 mm digging bucket intended for excavators in the 6–8 t class. It excels in excavation work, soil removal, trenching, and all types of civil engineering...

Class: 3-4 T
Width: 400
Adapter: CW05

ZMG

Digging bucket 400mm CW05 class 3-4t

1,910.19 zł

In stock

Model LK-ZMG2-5-400-CW05 is a professional 400 mm digging bucket intended for excavators in the 3–4 t class. It excels in excavation work, soil removal, trenching, and all types of civil...

Class: 0-2 T
Width: 500
Adapter: MS01SY

Kalanto

Digging bucket 500mm MS01SY class 0-2t

1,215.24 zł

In stock

The compact DBS-S1-V1-500-MS01SY digging bucket is made specifically for mini excavators up to 2 tons. It excels in accurate excavation work within restricted areas, making it ideal for utility...

Class: 6-9 T
Width: 400
Adapter: S45

ZMG

Digging bucket 400mm S45 class 6-8t

2,772.42 zł

In stock

The LK-ZMG4-400-S45 digging bucket, 400 mm wide, was developed specifically for excavators in the 6–8 t class. Its design allows efficient foundation trenching, earthmoving, and underground...

Class: 0-2 T
Width: 450
Adapter: MS01

ZMG

Digging bucket 450mm MS01 class 0-2t

1,179.57 zł

In stock

The LK-ZMG1-450-MS01 is a 450 mm digging bucket created to meet the demands of mini and compact excavators up to 2 t. It performs well in earthmoving, excavation, grading, and breaking through...

Class: 2-3 T
Width: 400
Adapter: S30/180

Kalanto

Digging bucket 400mm S30/180 class 2-3t

1,453.86 zł

In stock

This digging bucket is intended for compact excavators operating in the 2–3 ton range. DBS-S2-V1-400-S30/180 ensures reliable performance in foundation excavation, trenching and general...

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
300	62	68	3
400	73	99	3
500	85	132	4
600	96	165	4
800	119	233	5
1000	141	300	5
