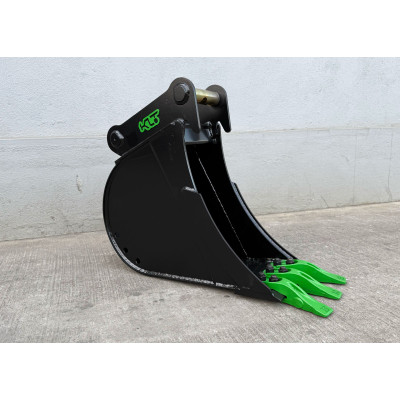

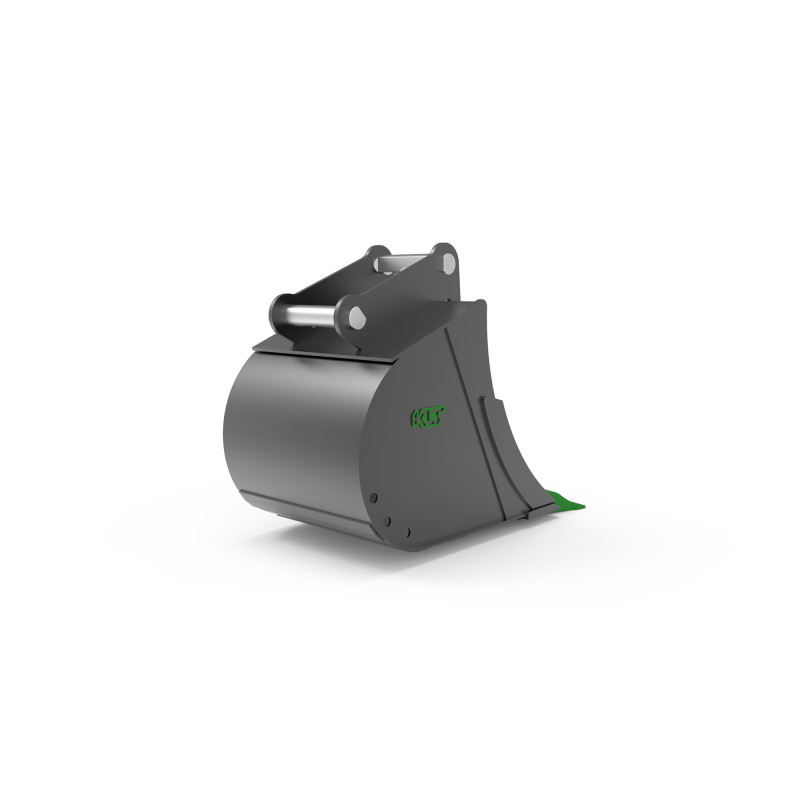

Digging bucket 300mm S40 class 4-6t
1,949.55 zł
Tax included
Thanks to its enhanced durability, the DBS-S4-V1-300-S40is ideal for challenging terrains. Compatible with 4–6 ton excavators, it handles trenching, deep excavation and installation digging with ease. Proper balance ensures stable, controlled and comfortable operation.
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 300 | 62 | 68 | 3 |
| 400 | 73 | 99 | 3 |
| 500 | 85 | 132 | 4 |
| 600 | 96 | 165 | 4 |
| 800 | 119 | 233 | 5 |
| 1000 | 141 | 300 | 5 |
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Front side plate: | 10mm | S355 |
| Rear side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 20 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Rear wear strips: | 5 mm | HB400 |
| Type | ||
| Teeth: | E25 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
DBS-S4-V1-300-S40
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 4-5t
5-6t - Adapter
- S40
- Width
- 300mm
- Weight without adapter
- 62kg
- Capacity
- 68 l
- Side/rear plate
- 5mm S355
- Front side plate
- 10mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Rear wear strips
- 5mm HB400
- Cutting edge
- 20x150mm HB400
- Top plate
- 8mm S355
- Bend plate
- 5mm S355
- Number of teeth
- 3pcs
- Type of teeth
- E25
