Class: 6-9 T
Width: 300
Adapter: MS08SY

Digging bucket 300mm MS08SY class 6-9t

Name: Digging bucket 300mm MS08SY class 6-9t
Brand: Kalanto
SKU: DBS-S5-V1-300-MS08SY
Price: 2627.28 PLN
Availability: InStock

2,627.28 zł Tax included

In stock Lead time up to 48 hours

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Lehnhoff system- MS08SY-without base plate

Reference: AD-WOP-MS08SY

Built for the MS08SY system, the AD-WOP-MS08SY is a durable base-plate-free adapter. It provides high precision during attachment and enables rapid tool coupling, significantly reducing retooling time.

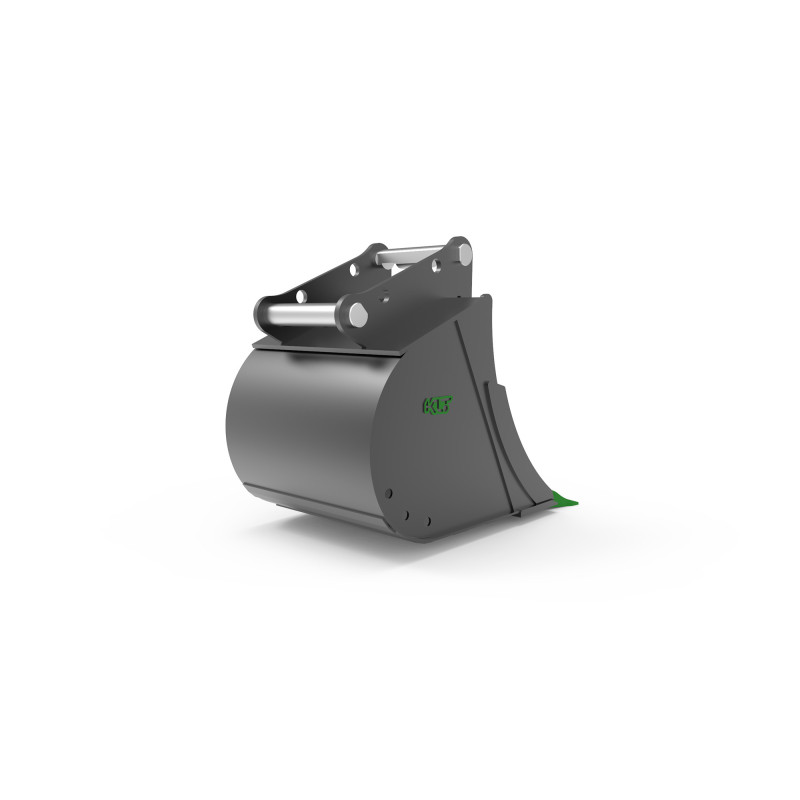

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Lead time: up to 48 hours
For the machine: 5-6, 6-7, 7-8, 8-9, 9-10
Adapter: MS08SY
Side plate: 16 S355
Pin diameter: 60
Inner width: 297
Pin spacing: 434
Weight: 29

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing* [mm]
MS01	40	185	225
MS01SY	40	185	255
MS03	50	205	283,6
MS03SY	50	205	322
MS08	60	295	381
MS08SY	60	297	434

*In the technical specification, refer to the spacing between the pin and the thrust plate.

Parameters

The main components are made of the following materials and thicknesses:

	MS01		MS01SY		MS03		MS03SY		MS08		MS08SY
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	10mm	S355	10mm	S355	12mm	S355	12mm	S355	16mm	S355	16mm	S355

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Front side plate:	12mm	S355
Rear side plate:	6 mm	S355
Roll sheet:	6 mm	S355
Cutting edge:	20 x 200 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	12 mm	S355
Bend plate:	10 mm	S355
Rear wear strips:	5 mm	HB400
	Type
Teeth:	E25

Watch video (2)

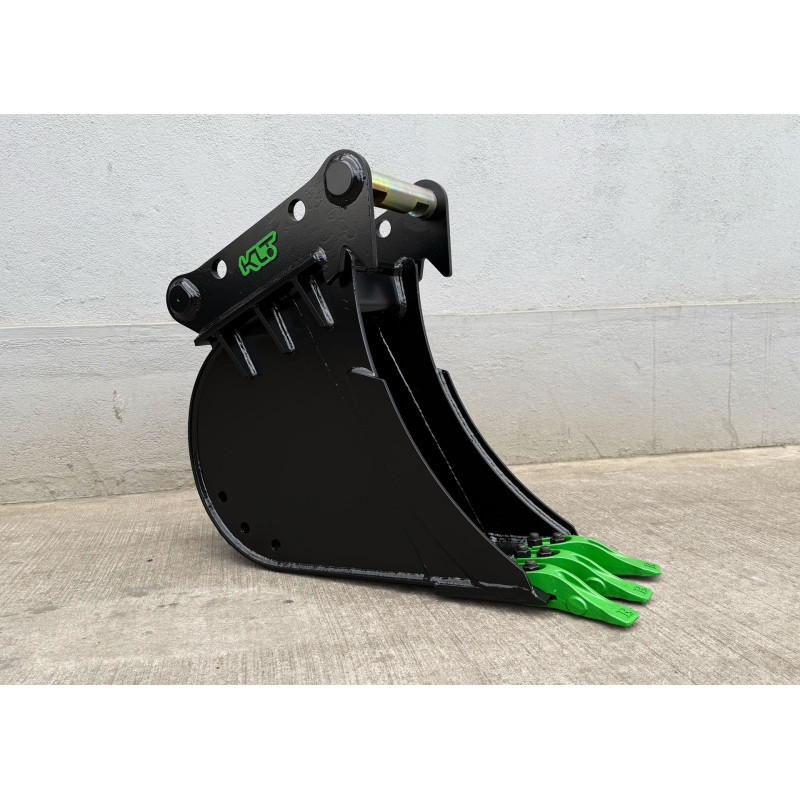

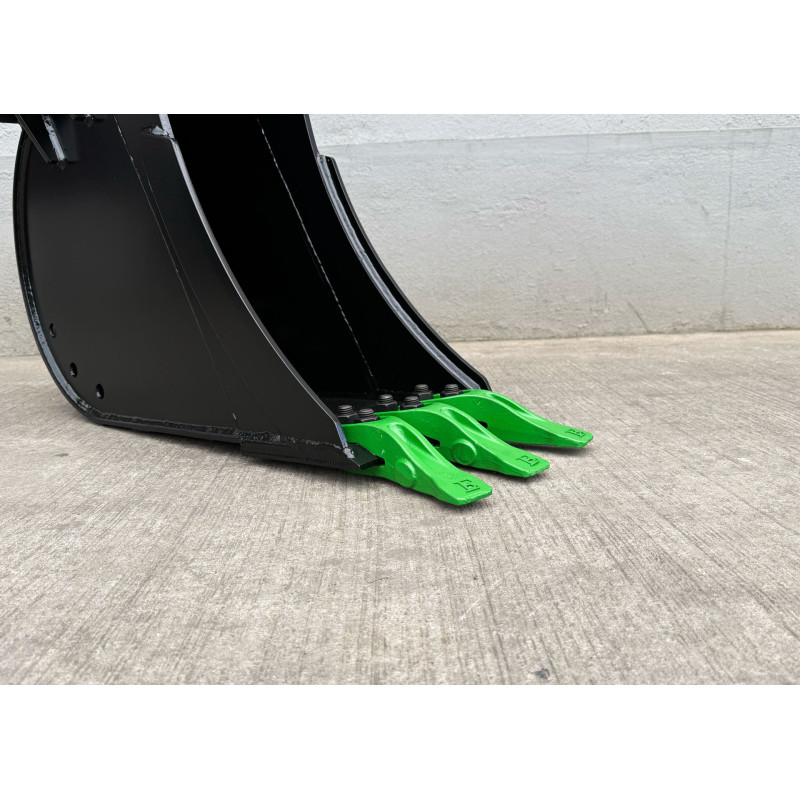

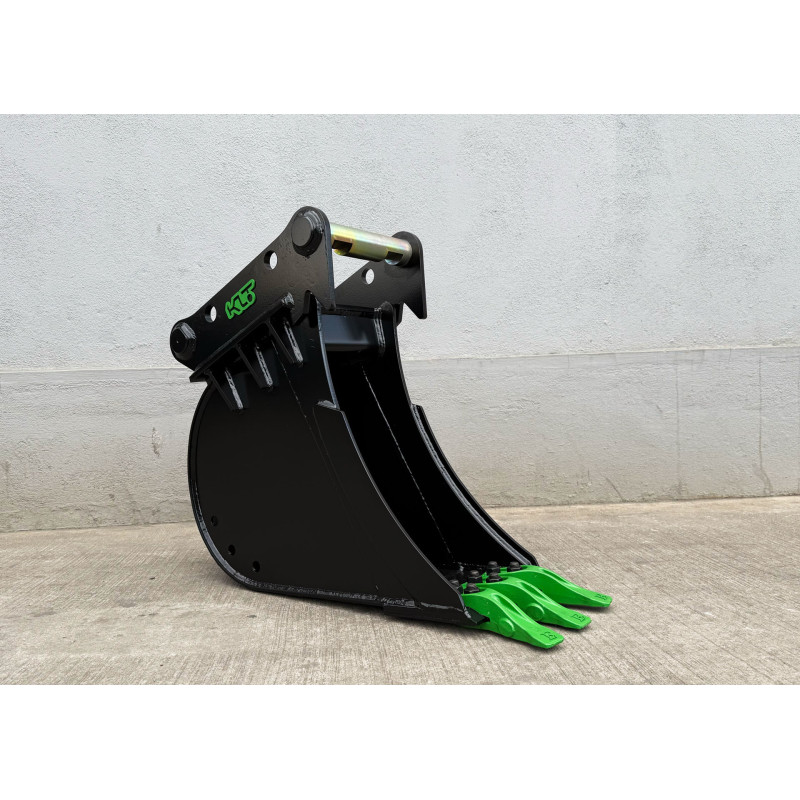

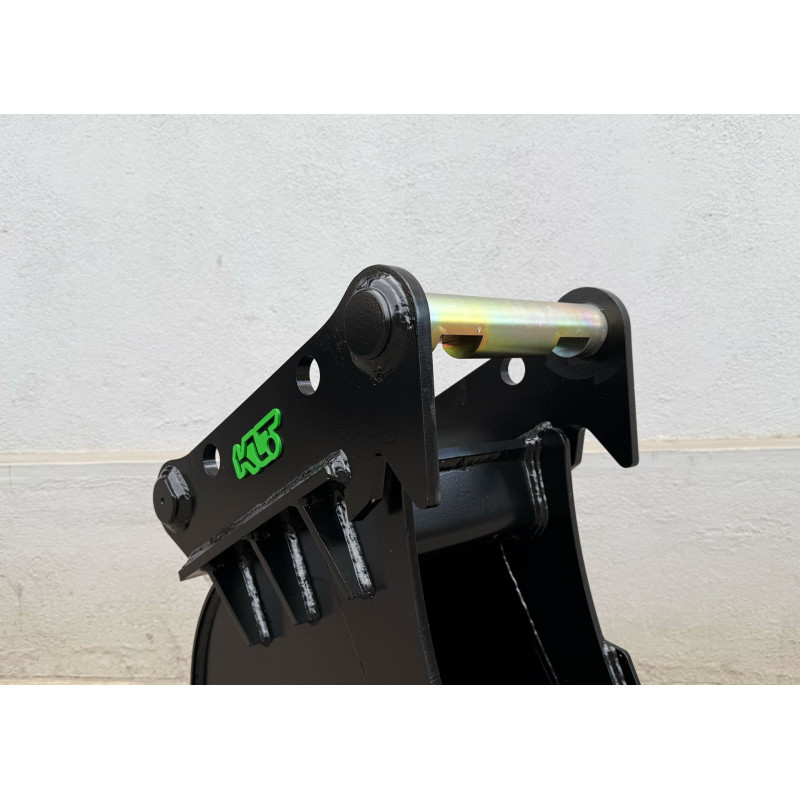

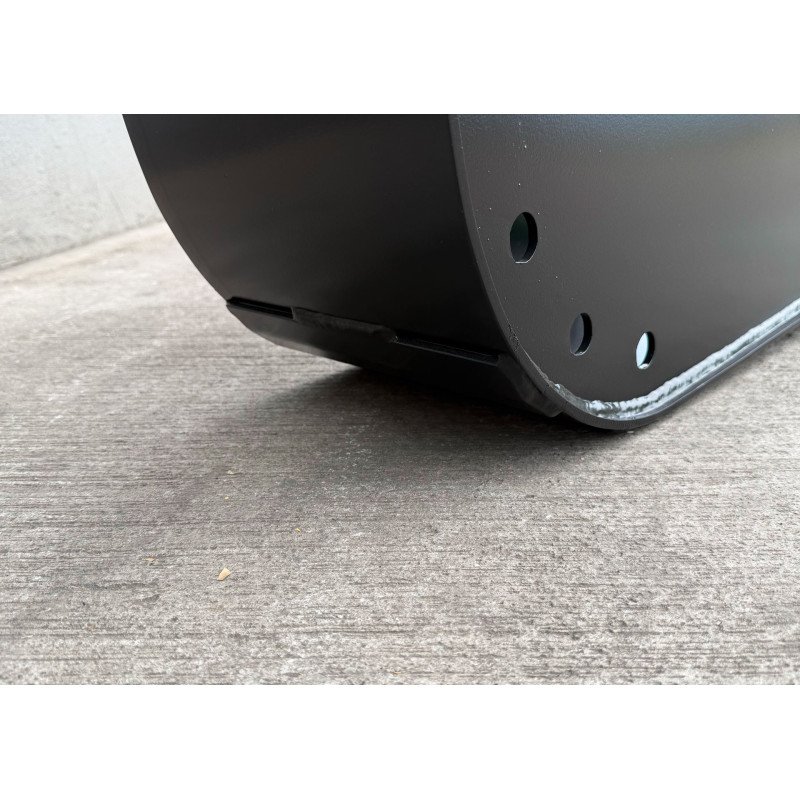

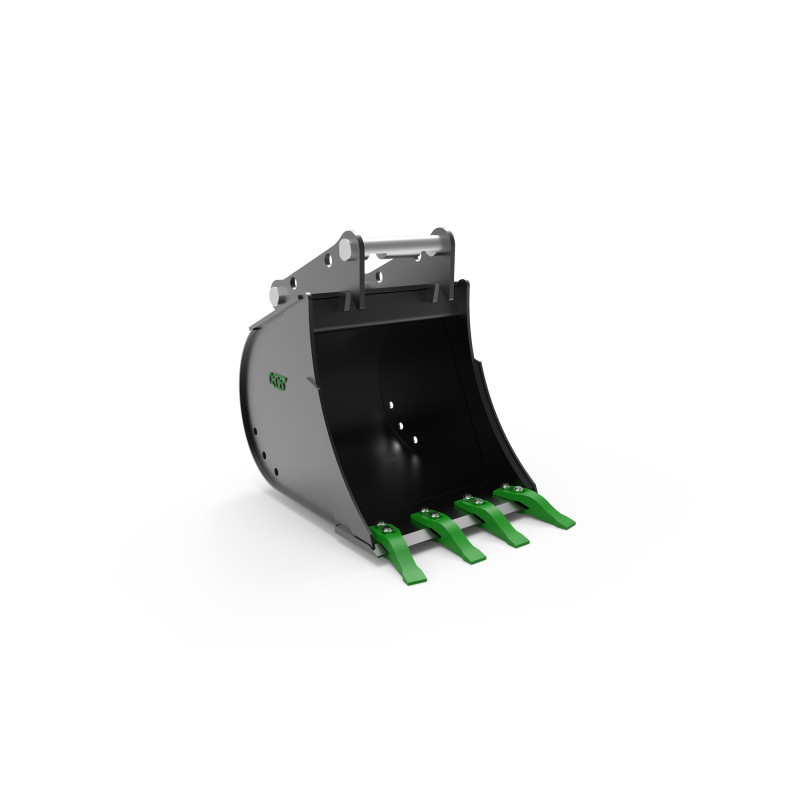

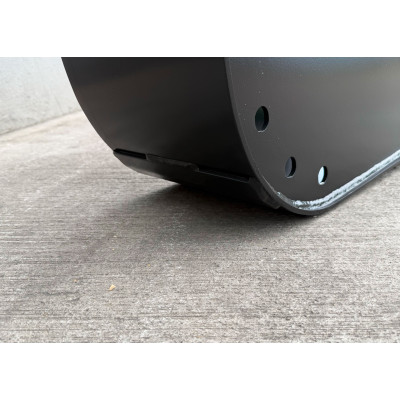

The DBS-S5-V1-300-MS08SY model is a heavy-duty digging bucket designed for excavators weighing from 6 to 9 tons. Built for intensive earthmoving operations, it performs exceptionally well in harsh terrain conditions — from deep excavations to roadworks and site preparation for large construction projects. This model combines large capacity with precise operation, ensuring full control over the digging process.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S5-V1-300-MS08SY

Data sheet

Lead time: up to 48 hours
For the machine: 6-7
7-8
8-9
Adapter: MS08SY
Width: 300
Weight without adapter: 89
Capacity: 78
Side/rear plate: 6 S355
Front side plate: 12 S355
Side cutters: 8 HB400
Roll sheet: 6 S355
Rear wear strips: 5 HB400
Cutting edge: 20x200 HB400
Top plate: 12 S355
Bend plate: 10 S355
Number of teeth: 3
Type of teeth: E25

Specific References

EAN13: 5908159221435

Watch the videos
