Class: 2-3 T
Width: 300
Adapter: S40

SALE

-5%
Out of stock

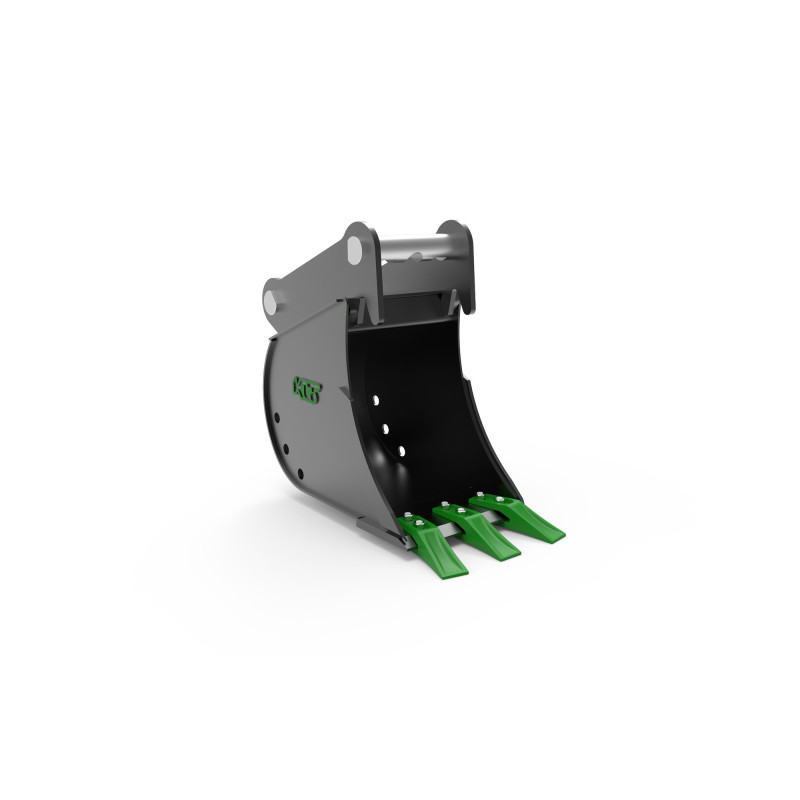

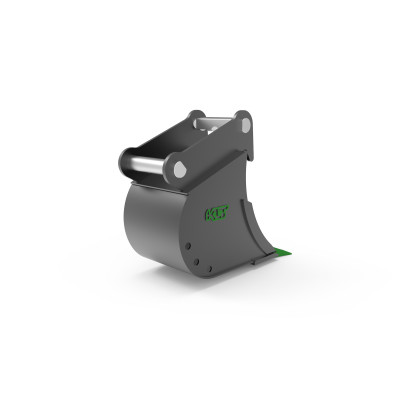

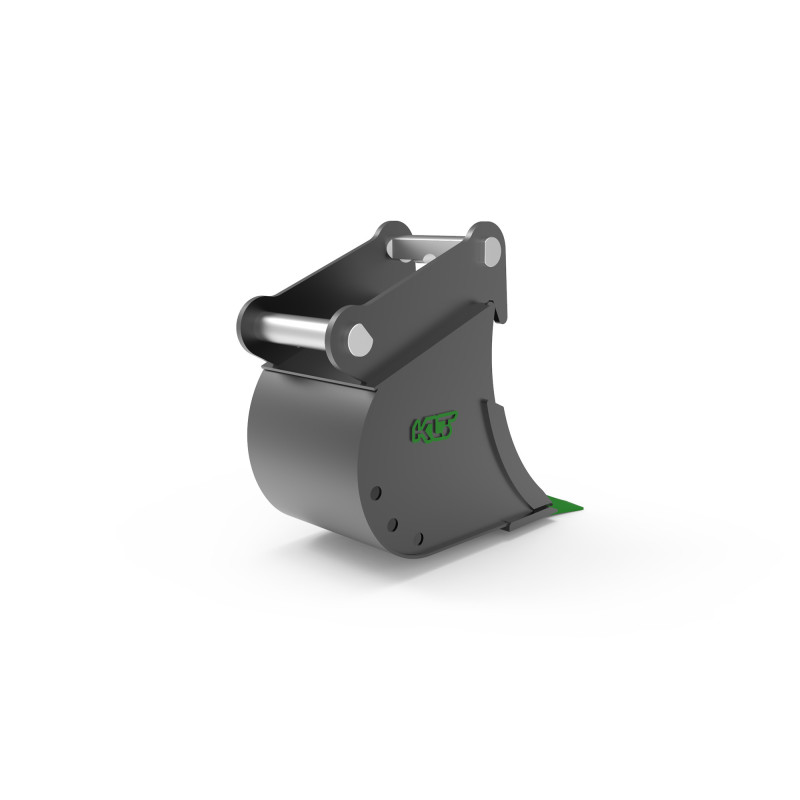

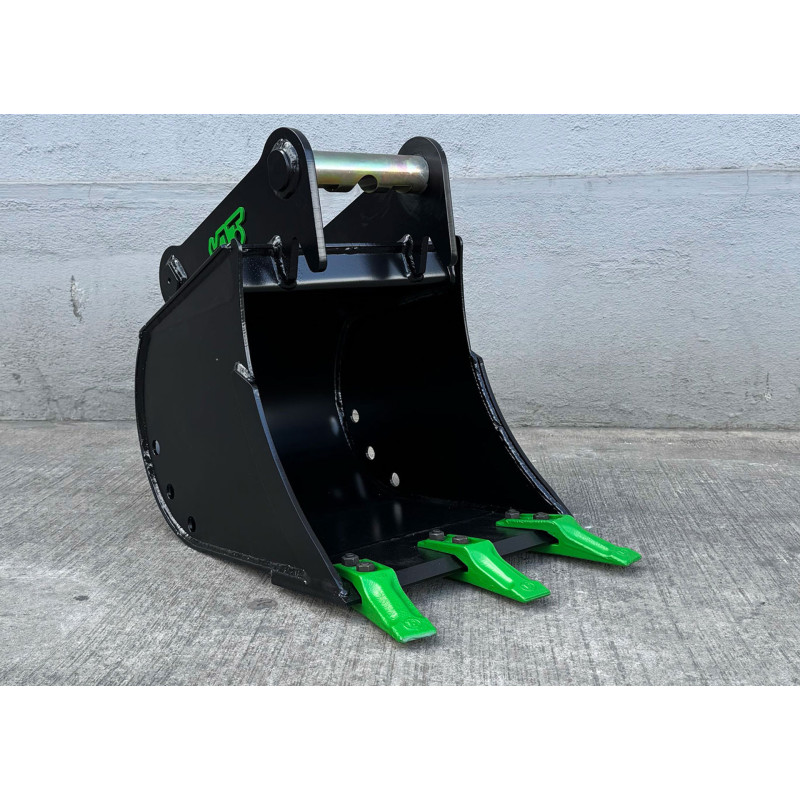

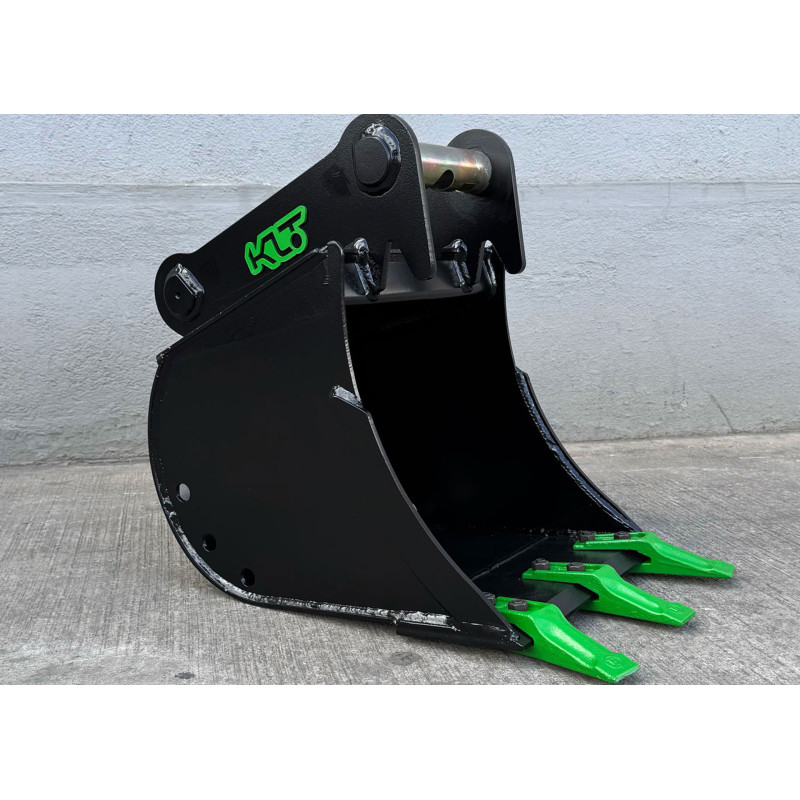

Digging bucket 300mm S40 class 2-3t

Name: Digging bucket 300mm S40 class 2-3t
Brand: Kalanto
SKU: DBS-S2-V1-300-S40
Price: 1224.59 PLN
Availability: OutOfStock

1,289.04 zł

1,224.59 zł Tax included Save 5%

Lowest price in the 30 days before the discount: 1,289.04 zł

Out of stock Lead time up to 48 hours

Other models:

Width

Adapter

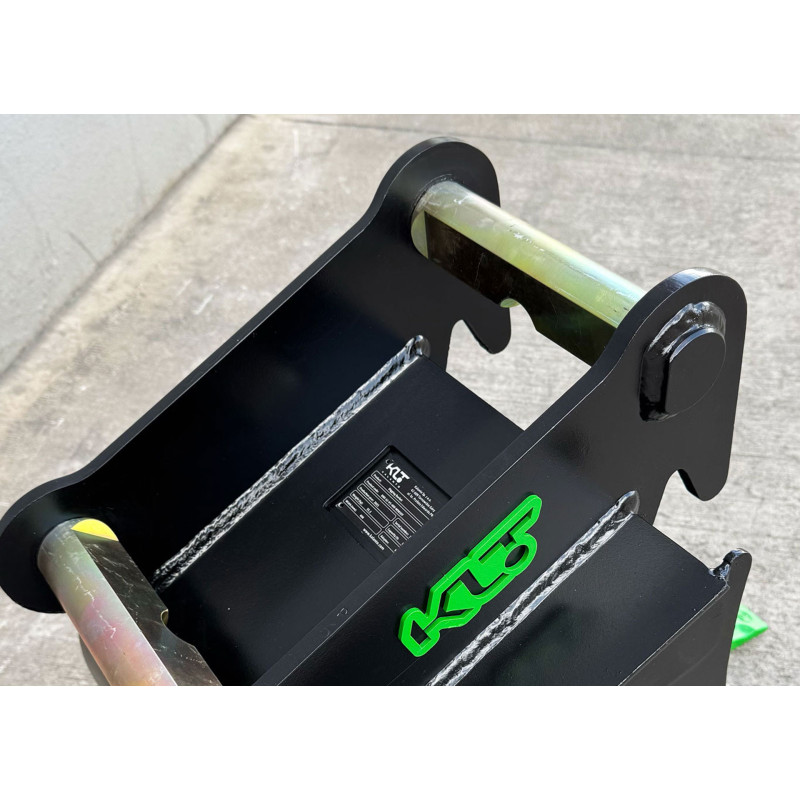

Adapter parameters

Adapter compatible with the Volvo system- S40 without base plate

Reference: AD-WOP-S40

AD-WOP-S40 is a base-plate-free design created for the Volvo S40 system. It provides quick, secure tool mounting and excellent load resistance, making it reliable for demanding construction work.

Lead time: up to 48 hours
For the machine: 2-3, 3-4, 4-5, 5-6
Adapter: S40
Side plate: 20 S355
Pin diameter: 40
Inner width: 202
Pin spacing: 300,5
Weight: 9

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
S30/150	30	152	200,5
S30/180	30	182	230,5
S40	40	202	300,5
S45	45	292	430,5
S50	50	272	430,5
S60	60	342	480,5
S70	70	452	600,5

*The image is for illustrative purposes only. The order refers to the product described in the offer.

Parameters

The main components are made of the following materials and thicknesses:

	S30/150		S30/180		S40		S45		S50		S60		S70
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	20mm	S355	20mm	S355	20mm	S355	32mm	S355	32mm	S355	40mm	S355	50mm	S355

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	16 x 150 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
	Type
Teeth:	E11.4

Watch video (2)

Alternative products with a different lead time:

The DBS-S2-V1-300-S40 bucket, dedicated to 2–3 ton machines, is built for earthworks requiring both accuracy and strength. It is effective in precise digging as well as more demanding tasks.

Its ergonomic design enhances durability, performance and ease of use.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S2-V1-300-S40

Data sheet

Lead time: up to 48 hours
For the machine: 2-3
Adapter: S40
Width: 300
Weight without adapter: 33
Capacity: 39
Side/rear plate: 5 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Cutting edge: 16x150 HB400
Top plate: 5 S355
Bend plate: 5 S355

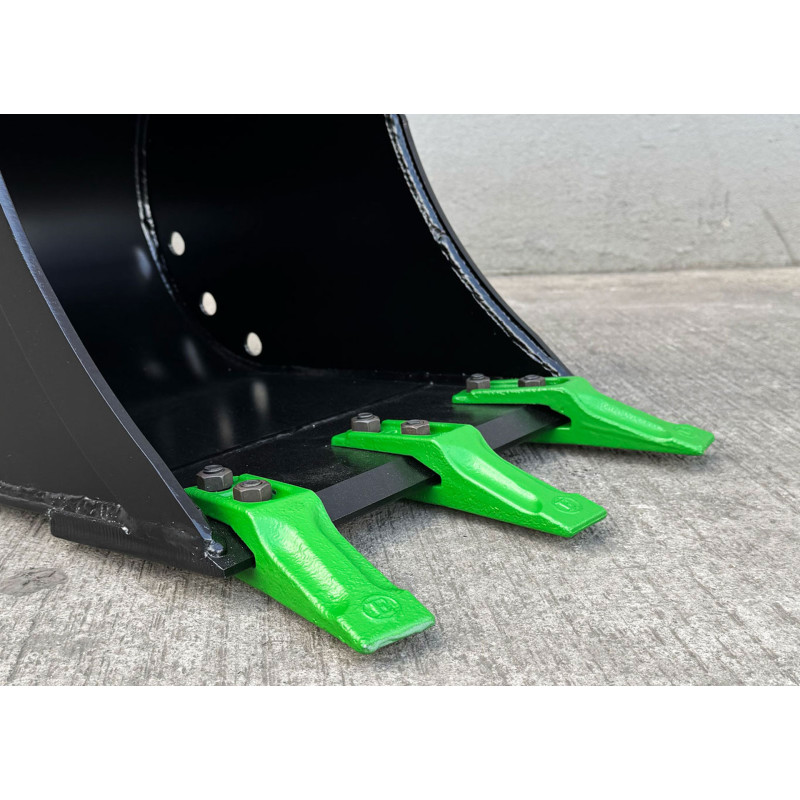

Number of teeth: 3
Type of teeth: E11.4

Specific References

EAN13: 5908159220773

Watch the videos
