Class: 6-9 T
Width: 1100
Adapter: Without adapter

Digging bucket 1100mm without adapter class 6-8t

Digging bucket 1100mm without adapter class 6-8t

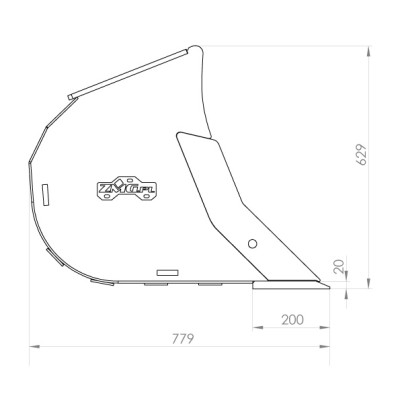

Name: Digging bucket 1100mm without adapter class 6-8t
Brand: ZMG
SKU: LK-ZMG4-1100-WOA
Price: 4136.49 PLN
Availability: InStock

4,136.49 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
350	76	100	3
400	82	118	3
450	89	136	4
500	95	155	4
600	108	193	4
700	121	231	5
800	134	269	5
900	147	307	5
1000	160	345	6
1100	173	384	6

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	6 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	12 mm	HB400
Top plate:	12 mm	S355
Bend plate:	8 mm	S355
Roll sheet reinforcement:	5 mm	S355

	Type
Teeth:	JCB

The LK-ZMG4-1100-WOA digging bucket with a working width of 1100 mm is a sturdy tool designed for excavators in the 6–8 t class. It is perfectly suited for foundation excavation, earthmoving, and general construction tasks requiring both precision and efficiency. The adapterless version is designed for direct mounting on the excavator arm, eliminating intermediate components and reducing total attachment weight. Thick S355 steel plate and HB400 steel cutting edges guarantee abrasion resistance and reliability in all terrain conditions.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG4

Reference LK-ZMG4-1100-WOA

Data sheet

Lead time: up to 3 business weeks
For the machine: 6-7
7-8
Adapter: Without adapter
Width: 1100
Weight without adapter: 173
Capacity: 384
Side/rear plate: 6 S355
Side cutters: 12 HB400
Roll sheet: 5 S355
Rear wear strips: 5 S355
Cutting edge: 20 HB500
Top plate: 12 S355
Bend plate: 8 S355
Number of teeth: 6
Type of teeth: JCB
