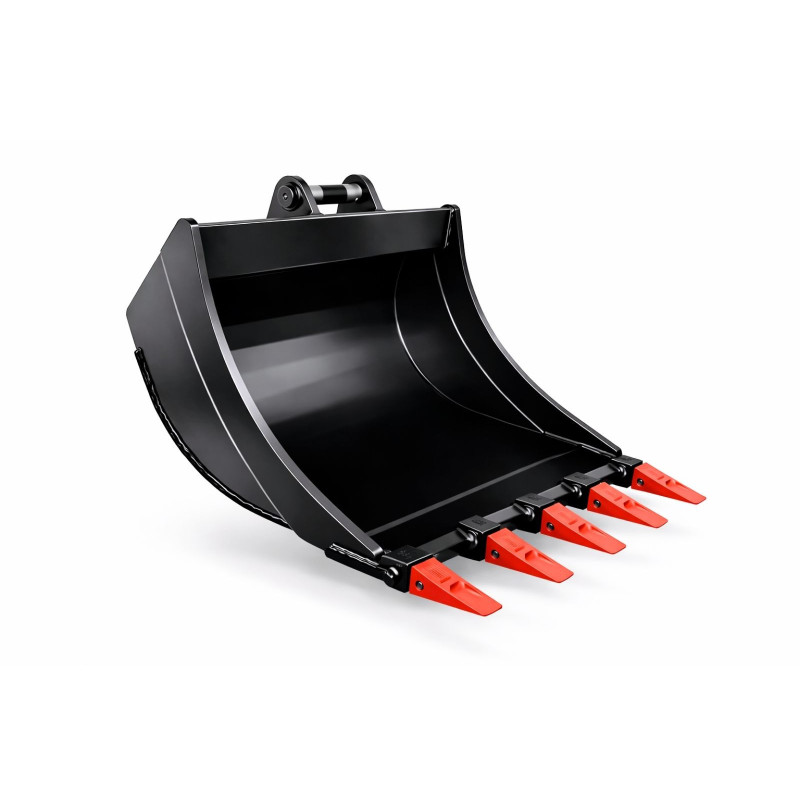

Digging bucket 800mm CW10 class 6-9t
    Digging bucket 800mm CW10 class 6-9t

Digging bucket 800mm CW10 class 6-9t

10,292.39 zł
Tax included

Buckets designed for the CW10 system feature CAT J teeth attached by welding or bolts. Made from HARDOX 500 TUF, they offer low weight and exceptional durability even under heavy-duty use.

Width [mm] Weight* [kg] Capacity [l] Teeth [pcs]
400 83 150 3
500 97 190 4
600 109 250 4
700 121 280 4
800 136 310 5
900 148 350 5

* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
Quantity
Add to wishlist
Made to order. Delivery time up to 6 weeks.

The main components are made of the following materials and thicknesses:

Thickness Material
Front side plate: 12 mm Hardox 500 Tuf
Rear side plate: 5 mm Hardox 500 Tuf
Roll sheet: 6 mm Hardox 500 Tuf
Cutting edge: 20 mm HB500
Top plate: 8 mm Hardox 500 Tuf
Bend plate: 6 mm Hardox 500 Tuf
Type
Teeth: CATJ200

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

DB-S5-SH1-800-CW10

Data sheet

Lead time
up to 6 business days weeks
For the machine [t]
6-7t
7-8t
8-9t
Adapter
CW10
Width
800mm
Weight without adapter
136kg
Capacity
310 l
Side/rear plate
5mm Hardox 500 Tuf
Front side plate
12mm Hardox 500 Tuf
Roll sheet
6mm Hardox 500 Tuf
Cutting edge
20mm HB 500
Top plate
8mm Hardox 500 Tuf
Bend plate
6mm Hardox 500 Tuf
Number of teeth
5pcs
Type of teeth
CATJ200
