Cable bucket 400mm CW05 class 3-4t
3,961.46 zł
Tax included
Attachments with CW05 mounting offer easy installation and a robust, wear-resistant design. With precise compatibility with CW05 quick couplers, the buckets ensure efficient operation, while the variety of tooth configurations allows them to adapt to different ground conditions.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 300 | 44 | 65 |
| 400 | 50 | 80 |
* The given bucket weight does not include the weight of the adapter.

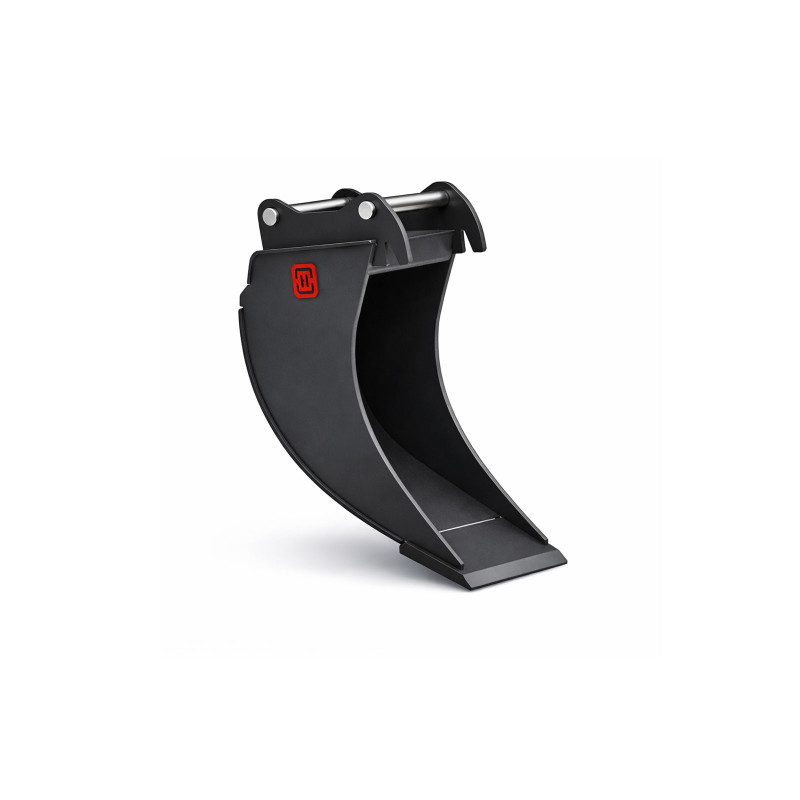

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Front side plate: | 10 mm | Hardox 500 Tuf |
| Rear side plate: | 4 mm | Hardox 500 Tuf |
| Roll sheet: | 5 mm | Hardox 500 Tuf |
| Cutting edge: | 16 mm | HB500 |
| Top plate: | 6 mm | Hardox 500 Tuf |
| Bend plate: | 4 mm | Hardox 500 Tuf |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
CB-S3-SH1-400-CW05
Data sheet
- Lead time
- up to 6 business days weeks
- For the machine
- 3-4t
- Adapter
- CW05
- Width
- 400mm
- Weight without adapter
- 50kg
- Capacity
- 80 l
- Side/rear plate
- 4mm Hardox 500 Tuf
- Front side plate
- 10mm Hardox 500 Tuf
- Roll sheet
- 5mm Hardox 500 Tuf
- Cutting edge
- 16mm HB 500
- Top plate
- 6mm Hardox 500 Tuf
- Bend plate
- 4mm Hardox 500 Tuf
