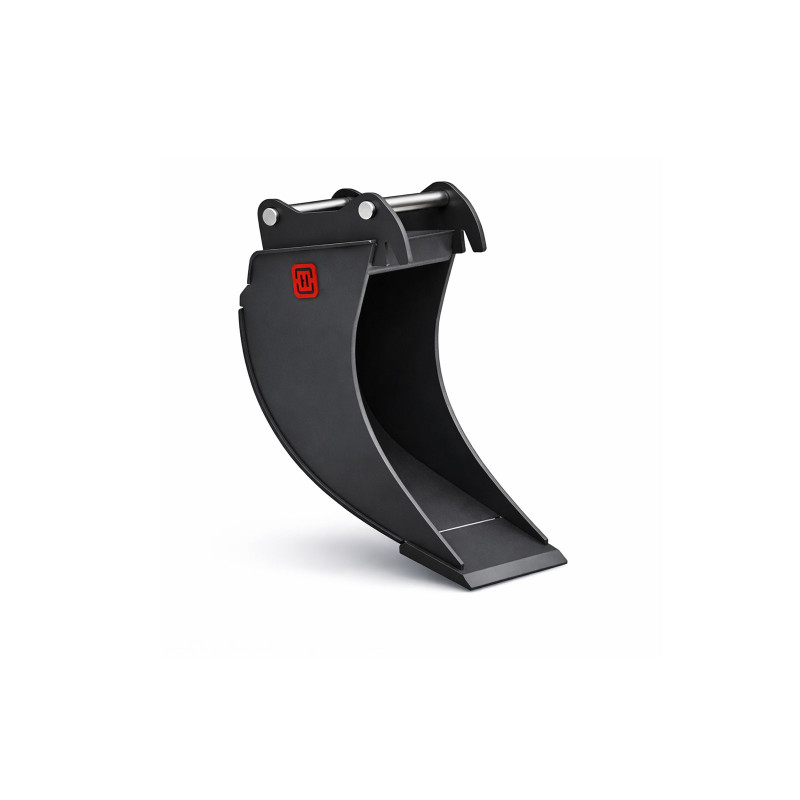

Buckets with MS03 mounting are designed for quick and trouble-free compatibility with mini excavators. The solid construction ensures high durability and long service life, while the option to install various tooth types allows the equipment to be adapted to different tasks.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 300 | 44 | 65 |
| 400 | 50 | 80 |

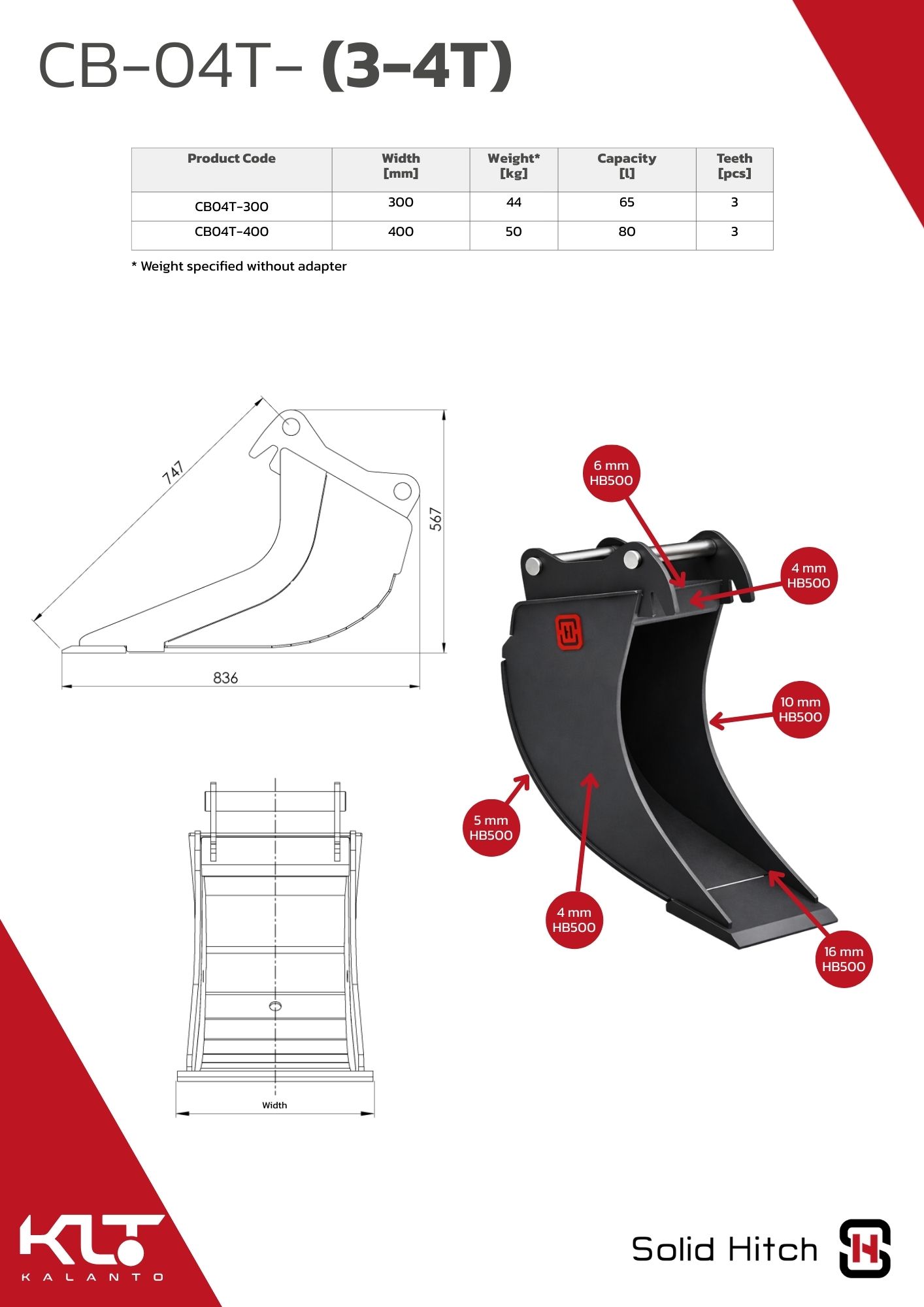

The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Front side plate: | 10 mm | Hardox 500 Tuf |
| Rear side plate: | 4 mm | Hardox 500 Tuf |
| Roll sheet: | 5 mm | Hardox 500 Tuf |
| Cutting edge: | 16 mm | HB500 |
| Top plate: | 6 mm | Hardox 500 Tuf |
| Bend plate: | 4 mm | Hardox 500 Tuf |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
