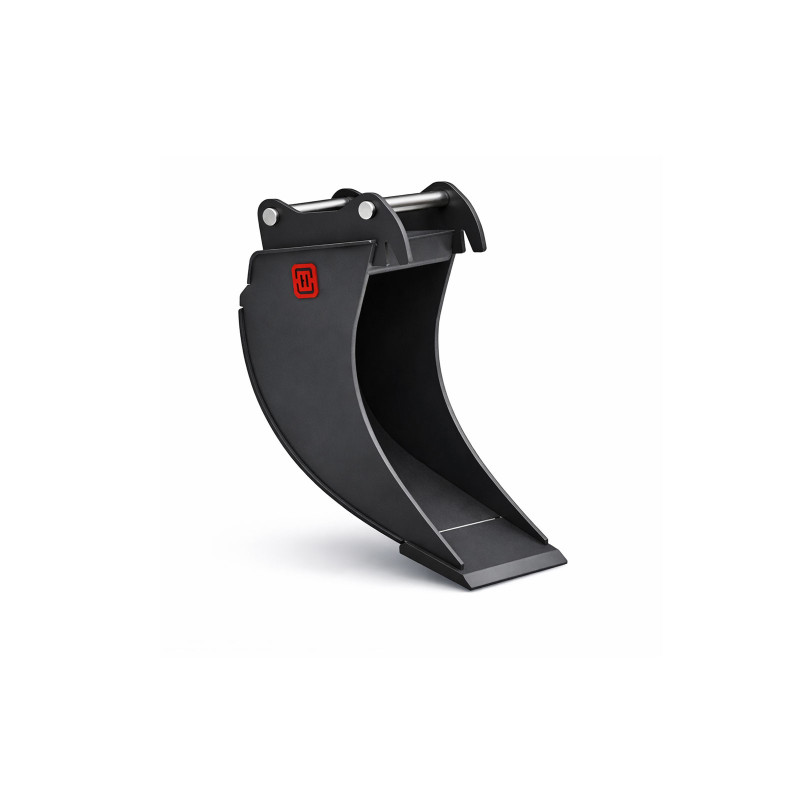

Cable bucket 300mm S40 class 3-4t
3,353.23 zł
Tax included
Buckets with S40 mounting provide fast and stable attachment to the excavator, making them ideal for intensive earthmoving work. The reinforced construction and the option to use different tooth types allow the equipment to be precisely matched to the operator’s needs.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 300 | 44 | 65 |
| 400 | 50 | 80 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Front side plate: | 10 mm | Hardox 500 Tuf |
| Rear side plate: | 4 mm | Hardox 500 Tuf |
| Roll sheet: | 5 mm | Hardox 500 Tuf |
| Cutting edge: | 16 mm | HB500 |
| Top plate: | 6 mm | Hardox 500 Tuf |
| Bend plate: | 4 mm | Hardox 500 Tuf |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
CB-S3-SH1-300-S40
Data sheet
- Lead time
- up to 6 business days weeks
- For the machine
- 3-4t
- Adapter
- S40
- Width
- 300mm
- Weight without adapter
- 44kg
- Capacity
- 65 l
- Side/rear plate
- 4mm Hardox 500 Tuf
- Front side plate
- 10mm Hardox 500 Tuf
- Roll sheet
- 5mm Hardox 500 Tuf
- Cutting edge
- 16mm HB 500
- Top plate
- 6mm Hardox 500 Tuf
- Bend plate
- 4mm Hardox 500 Tuf
