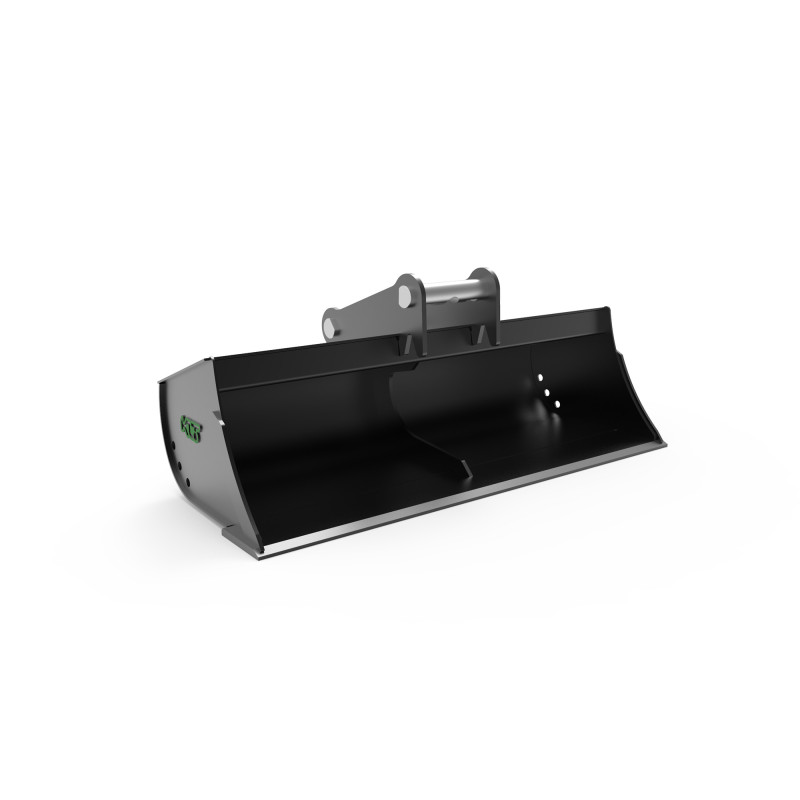

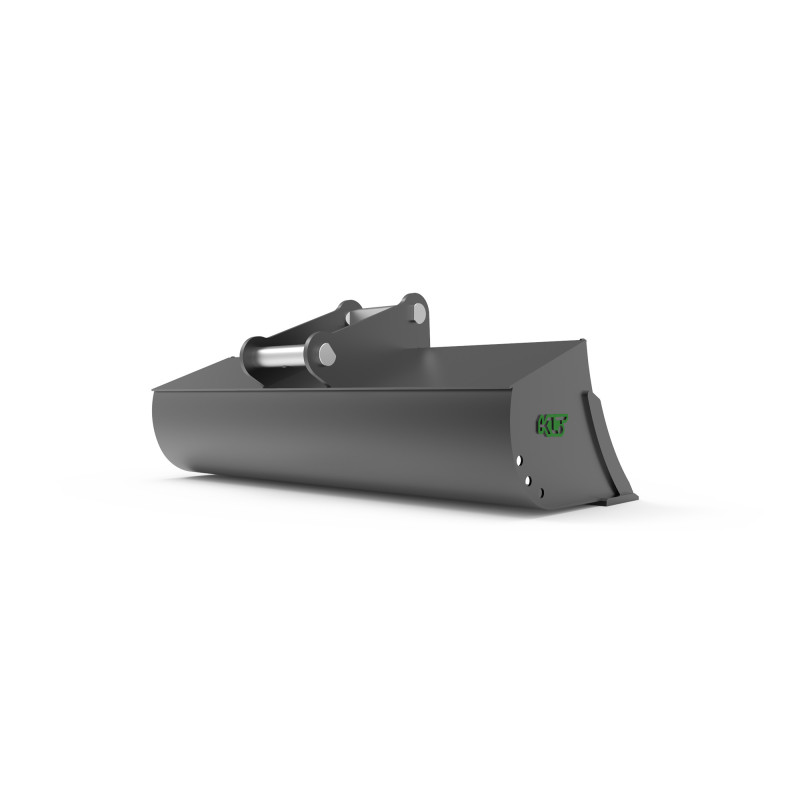

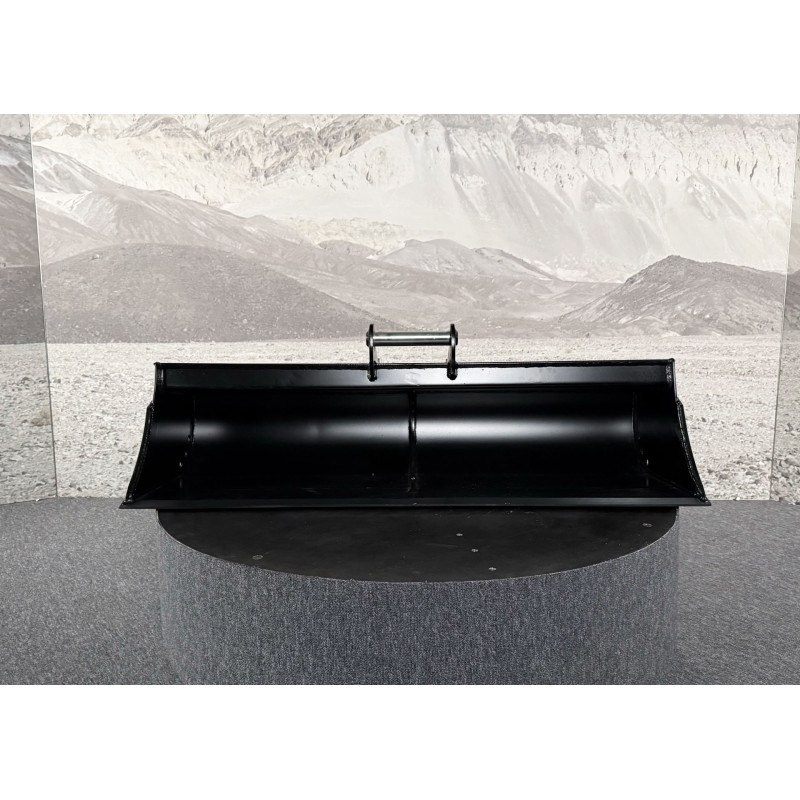

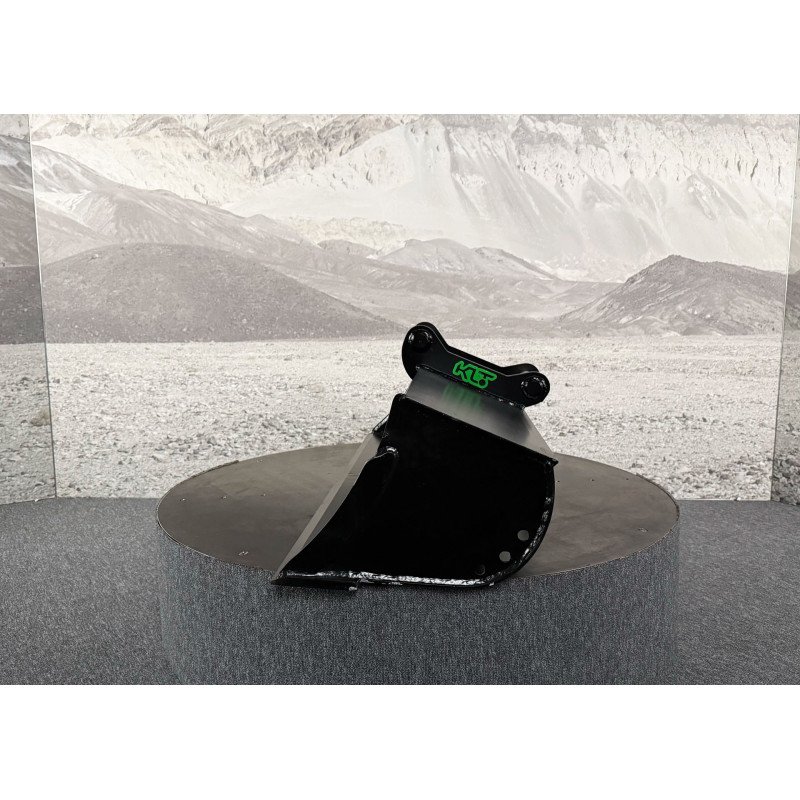

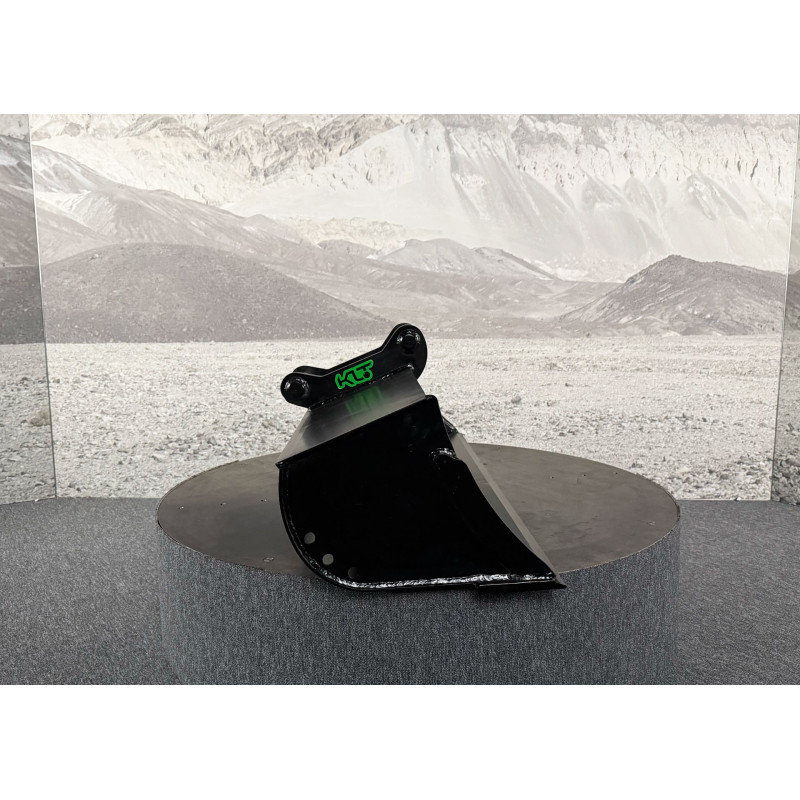

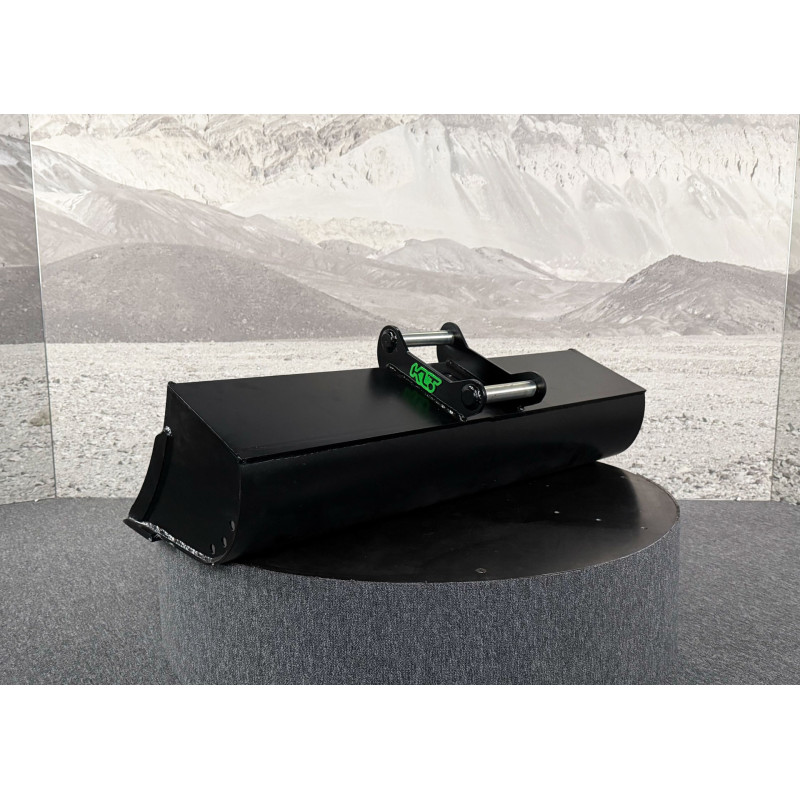

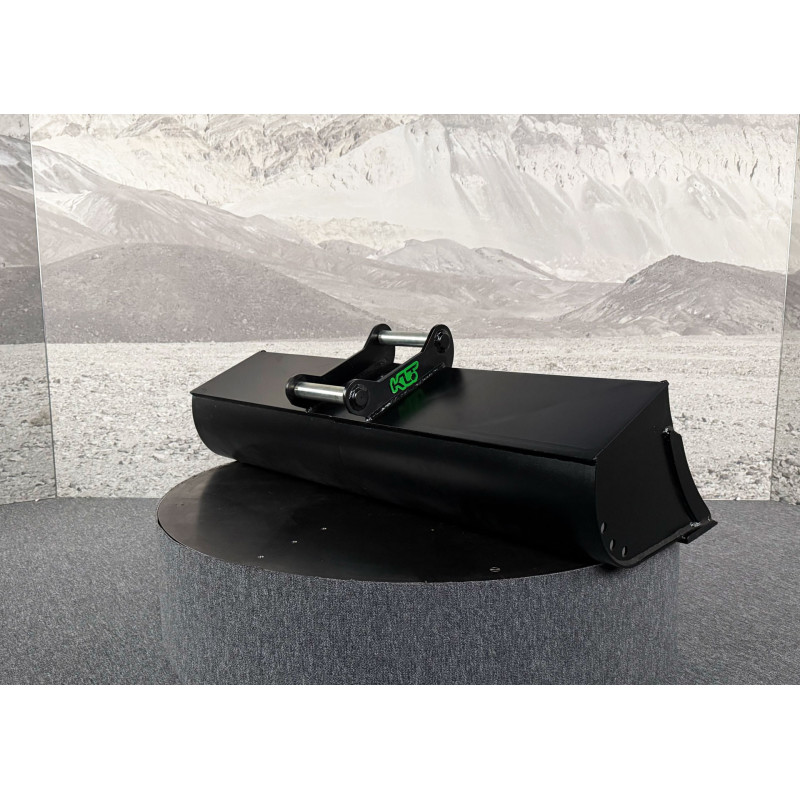

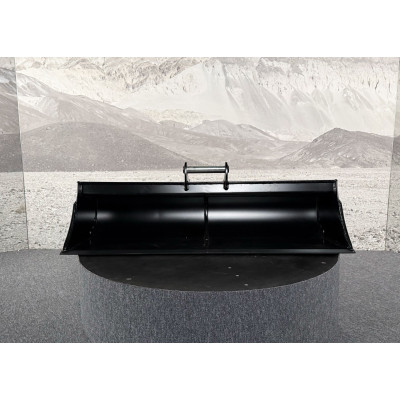

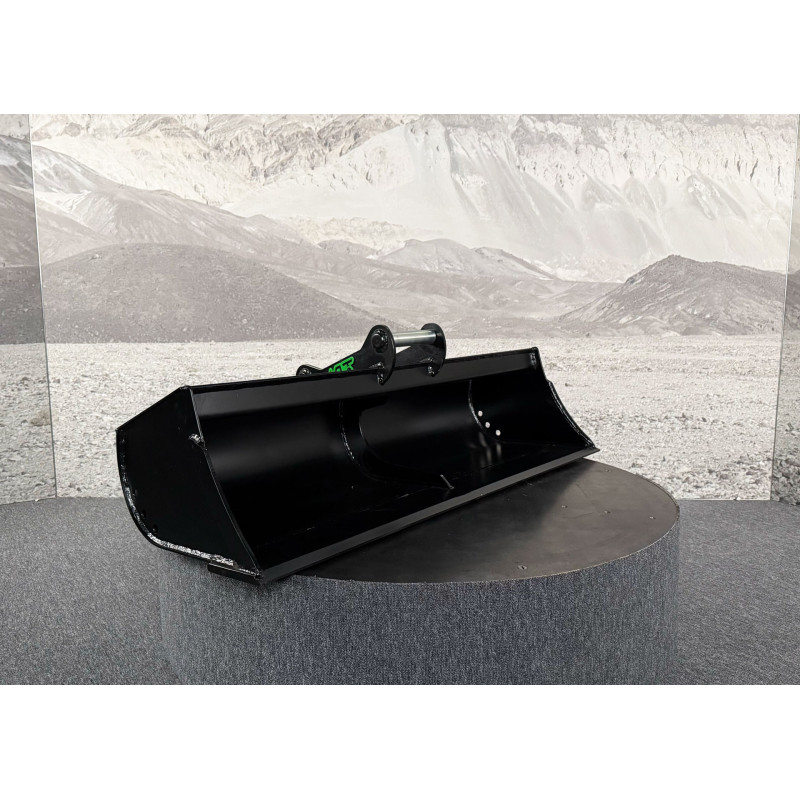

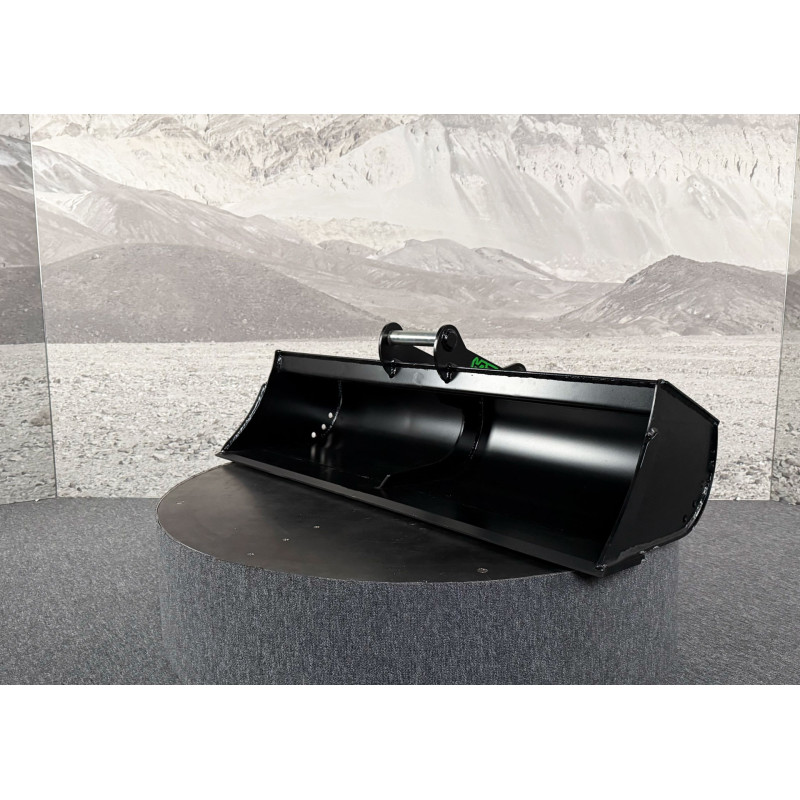

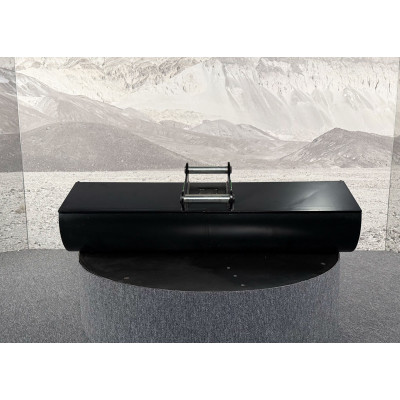

Ditch cleaning bucket 1400mm MS03SY class 2-3t
2,569.47 zł
Tax included
The TBS-S2-V1-1400-MS03SY bucket is engineered for 2–3 ton mini excavators requiring a highly efficient tool for large-scale grading and cleanup tasks. The increased working width makes it ideal for terrain leveling, shaping wider slopes and cleaning long ditch sections. Its reinforced steel construction and carefully optimized geometry guarantee stability, accuracy and reliable performance. Despite its size, the bucket remains lightweight, reducing machine load and improving control during operation.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 83 | 144,1 |
| 1400 | 96 | 170,2 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Internal reinforcement: | 10 mm | S355 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
TBS-S2-V1-1400-MS03SY
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 2-3t
- Adapter
- MS03SY
- Width
- 1400mm
- Weight without adapter
- 96kg
- Capacity
- 170,2 l
- Side/rear plate
- 5mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Cutting edge
- 16x150mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 5mm S355
- Bend plate
- 5mm S355
