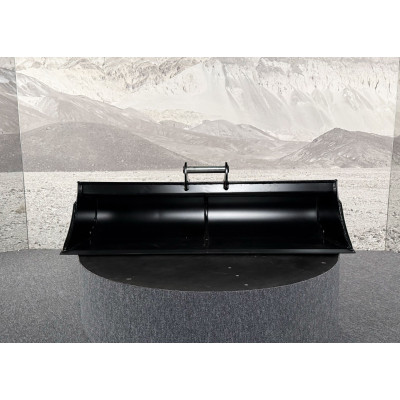

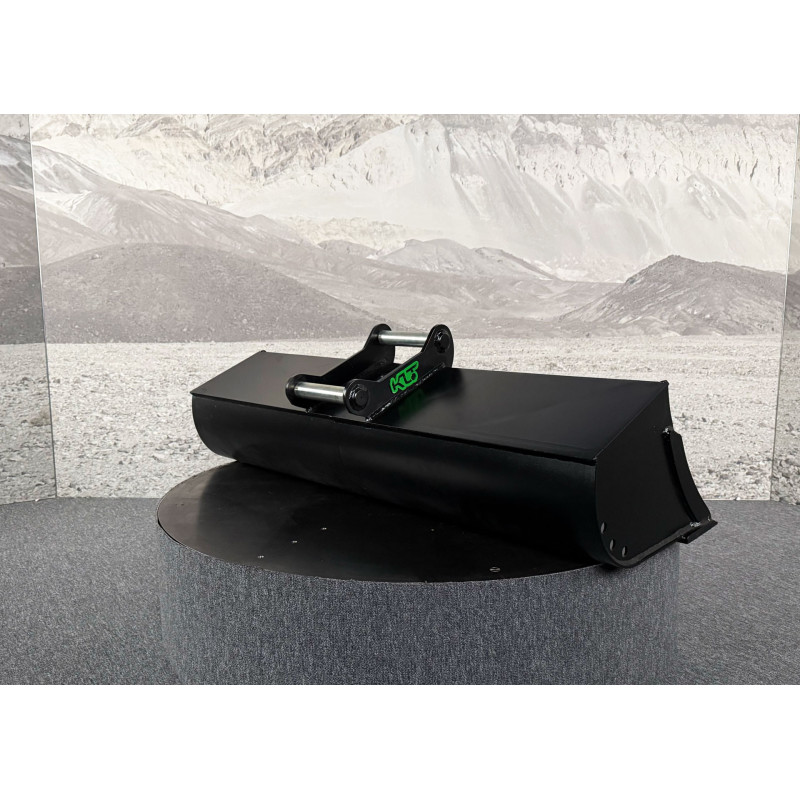

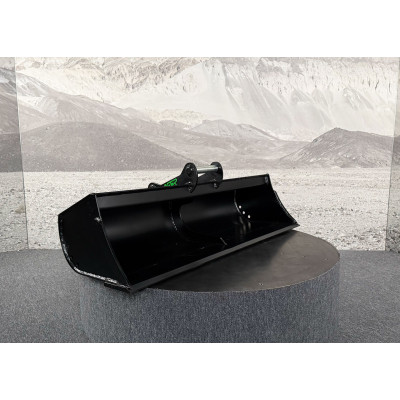

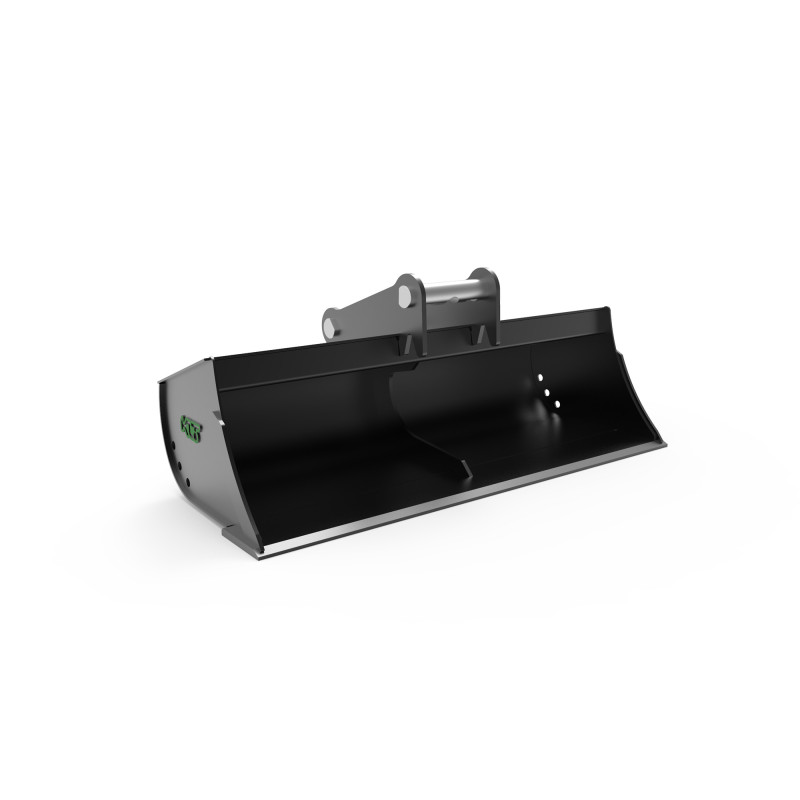

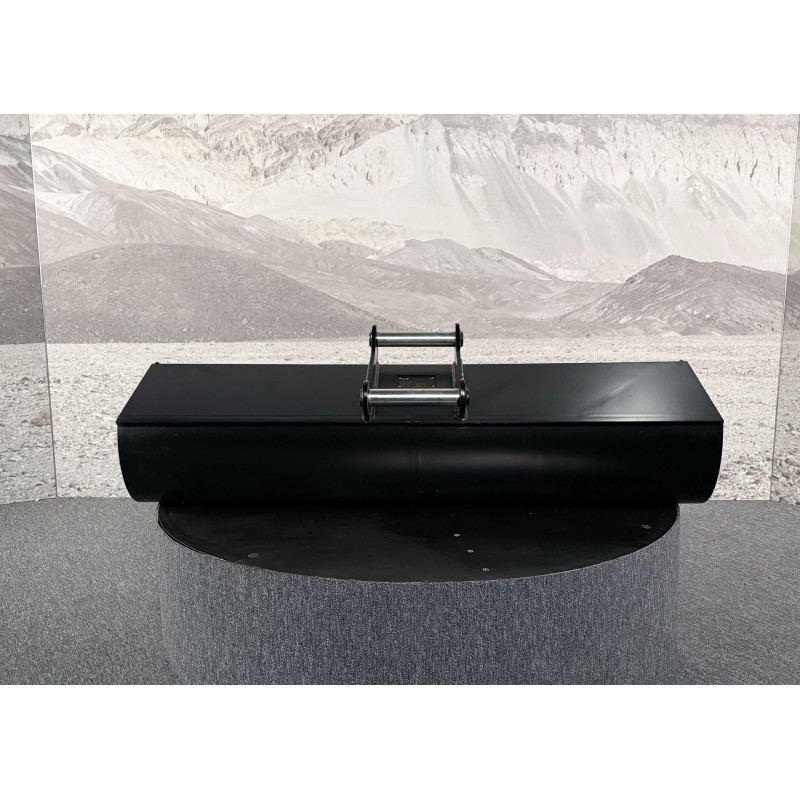

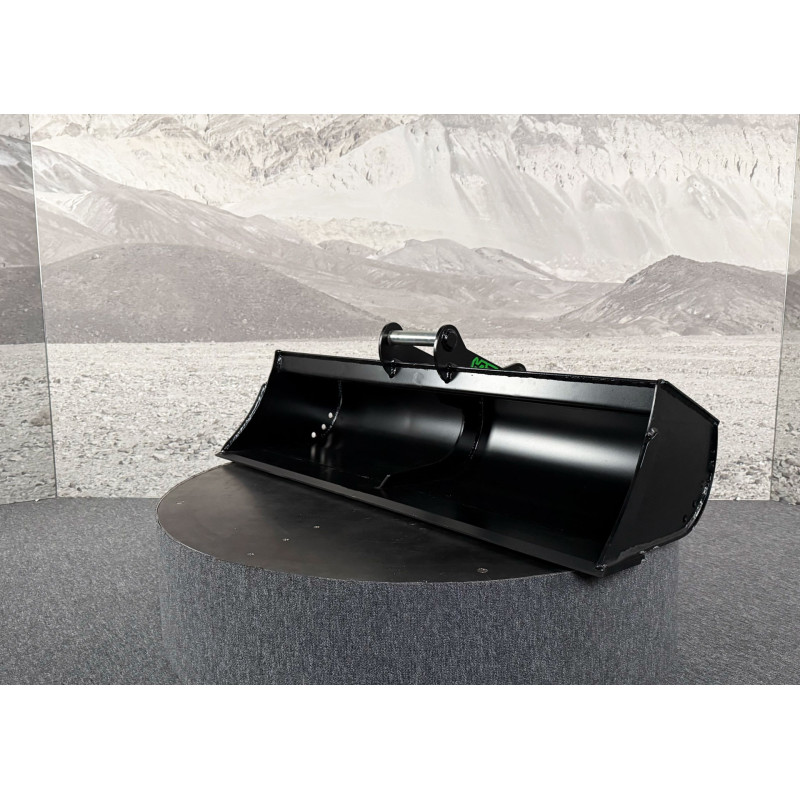

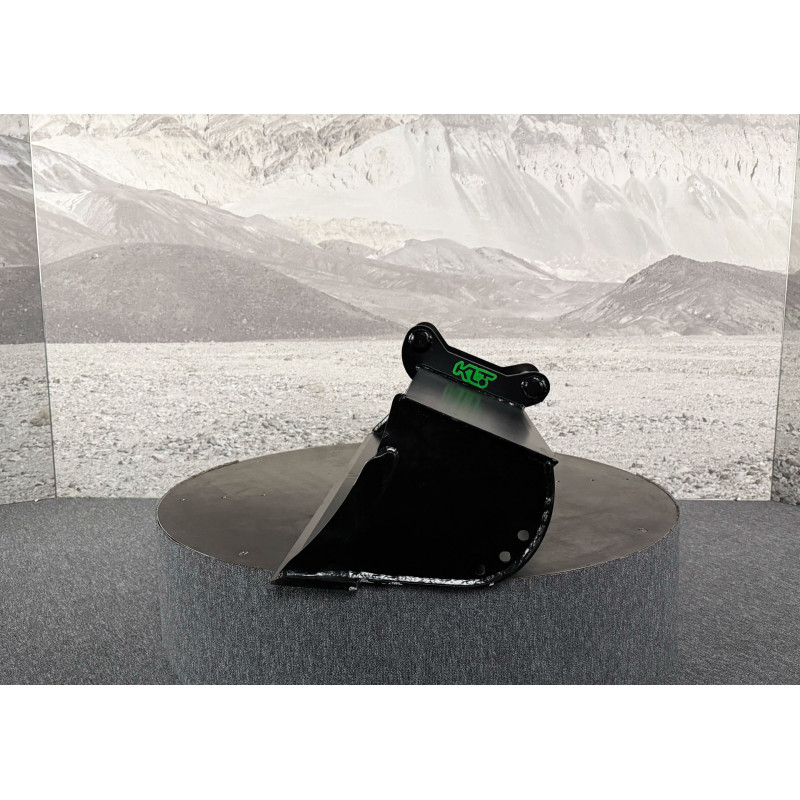

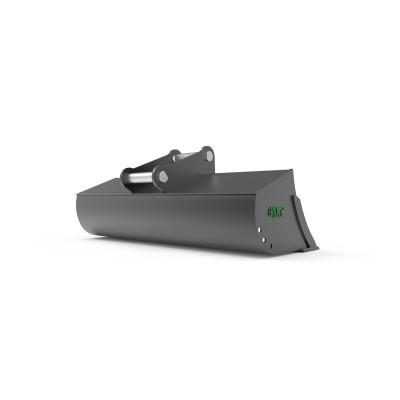

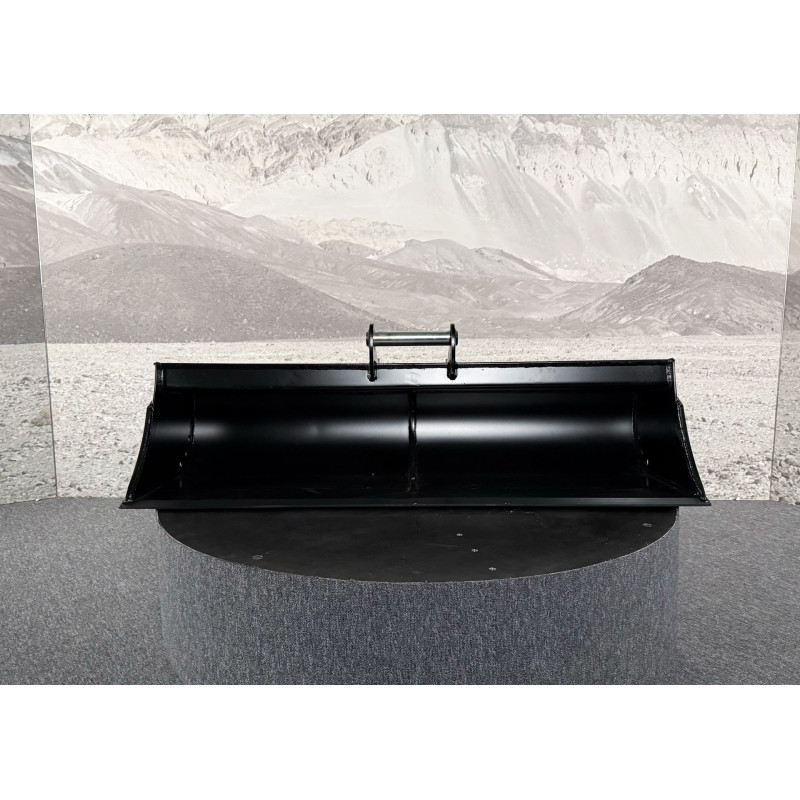

Ditch cleaning bucket 1200mm S40 class 2-3t
2,284.11 zł
Tax included
The TBS-S2-V1-1200-S40 is a strong and versatile grading bucket designed for mini and compact excavators in the 2–3 ton class. It excels in finishing work, slope shaping, soil leveling and ditch maintenance on construction sites. Its wide, well-contoured shell provides efficient and even material spreading, while the refined geometry ensures smooth bucket movement and high working precision. Built from durable, wear-resistant steel, it maintains low weight without compromising strength.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 83 | 144,1 |
| 1400 | 96 | 170,2 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Internal reinforcement: | 10 mm | S355 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
TBS-S2-V1-1200-S40
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 2-3t
- Adapter
- S40
- Width
- 1200mm
- Weight without adapter
- 83kg
- Capacity
- 144,1 l
- Side/rear plate
- 5mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Cutting edge
- 16x150mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 5mm S355
- Bend plate
- 5mm S355
