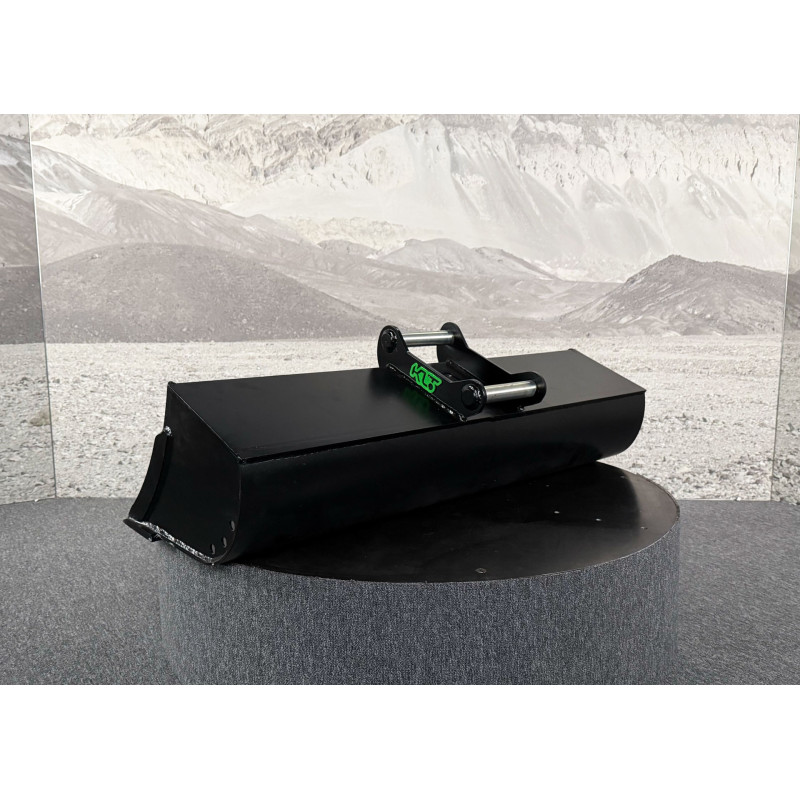

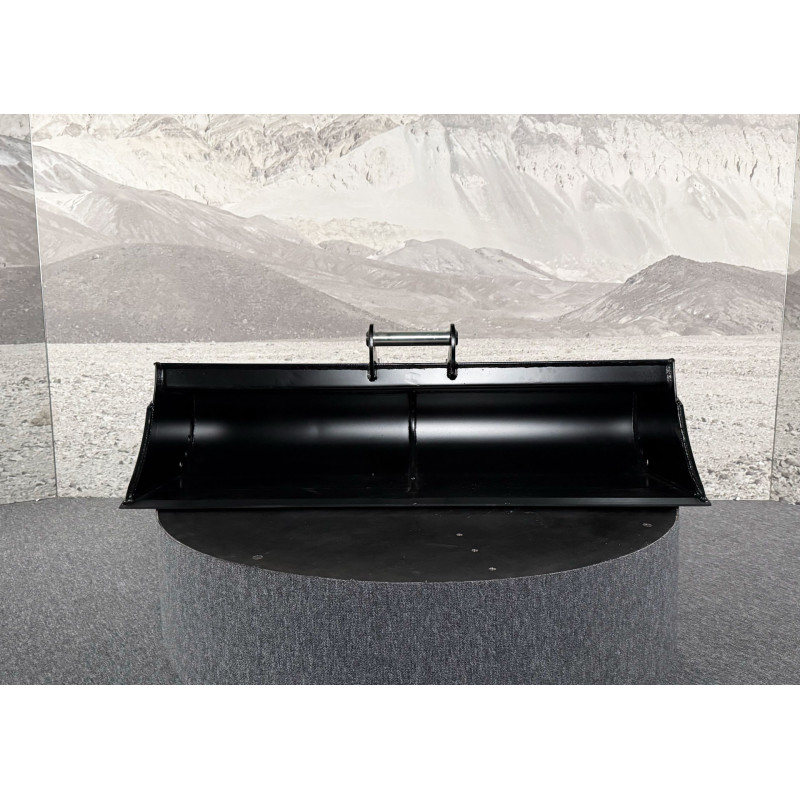

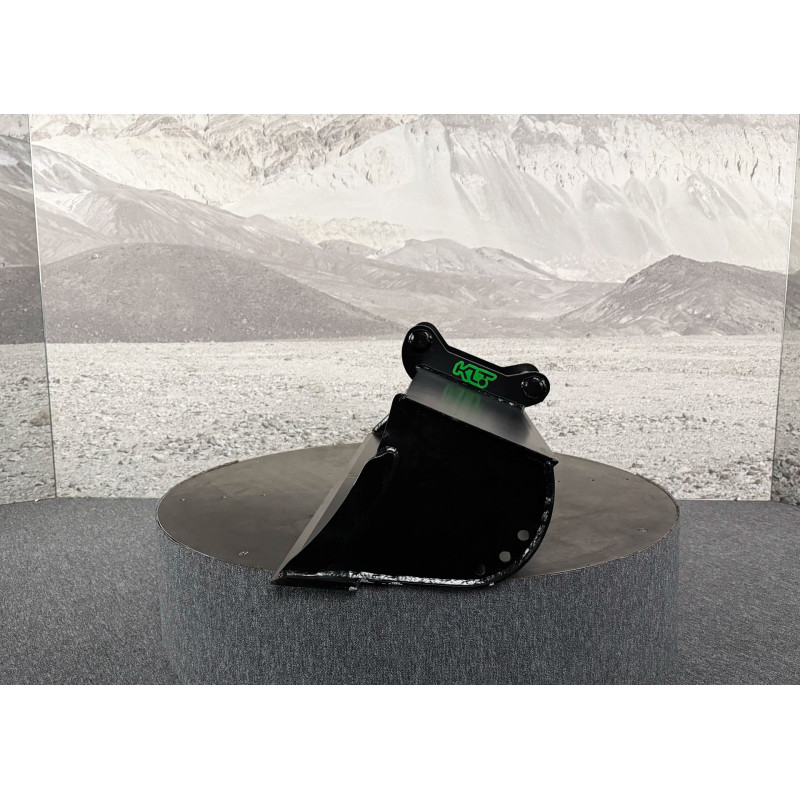

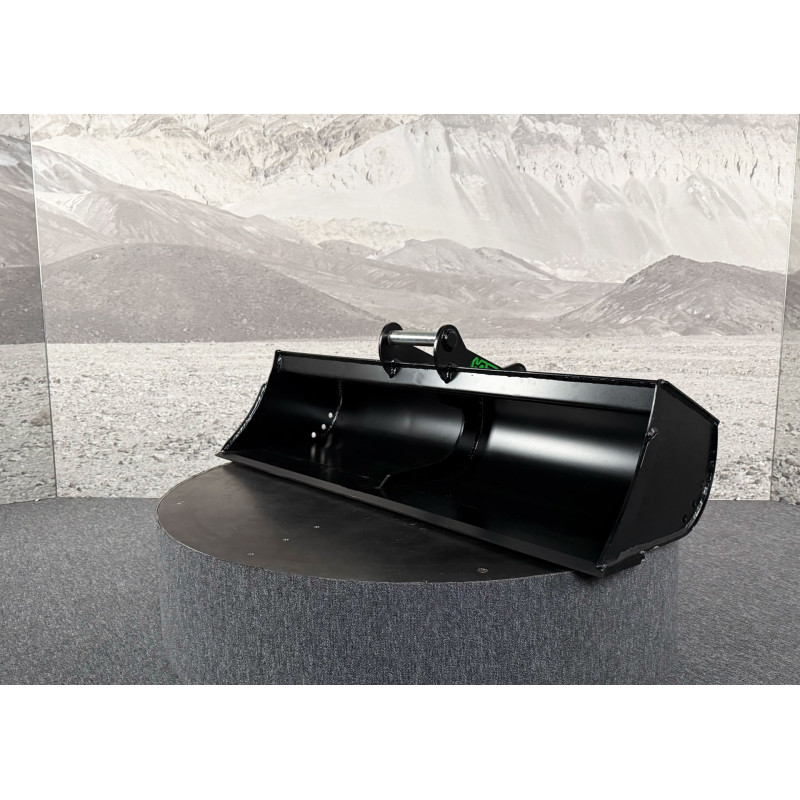

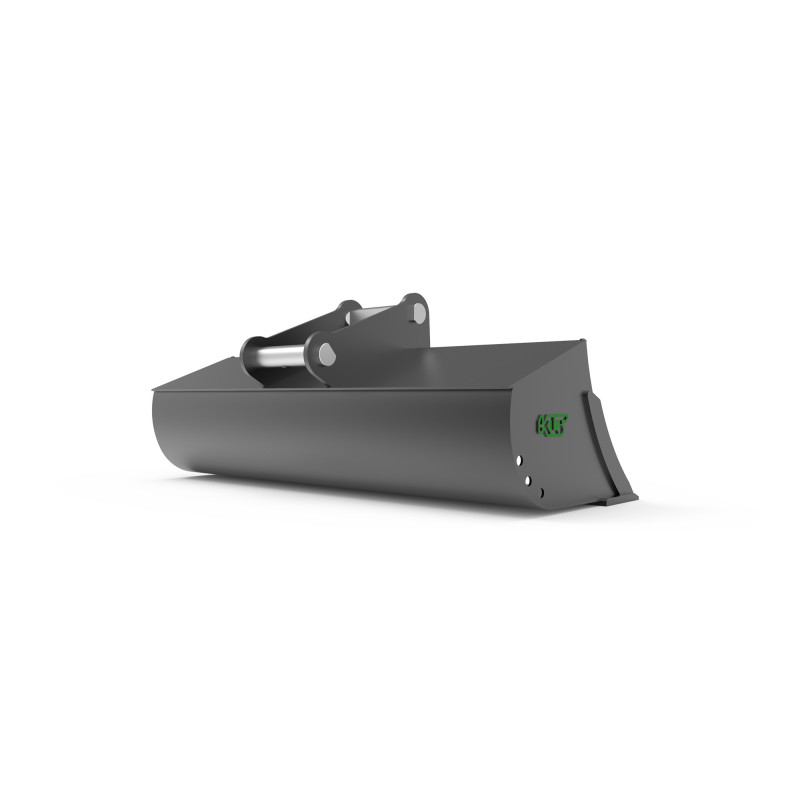

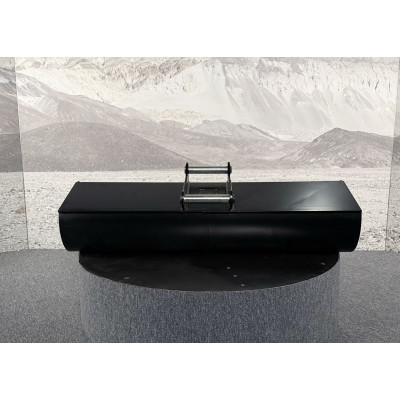

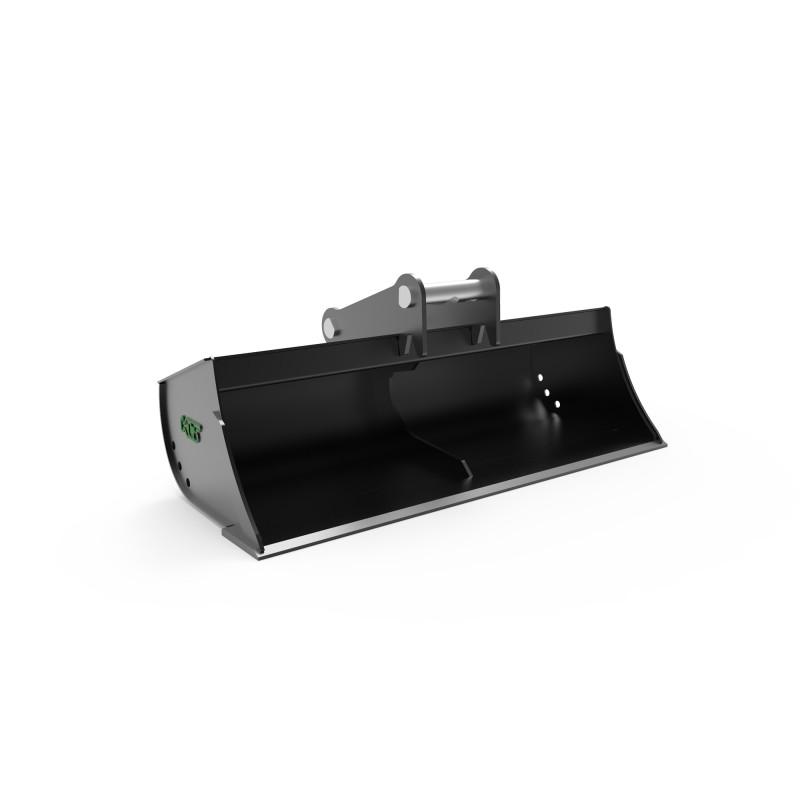

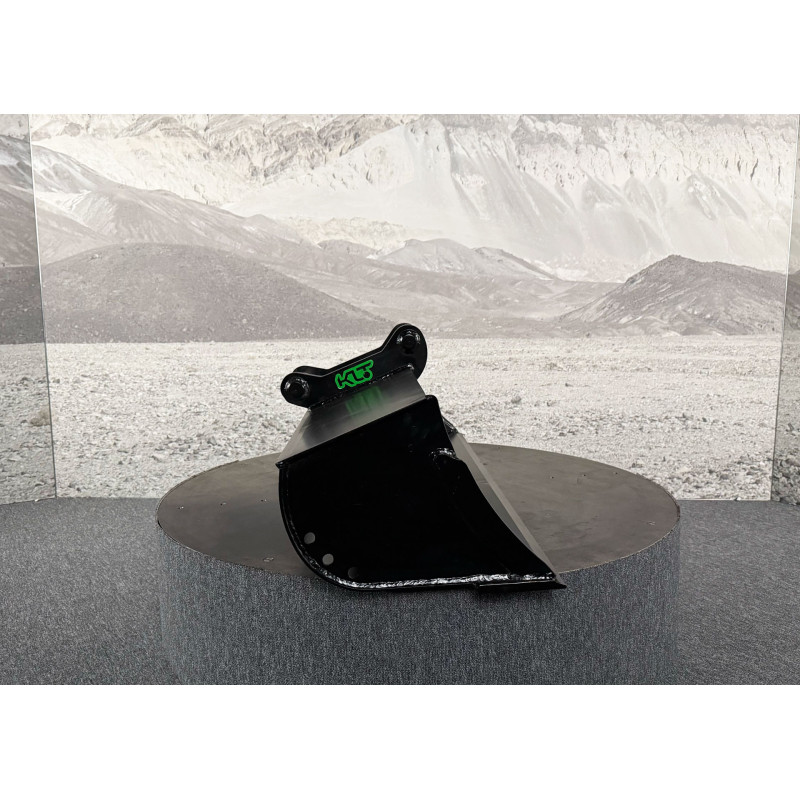

Ditch cleaning bucket 1200mm MS03SY class 2-3t
2,284.11 zł
Tax included
The TBS-S2-V1-1200-MS03SY model is a universal grading bucket designed for mini excavators and compact excavators weighing between 2 and 3 tons. Intended for precise finishing work and terrain shaping, it performs exceptionally well in slope profiling, ground leveling, ditch cleaning and general site maintenance. Its wide, well-profiled shell allows even material distribution, while the optimized bucket geometry ensures excellent control and precision.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 83 | 144,1 |
| 1400 | 96 | 170,2 |
* The given bucket weight does not include the weight of the adapter.

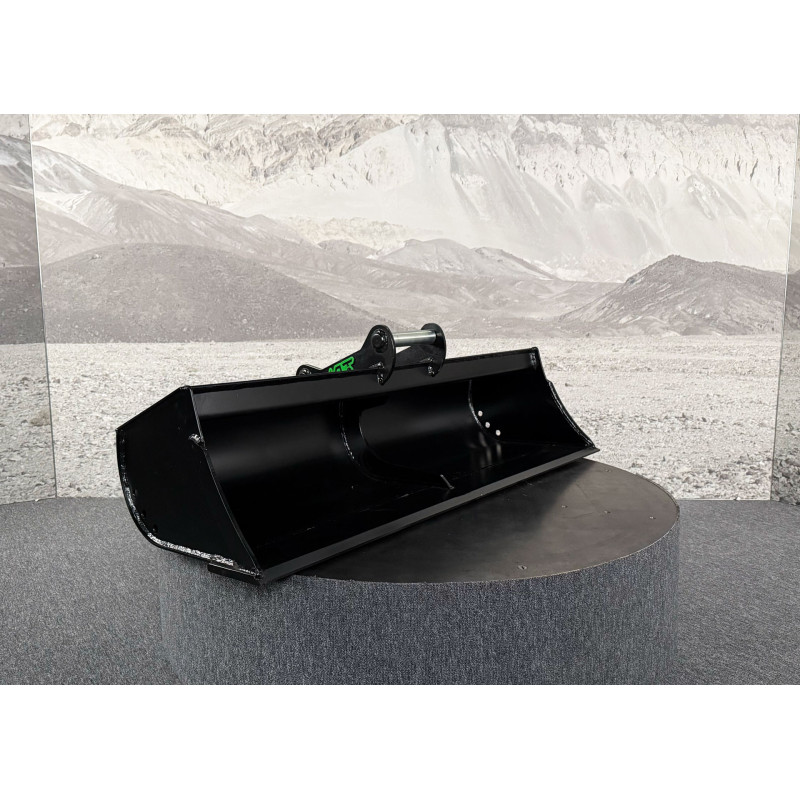

**The image is for illustrative purposes only. The order refers to the product described in the offer.

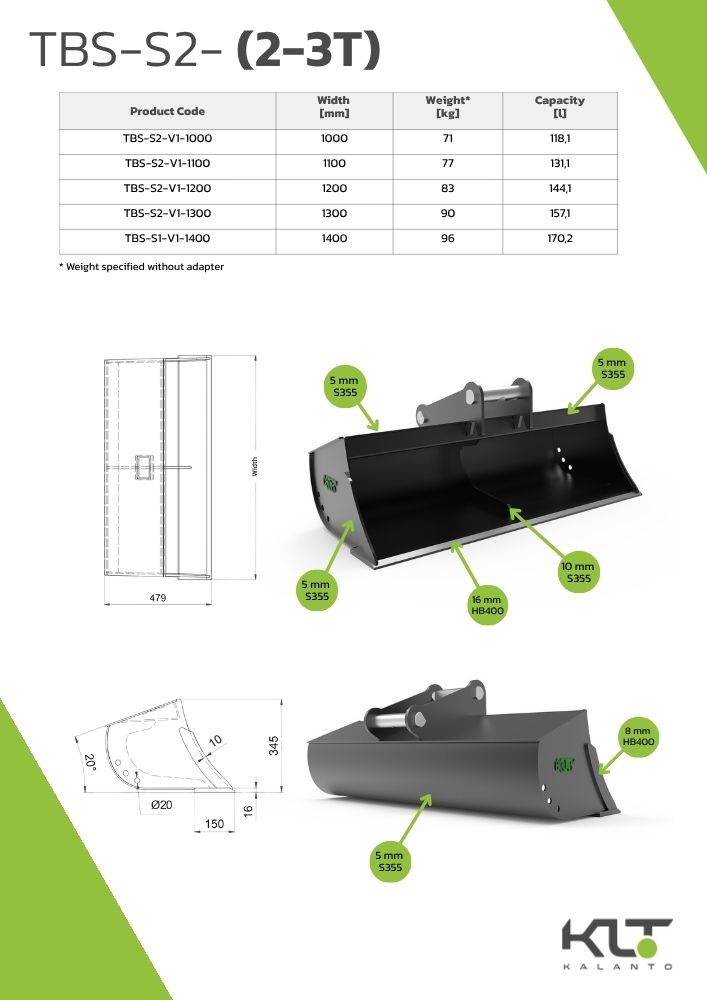

The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Internal reinforcement: | 10 mm | S355 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
TBS-S2-V1-1200-MS03SY
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 2-3t
- Adapter
- MS03SY
- Width
- 1200mm
- Weight without adapter
- 83kg
- Capacity
- 144,1 l
- Side/rear plate
- 5mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Cutting edge
- 16x150mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 5mm S355
- Bend plate
- 5mm S355
