- Class: 6-10 T
- Width: 1600
- Adapter: MS08SY
Kalanto
293 products
ZMG
886 products
Solid Hitch
117 products
Ray Attachments
41 products
Zixor
View brand
Product catalogues
View and download →
Product catalogues
View and download →
Reference: AD-WOP-MS08SY
Built for the MS08SY system, the AD-WOP-MS08SY is a durable base-plate-free adapter. It provides high precision during attachment and enables rapid tool coupling, significantly reducing retooling time.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] |
Pin spacing* [mm] |
|
|---|---|---|---|
| MS01 | 40 | 185 | 225 |
| MS01SY | 40 | 185 | 255 |
| MS03 | 50 | 205 | 283,6 |
| MS03SY | 50 | 205 | 322 |
| MS08 | 60 | 295 | 381 |
| MS08SY | 60 | 297 | 434 |
The main components are made of the following materials and thicknesses:
| MS01 | MS01SY | MS03 | MS03SY | MS08 | MS08SY | |||||||
| Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 10mm | S355 | 10mm | S355 | 12mm | S355 | 12mm | S355 | 16mm | S355 | 16mm | S355 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 200 | 215 |
| 1300 | 210 | 235 |
| 1400 | 220 | 254 |
| 1500 | 230 | 273 |
| 1600 | 240 | 293 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 8 mm | S355 |
| Type | ||
| Hydraulic connectors: | M18x1.5 |

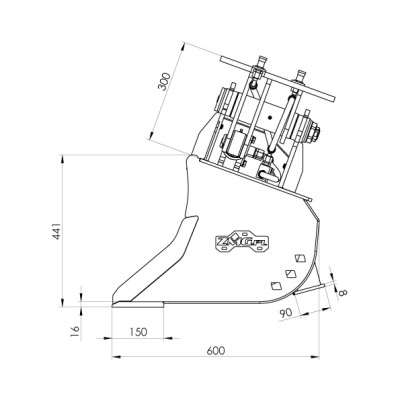

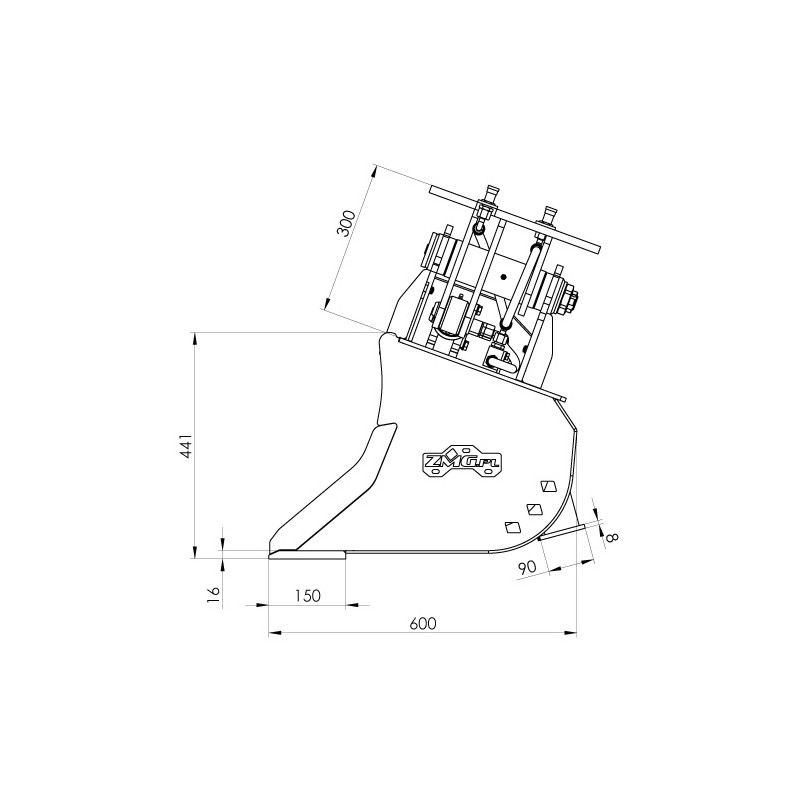

The LSH-ZMG4-1600-MS08SY hydraulic ditch cleaning bucket, 1600 mm wide, is a versatile tool for excavators in the 6–10 t class. Its hydraulically adjustable angle makes it ideal for slope profiling, cross-section shaping, and drainage ditch work. The hydraulic Lehnhoff MS08SY quick coupler enables operators to swap heavy attachments directly from the cab, eliminating manual coupling and improving safety. Solid steel frame and reliable hydraulic system ensure durability and consistent work results on every type of slope.

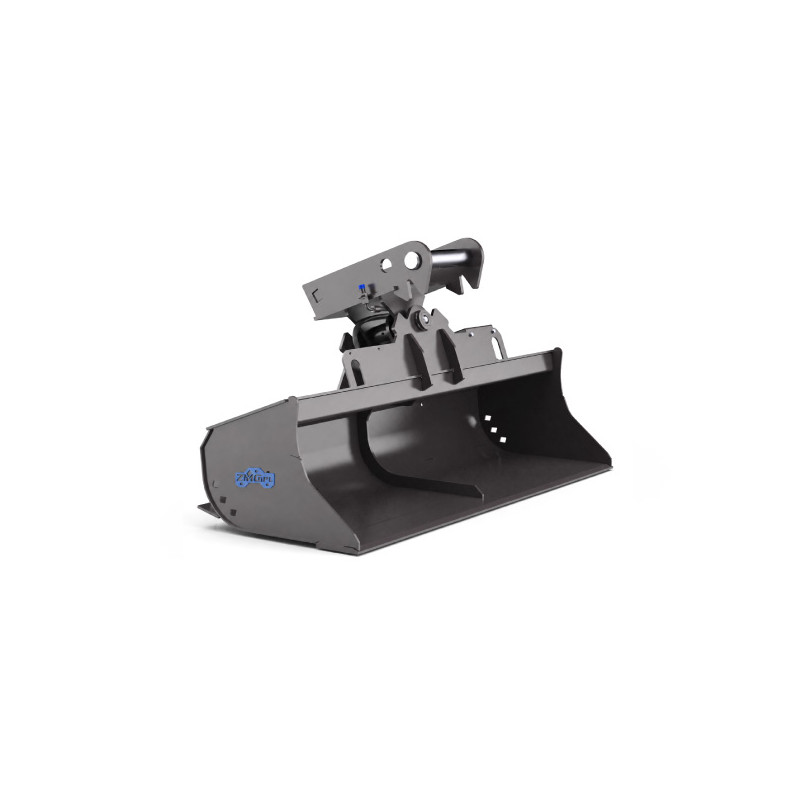

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Data sheet
