- Class: 3-4 T
- Width: 1400
- Adapter: with pins
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1000 | 67 | 111 |
| 1100 | 72 | 123 |
| 1200 | 78 | 135 |
| 1300 | 83 | 146 |
| 1400 | 89 | 158 |

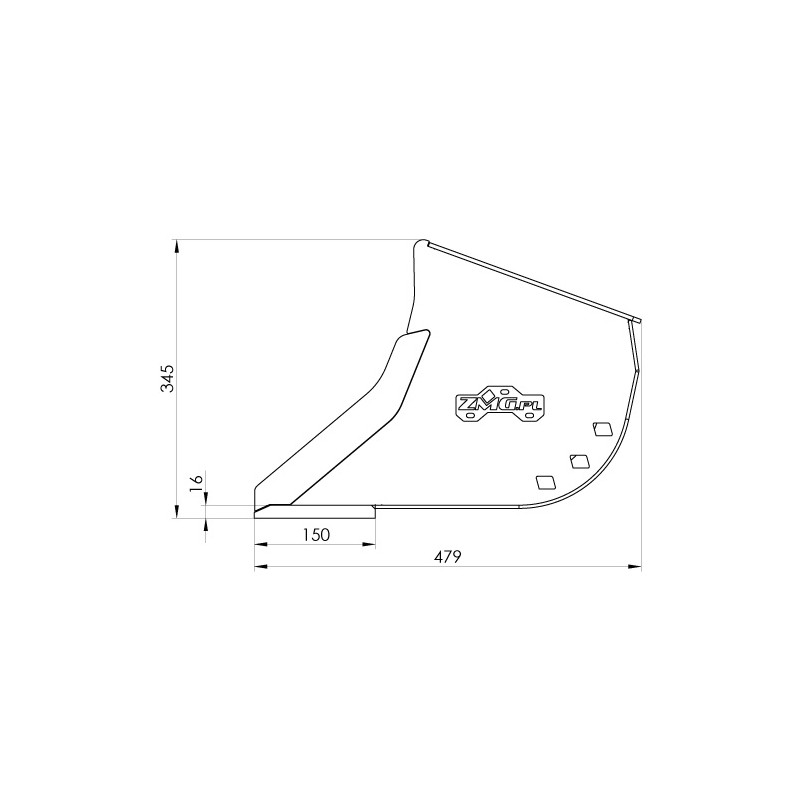

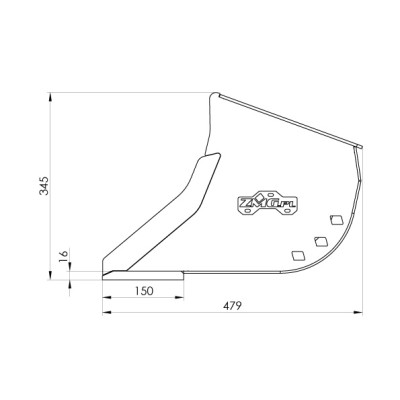

The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |

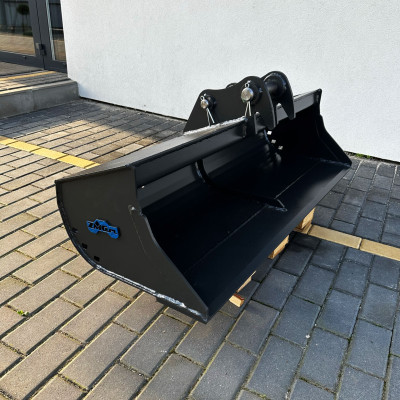

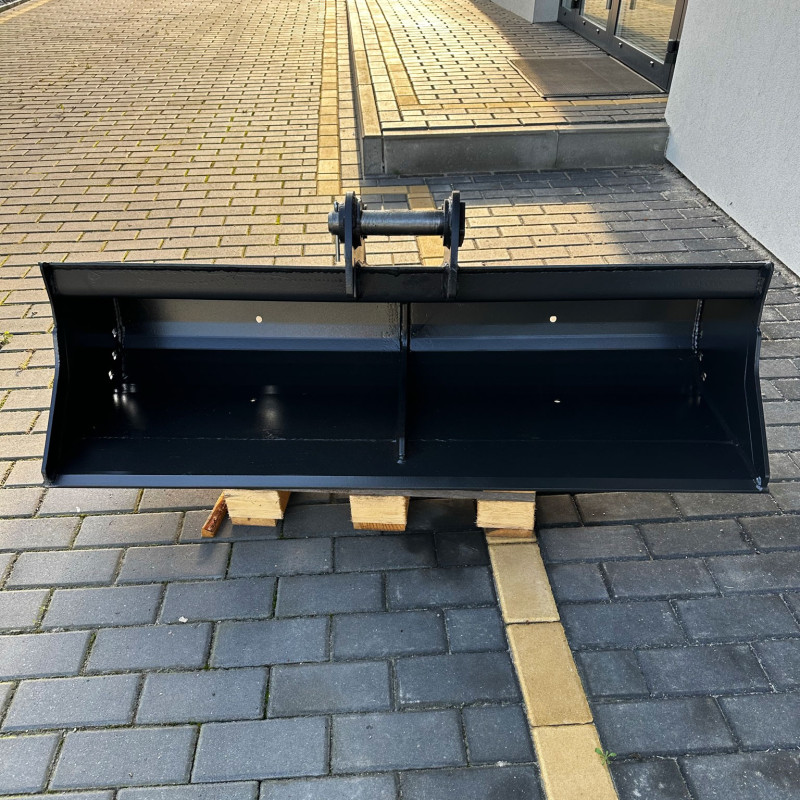

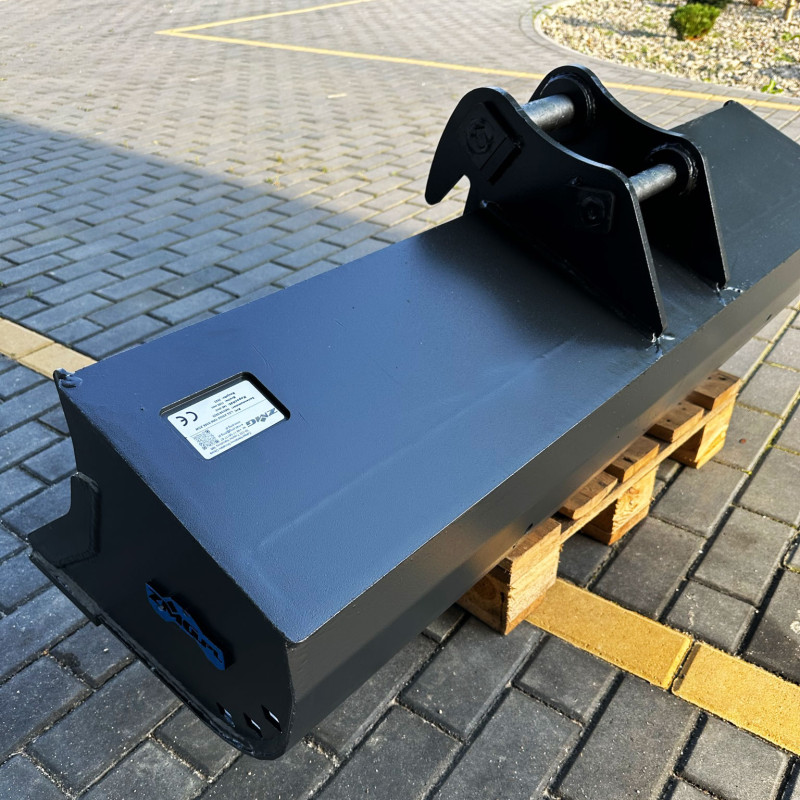

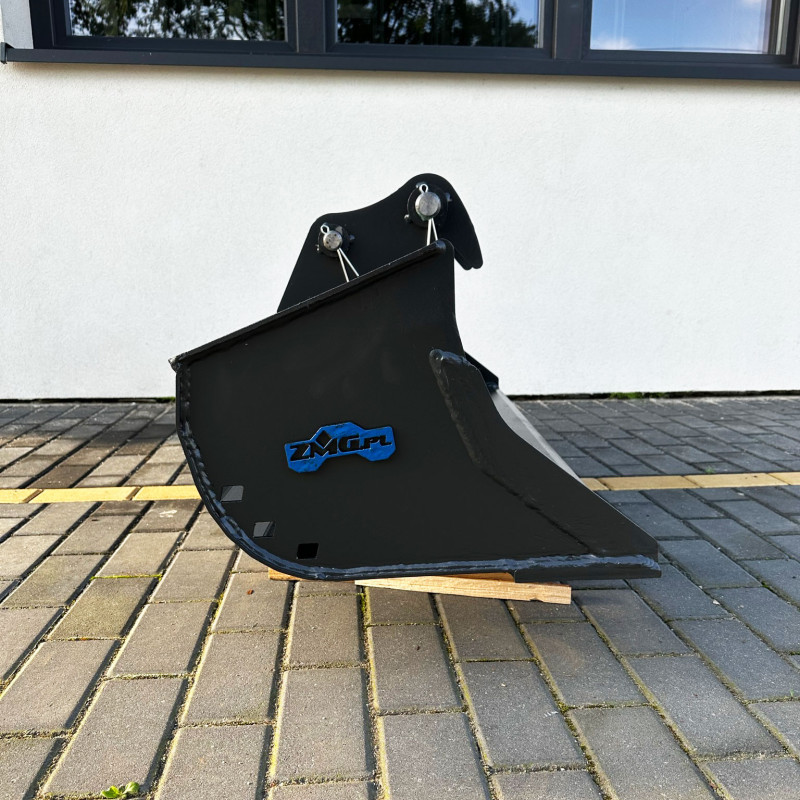

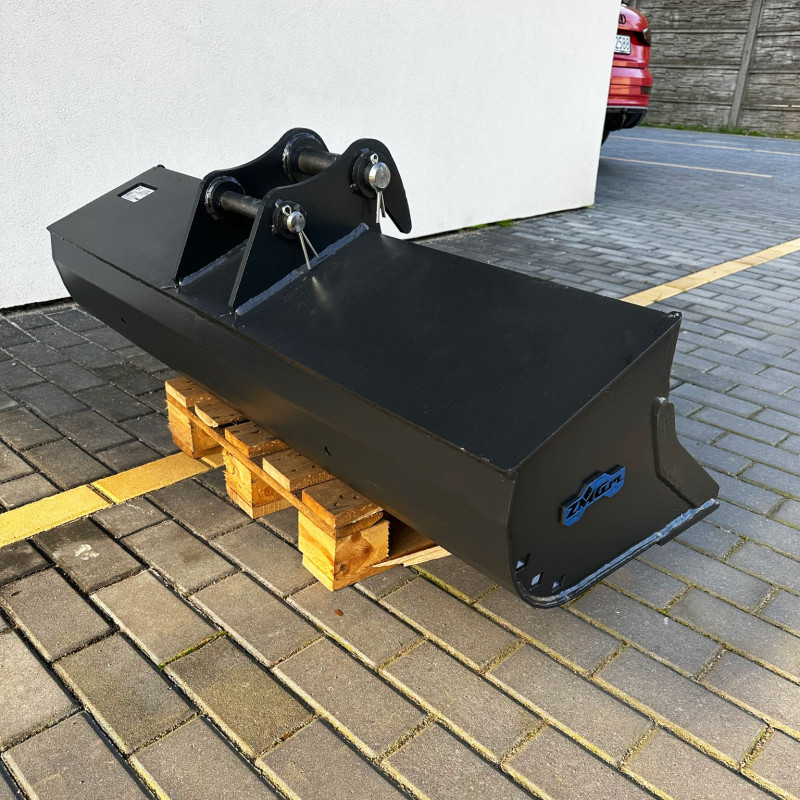

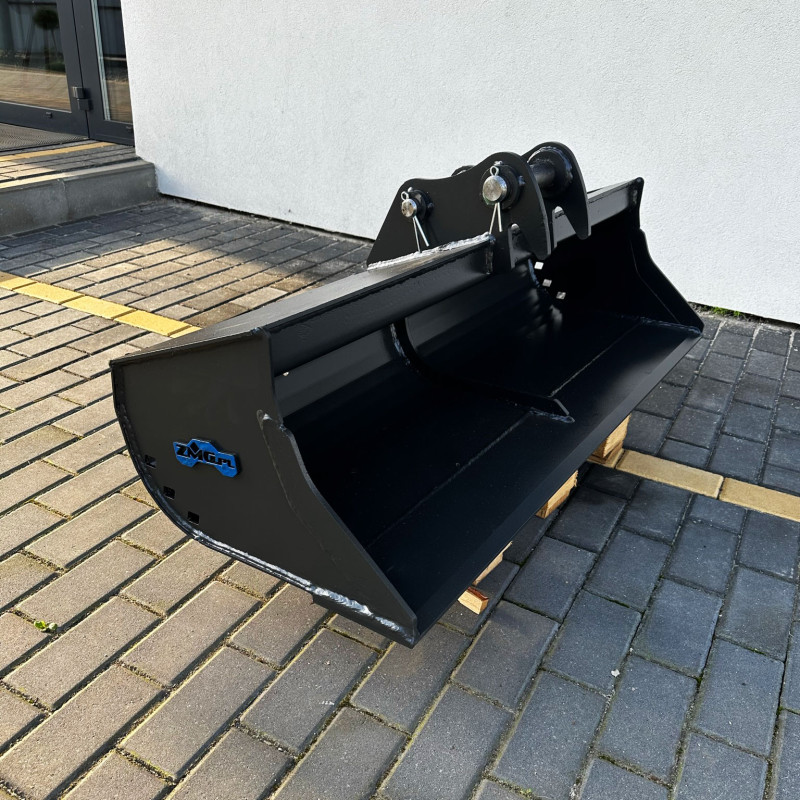

The LSS-ZMG2-1400-ZSW is a 1400 mm ditch cleaning bucket dedicated to excavators in the 2–4 t class. Its flat profile ensures precision in slope forming, terrain levelling, ditch cleaning, and road construction and maintenance work. Pin mounting provides a traditional, proven and robust connection between the attachment and the excavator arm, independent of any quick coupler system. High-quality S355 steel construction ensures the ditch cleaning bucket maintains accurate working profile geometry over an extended service life.

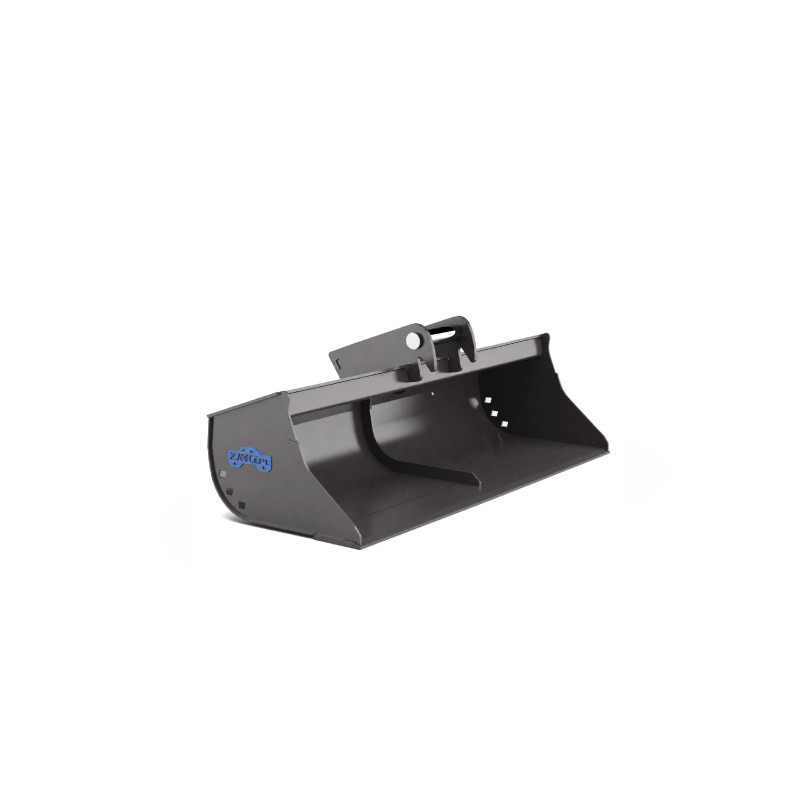

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
