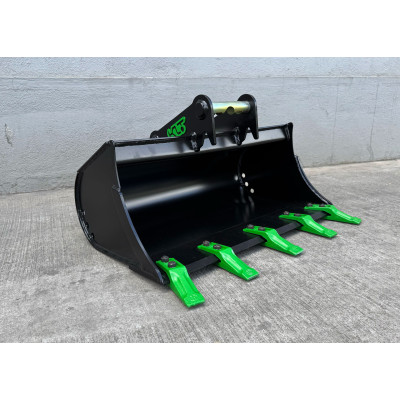

Digging bucket 800mm S30/150 class 0-2t
1,639.59 zł
Tax included
The DBS-S1-V1-800-S30/150 compact digging bucket is specially designed for mini excavators weighing 0–2 tons. Ideal for work in tight areas, it handles trenching, installation operations, and landscaping tasks with precision.
Its sturdy steel frame with reinforced construction ensures excellent resistance to mechanical stress. Thanks to the improved geometry, the bucket provides smooth scooping and dumping, supporting fast and efficient operation on any terrain.
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
|---|---|---|---|
| 250 | 21 | 25 | 2 |
| 300 | 25 | 31 | 3 |
| 400 | 30 | 43 | 3 |
| 500 | 37 | 55 | 4 |
| 600 | 42 | 67 | 4 |
| 800 | 53 | 91 | 5 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 4 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Type | ||

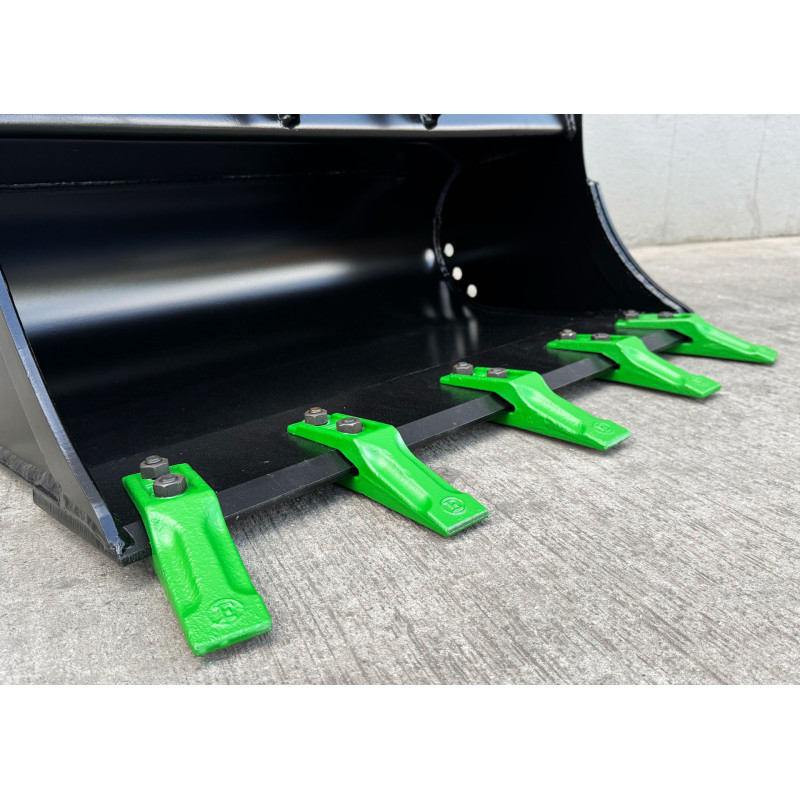

| Teeth: | E11.4 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
DBS-S1-V1-800-S30/150
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 0-2t
3-4t - Adapter
- S30/150
- Width
- 800mm
- Weight without adapter
- 53kg
- Capacity
- 91 l
- Side/rear plate
- 4mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 4mm S355
- Cutting edge
- 16x150mm HB400
- Top plate
- 5mm S355
- Bend plate
- 5mm S355
- Number of teeth
- 5pcs
- Type of teeth
- E11.4
