Class: 3-4 T
Width: 500
Adapter: MS03SY

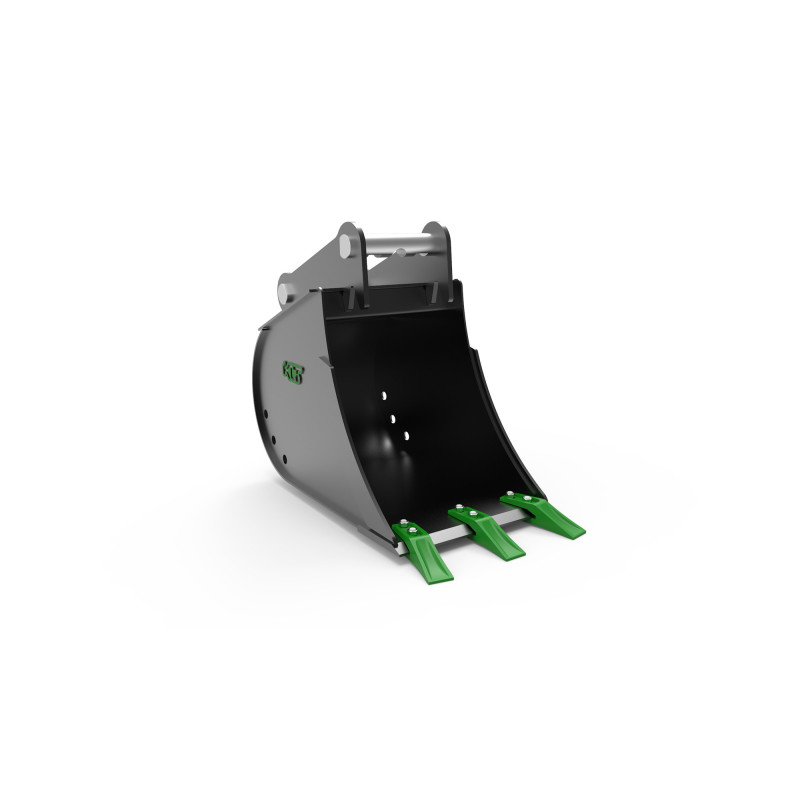

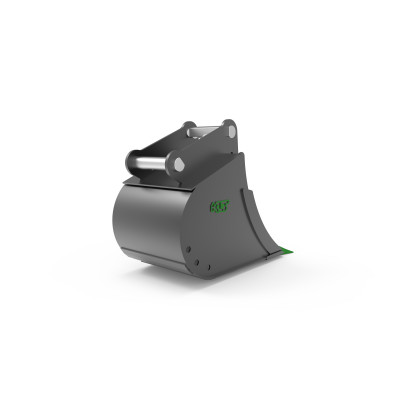

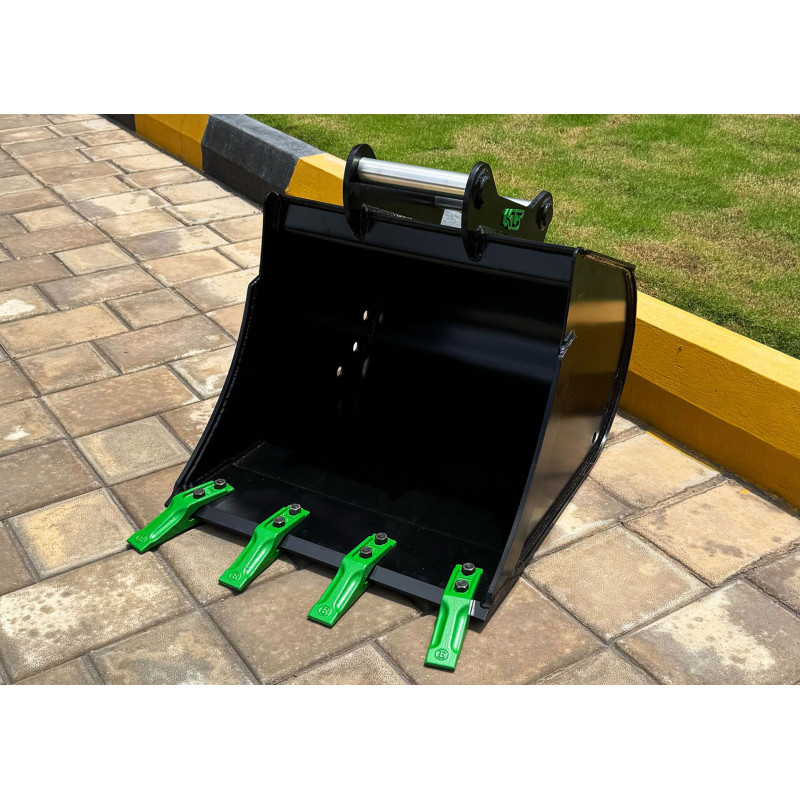

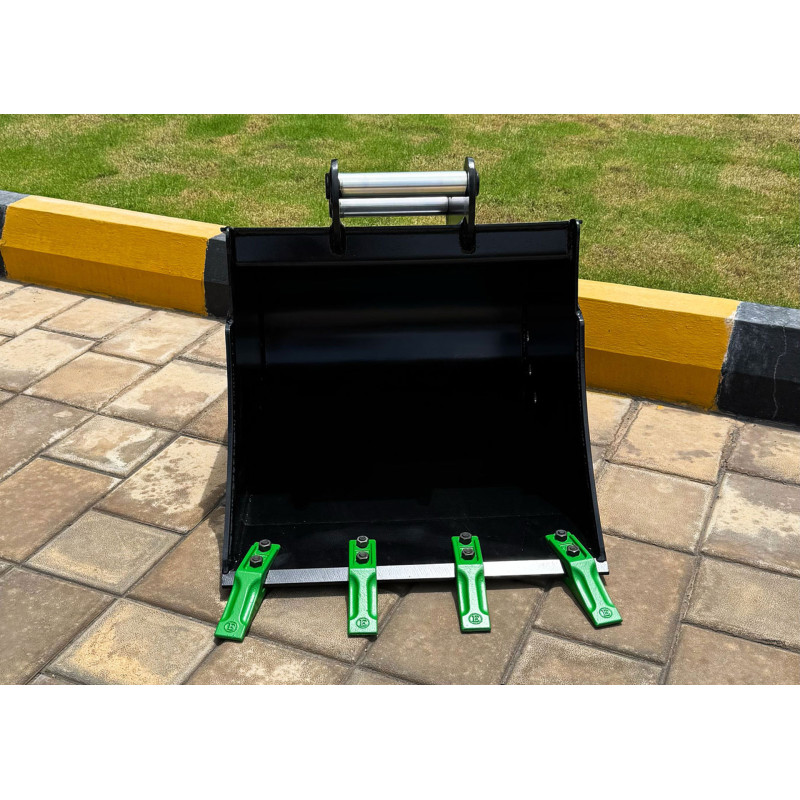

Digging bucket 500mm MS03SY class 3-4t

Name: Digging bucket 500mm MS03SY class 3-4t
Brand: Kalanto
SKU: DBS-S3-V1-500-MS03SY
Price: 1992.60 PLN
Availability: InStock

1,992.60 zł

Tax included

In stock Lead time: up to 48 hours

Other models:

Width

Adapter

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	16 x 150 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
Rear wear strips:	5 mm	HB400
	Type

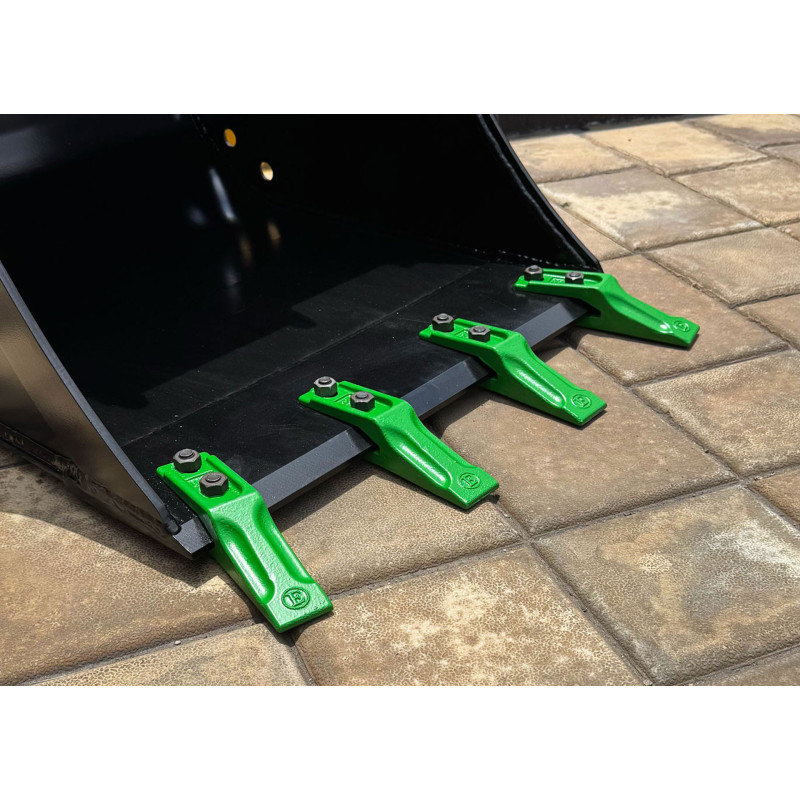

Teeth:	E11.4

Alternative products with a different lead time:

Designed for demanding terrain, the DBS-S3-V1-500-MS03SY bucket provides reliable digging performance for excavators in the 3–4 ton category. It is suitable for all types of construction groundwork, including trenching, foundation excavation and technical installations. Its ergonomic shape ensures smooth soil penetration and efficient material removal.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S3-V1-500-MS03SY

Data sheet

Lead time: up to 48 hours
For the machine: 3-4

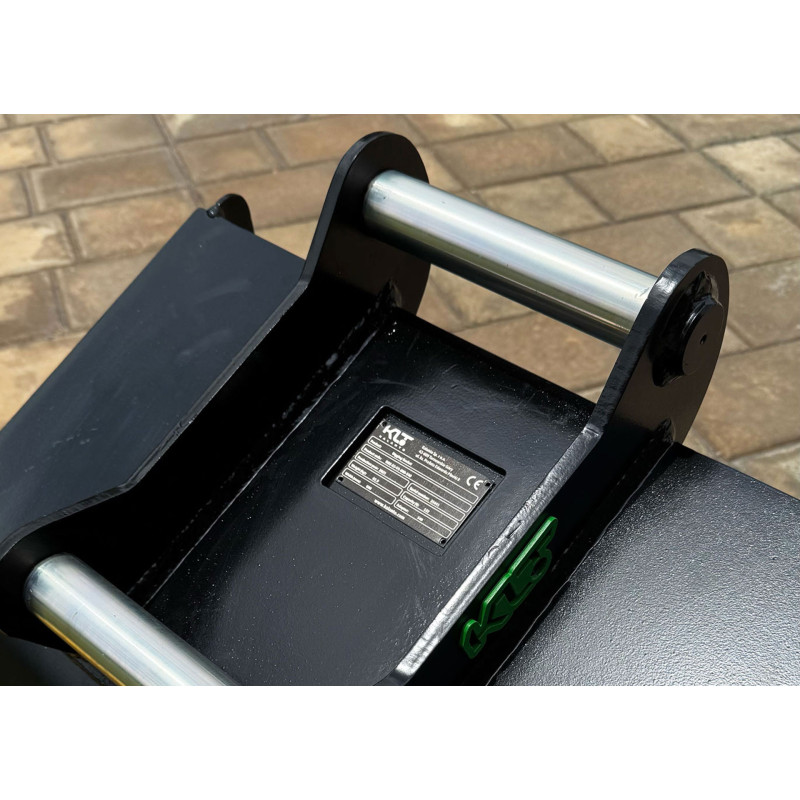

Adapter: MS03SY
Width: 500
Weight without adapter: 64
Capacity: 106
Side/rear plate: 5 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Rear wear strips: 5 HB400
Cutting edge: 16x150 HB400
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: E11.4

Specific References

EAN13: 5908159221008
