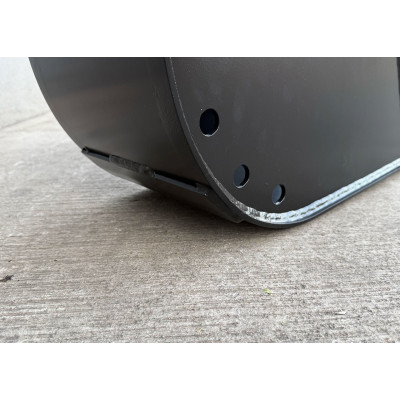

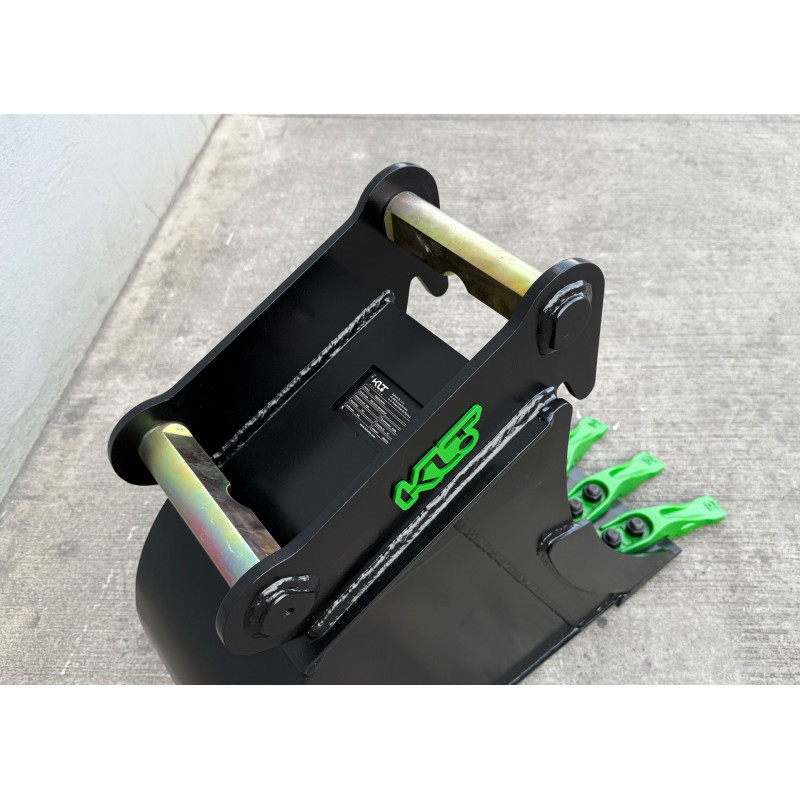

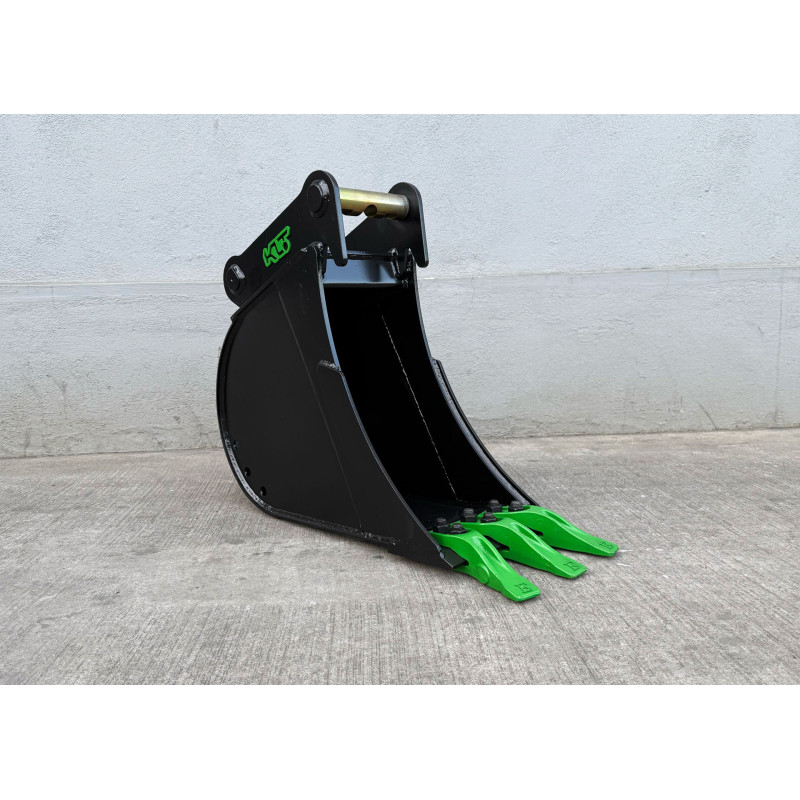

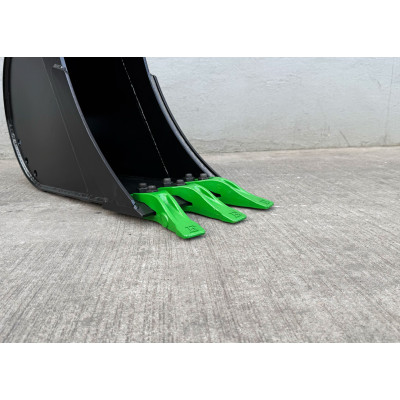

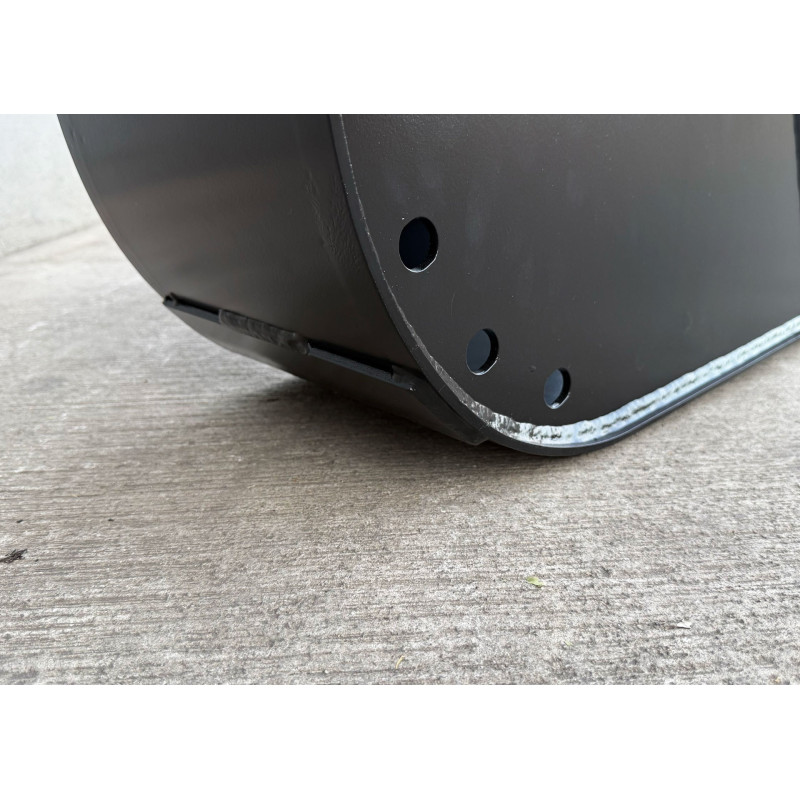

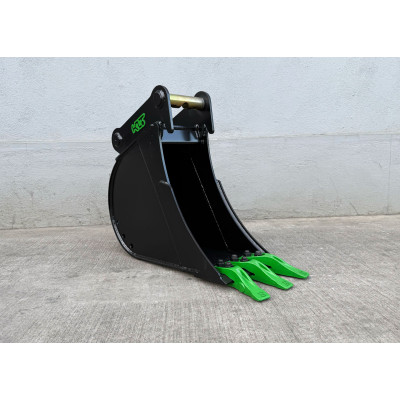

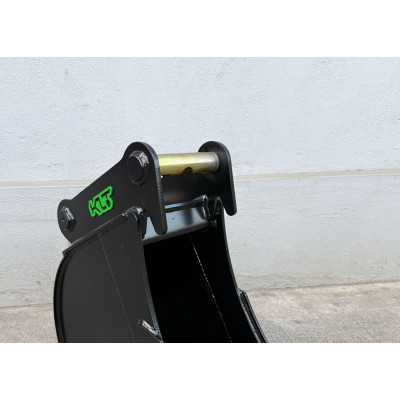

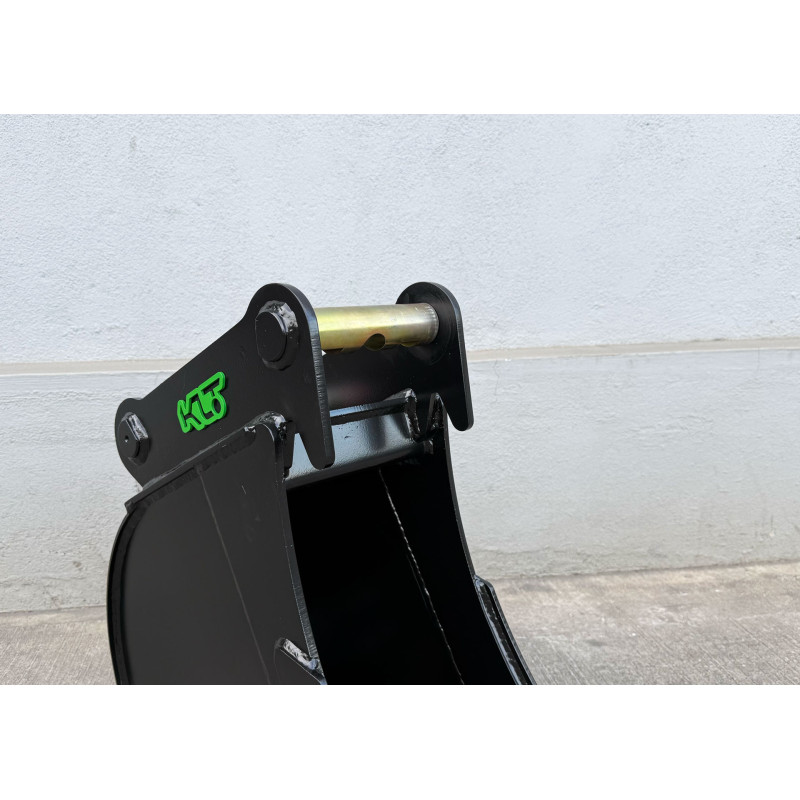

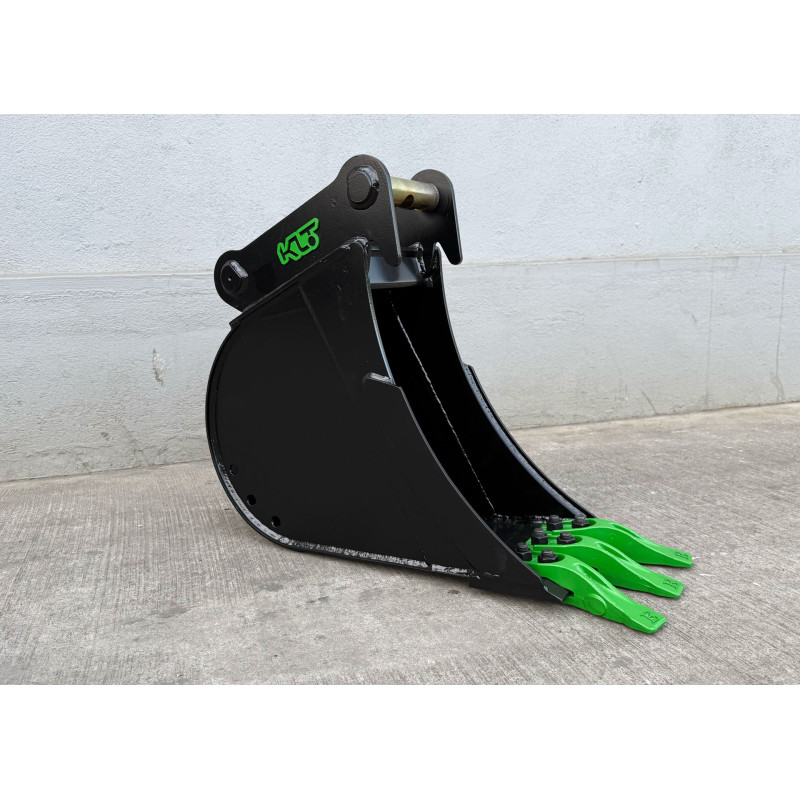

Digging bucket 400mm MS03SY class 4-6t
2,214.00 zł
Tax included
The DBS-S4-V1-400-MS03SY is a strong, high-capacity digging bucket made for 4–6 ton excavators operating in harsh terrain. It excels in deep trenching, foundation excavation, underground installation work and earthmoving activities across road, civil and industrial construction sectors.Its optimized geometry ensures smooth digging, precise handling and increased operator comfort.

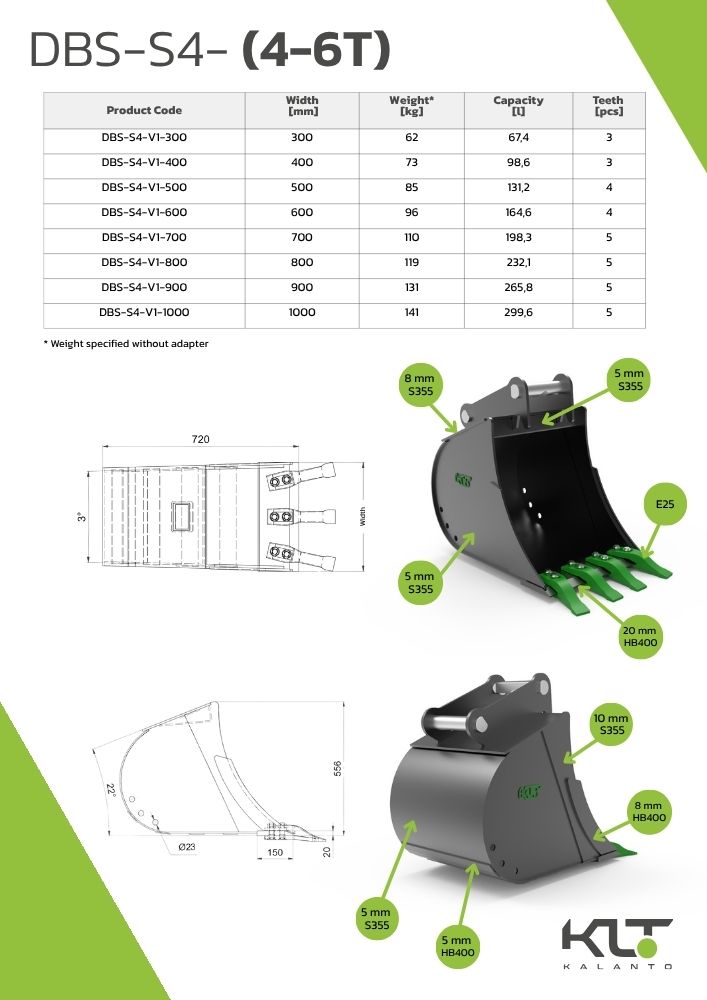

| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 300 | 62 | 68 | 3 |
| 400 | 73 | 99 | 3 |
| 500 | 85 | 132 | 4 |
| 600 | 96 | 165 | 4 |
| 800 | 119 | 233 | 5 |
| 1000 | 141 | 300 | 5 |

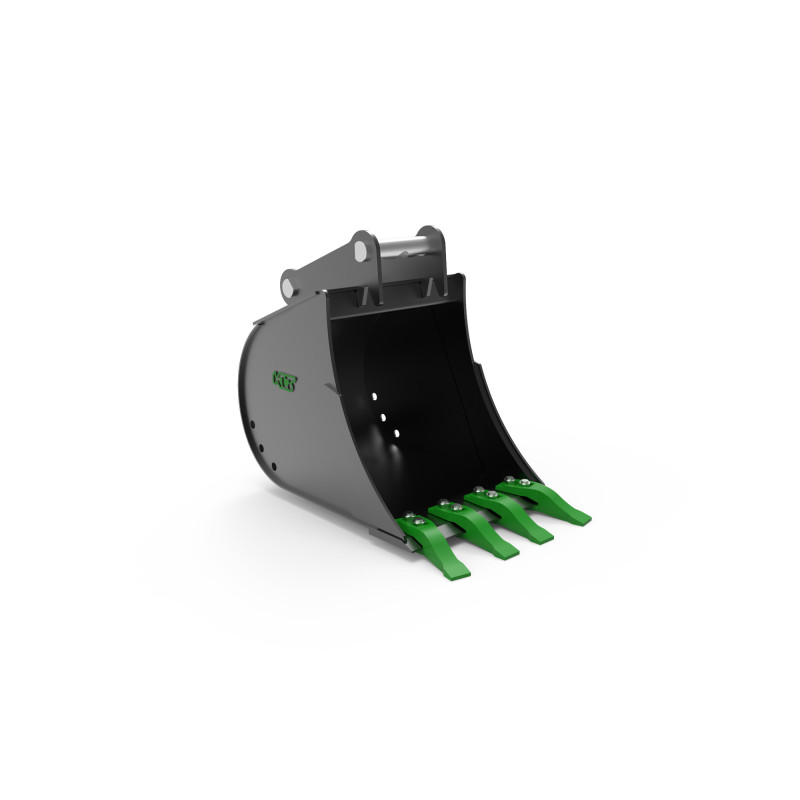

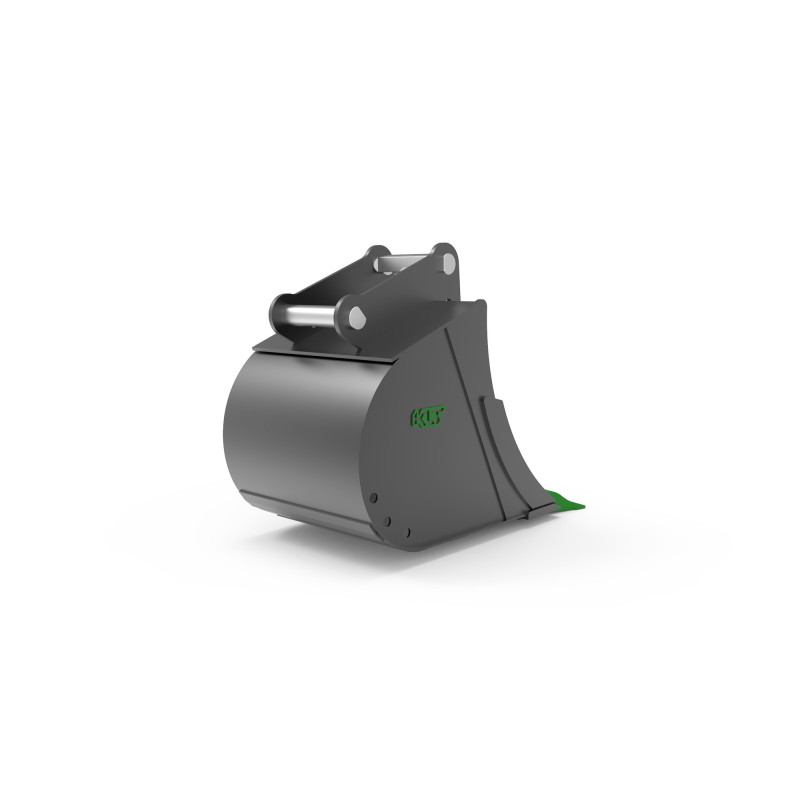

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Front side plate: | 10mm | S355 |
| Rear side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 20 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Rear wear strips: | 5 mm | HB400 |
| Type | ||
| Teeth: | E25 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
DBS-S4-V1-400-MS03SY
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 4-5t
5-6t - Adapter
- MS03SY
- Width
- 400mm
- Weight without adapter
- 73kg
- Capacity
- 99 l
- Side/rear plate
- 5mm S355
- Front side plate
- 10mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Rear wear strips
- 5mm HB400
- Cutting edge
- 20x150mm HB400
- Top plate
- 8mm S355
- Bend plate
- 5mm S355
- Number of teeth
- 3pcs
- Type of teeth
- E25
