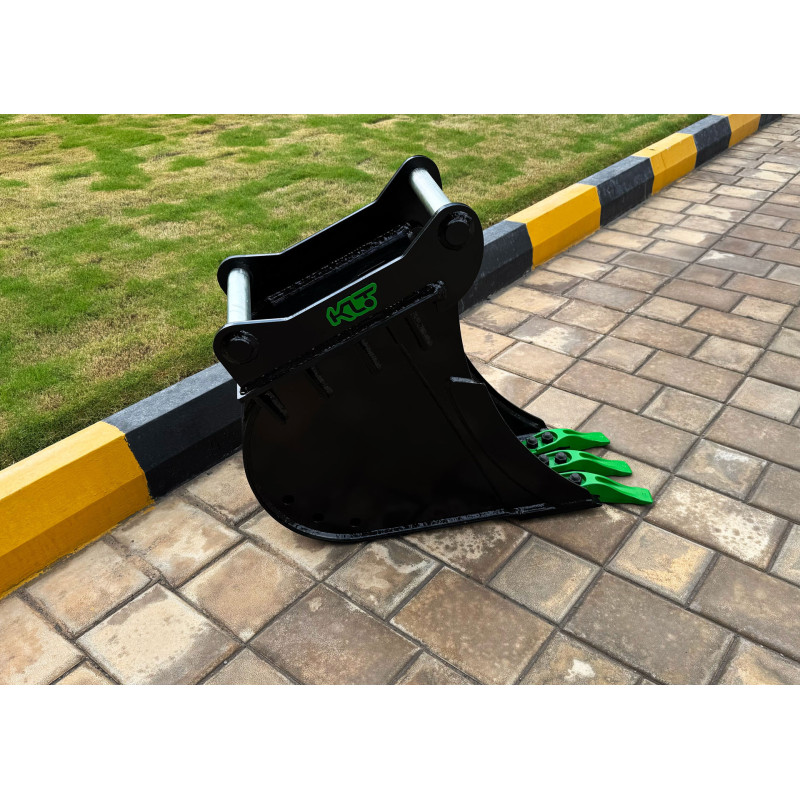

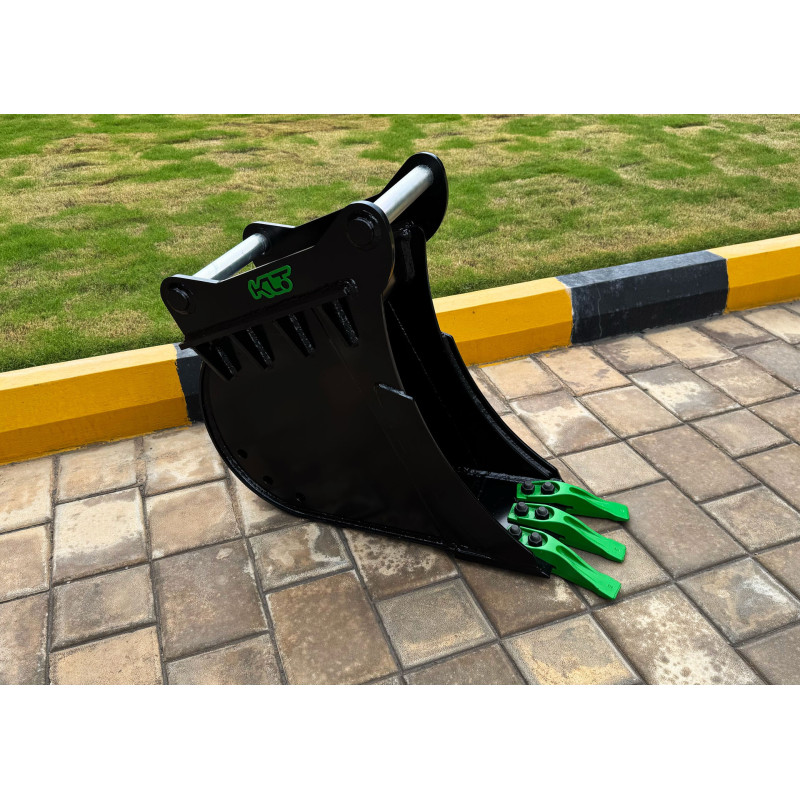

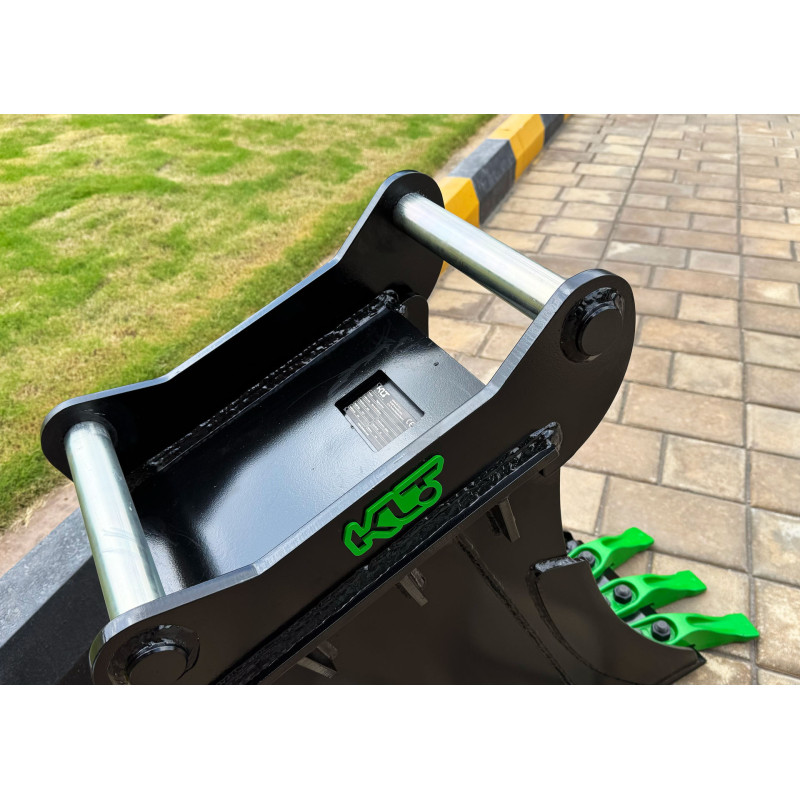

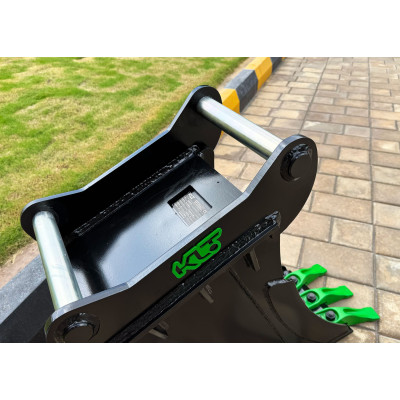

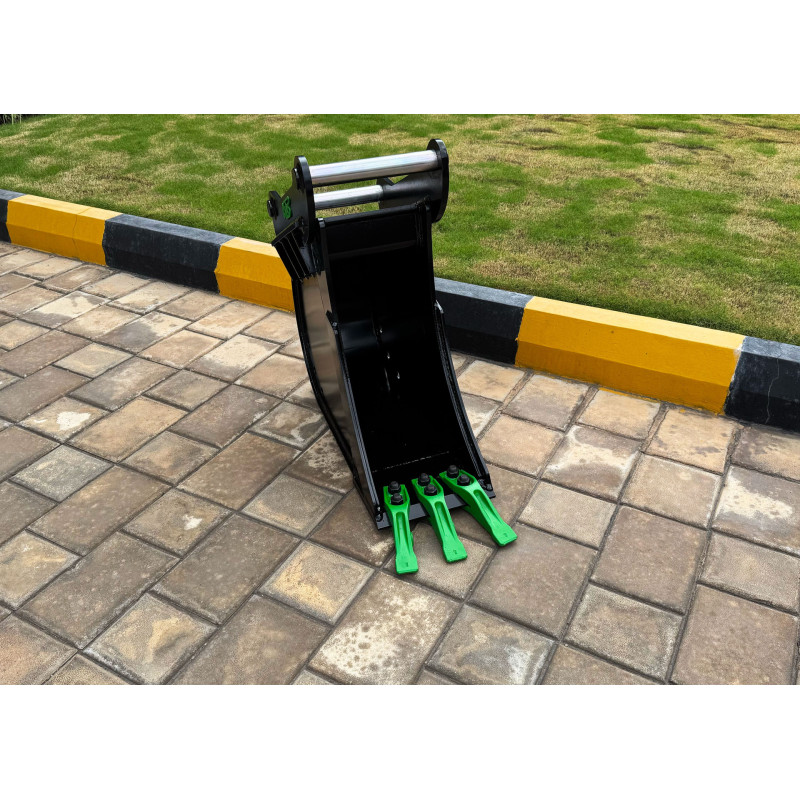

Digging bucket 400mm S45 class 6-9t
2,851.14 zł
Tax included
DBS-S5-V1-400-S45 is a professional bucket designed for heavy-duty missions. It is ideal for 6–9 ton excavators used in large-scale road construction, deep installation trenches and ground preparation for major projects.
Its reinforced structure guarantees resistance to overloads and long, trouble-free service life.
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 300 | 89 | 78 | 3 |
| 400 | 100 | 115 | 3 |
| 500 | 116 | 154 | 4 |
| 600 | 131 | 193 | 4 |
| 800 | 164 | 274 | 5 |
| 1000 | 195 | 356 | 5 |

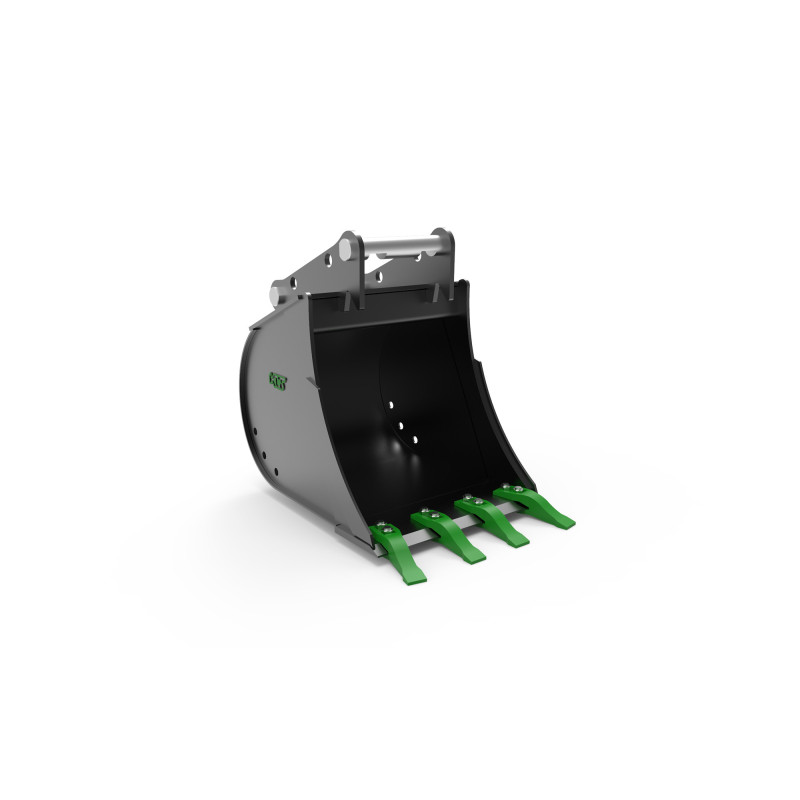

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Front side plate: | 12mm | S355 |
| Rear side plate: | 6 mm | S355 |
| Roll sheet: | 6 mm | S355 |
| Cutting edge: | 20 x 200 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 12 mm | S355 |
| Bend plate: | 10 mm | S355 |
| Rear wear strips: | 5 mm | HB400 |
| Type | ||
| Teeth: | E25 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
DBS-S5-V1-400-S45
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 6-7t
7-8t
8-9t - Adapter
- S45
- Width
- 400mm
- Weight without adapter
- 100kg
- Capacity
- 115 l
- Side/rear plate
- 6mm S355
- Front side plate
- 12mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 6mm S355
- Rear wear strips
- 5mm HB400
- Cutting edge
- 20x200mm HB400
- Top plate
- 12mm S355
- Bend plate
- 10mm S355
- Number of teeth
- 3pcs
- Type of teeth
- E25
